Description
Product Overview

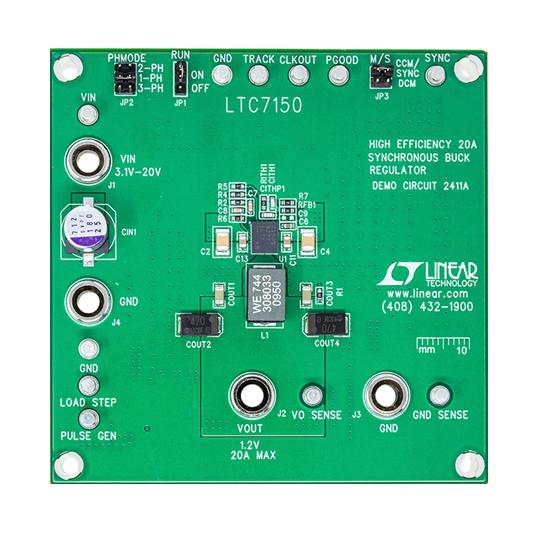

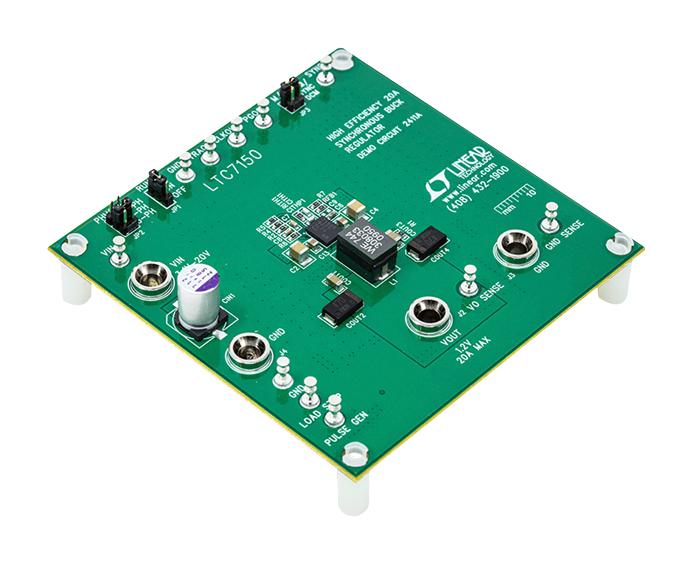

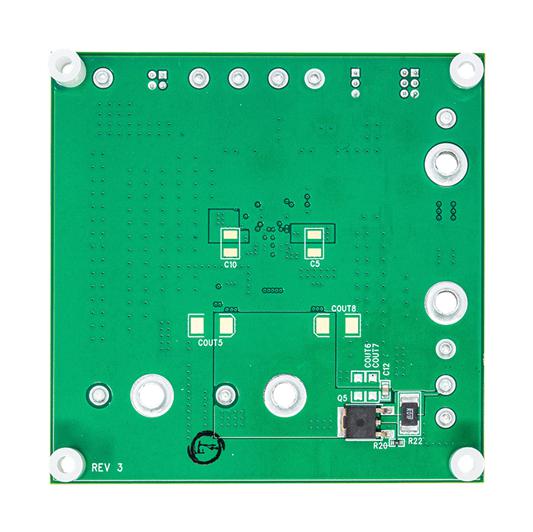

DC2411A demonstration circuit is a high efficiency synchronous buck regulator with a 3.1V to 20V input range. It can supply 20A maximum load current at 1.2V output. The demo board features the LTC®7150S regulator. No external MOSFETs nor external current sense resistor are required. It uses a phase-lockable controlled on-time constant-frequency, current mode architecture, ideal for high step-down ratio applications. The operating frequency is programmable from 400KHz to 3MHz with an external resistor (R5). The LTC7150S is housed in a 6mm × 5mm × 1.3mm 42-Lead BGA package. The light load operation mode of the converter is determined with the Mode/Sync pin. Use the JP3 jumper to select discontinuous mode (DCM), forced continuous mode (CCM), or to synchronize to an external clock.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2411A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14255.69 |
| 3-5 | ₹ 14110.22 |
| 5-10 | ₹ 13819.29 |
| 10+ | ₹ 13528.36 |
Bulk discount will be automatically applied during checkout based on quantity.
