Product Overview

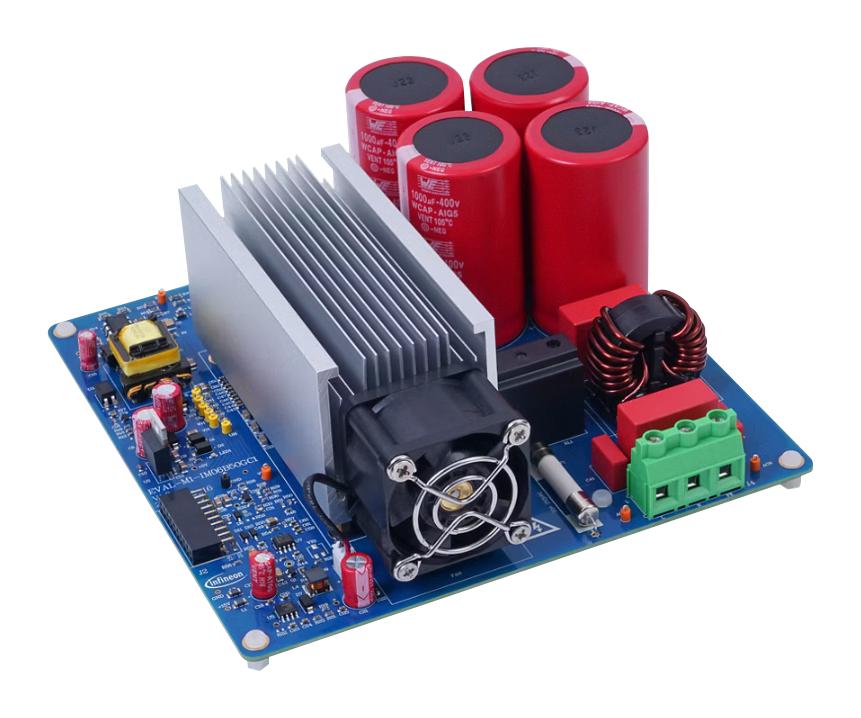

EVALM1IM06B50TOBO1 is an evaluation board for CIPOS™ Mini IPM, features 600V IM06B50GC1 for motor drive applications. This evaluation board is a complete power stage, powered by IM06B50GC1 CIPOS™ Mini 600V 50A, equipped with MADK™ M1 20-pin interface connector to be used with the matching iMOTION™ MADK control boards. It is recommended to use in the systems based on 100- 230V AC mains voltage up to 5000W inverter board output power with active cooling. Suitable for industrial motor drives and controls and heating ventilation and air conditioning (HVAC) applications.
- Ready to use three-phase inverter
- Output power up to 5000W
- On-board EMI filter
- Pass EMI standards EN55032
- Input voltage 85 to 265V AC
- Maximum 20A input and output current, maximum 3000W motor power output, on-board EMI filter
- Current sensing operational amplifier (OPA) with single shunt
- Auxiliary power supply with 15V, 5V
- Overcurrent hardware protection & over temperature protection
- Sensing of DC-link voltage, thermistor output, PCB is 166 x 166mm, two layers with 2 oz. copper
Product details
| Application Sub Type |
Intelligent Power Module |
| Kit Application Type |
Power Management - Motor Control |
| Kit Contents |
Evaluation Board IM06B50GC1 |
| SVHC |
To Be Advised |
| Silicon Manufacturer |
Infineon |
| Silicon Core Number |
IM06B50GC1 |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
EVALM1IM06B50TOBO1 |
| Quantity |
Each |
| Technical Data Sheet (3.20MB) EN |
View or download |
