Product Overview

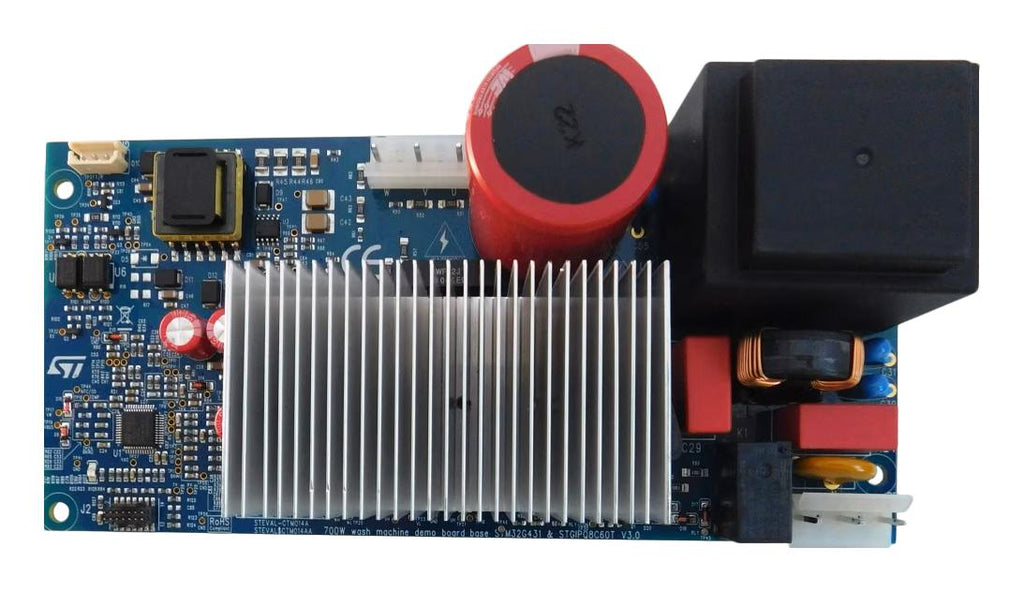

STEVAL-CTM014A is a 700W reference design designed to drive a 3-phase brushless DC motor up to 700W typically of a washing machine appliance. The circuit is composed of 4 parts: control, compressor drive, auxiliary power supply circuit and communication circuit. The control uses STM32G431CB as main control chip mainly used to control motors. It also includes current, voltage, temperature sampling, the realization of communication, overcurrent protection, OVP, OTP. The compressor drive part includes a 3-phase inverter circuit, lower bridge current sampling of IPM (current sampling is realized by STM32G431CB internal integrated op-amp). The three-phase inverter bridge adopts STGIPQ8C60T-HZ intelligent power module. The STGIPQ8C60T-HZ includes six IGBTs and gate drive circuits, as well as NTC temperature sampling and overcurrent comparison circuits. The auxiliary power supply circuit includes transformer, switching power supply controller, power switch tube, rectifier diode, etc.
- Compliant with new STM32 ZEST software algorithm
- Input voltage: AC 230V / 50Hz
- Inverter switch frequency is 16kHz
- DC bus overvoltage protection
- Overcurrent protection in the intelligent power module (IPM)
- Over temperature protection in the IPM
- Back electromotive force sampling of motor
- STLINK-V3 connection for debug and configuration
- Isolated one-wire half-duplex serial communication
- STM32G431 based control to perform motor control algorithms, current, voltage, temperature sampling
Product details
| Application Sub Type |
3 Phase BLDC Motor Controller |
| Kit Application Type |
Power Management - Motor Control |
| Kit Contents |
Evaluation Board STM32G431CB |
| SVHC |
No SVHC (25-Jun-2025) |
| Silicon Manufacturer |
STMicroelectronics |
| Silicon Core Number |
STM32G431CB |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
STEVAL-CTM014A |
| Quantity |
Each |
| Technical Data Sheet (1.56MB) EN |
View or download |
