Description
Product Overview
BTS70902EPLXUMA1 is a PROFET� +2 12V smart high-side power switch. This device provides protection functions and diagnosis capabilities. The device offers current limitation and has a capacitive load switching mode implemented to charge capacitors. It is integrated in SMART7 technology. Potential applications include replaces electromechanical relays, fuses and discrete circuits, protection of system supply, main switch for ECU power supply, suitable for driving resistive, inductive and capacitive loads, suitable for driving heating elements.
- High-side switch with diagnosis and embedded protection
- Part of PROFET�+2 12V family, switch ON capability while inverse current condition (InverseON)
- 28V maximum operating voltage, 2A nominal load current (TA = 85°C)
- Capacitive load switching mode
- Qualified for automotive applications, 90mohm typical ON-state resistance (TJ = 25°C)
- Product validation according to AEC-Q100, Grade 1
- Proportional load current sense, open load in ON and OFF state
- Short circuit to ground and battery, overcurrent limitation, overvoltage protection
- Absolute and dynamic temperature protection with restart control

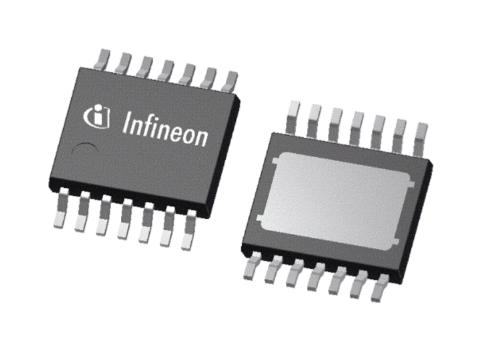

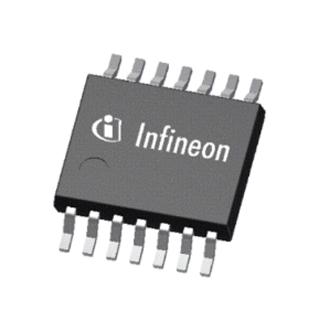

- PG-TSDSO-14 package, junction temperature range from -40 to +150°C
Product details
Other details
| Brand | INFINEON |
| Part Number | BTS70902EPLXUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
