Description
Product Overview

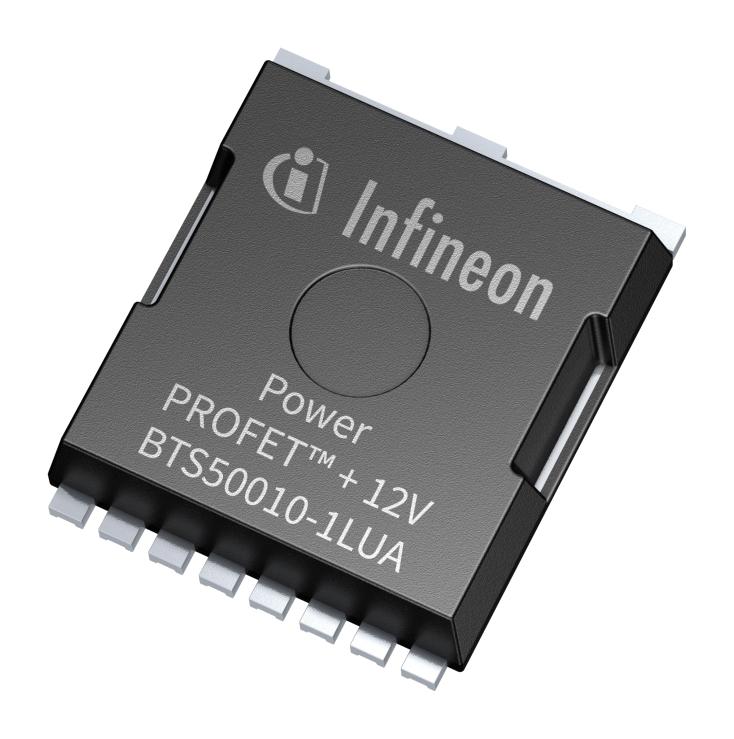

BTS500101LUAAUMA1 is a Power PROFET� + 12V smart high-side power switch. It contains Reverse ON functionality. It is especially designed to drive high current loads, for applications like heaters, glow plugs, fans and pumps. The PRO-SIL� ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13. Potential applications include suitable for resistive, inductive and capacitive loads, replaces electromechanical relays, fuses and discrete circuits, most suitable for application with high current loads, such as heating system, fan and pump, PWM applications with low frequency.
- One channel device, low stand-by current
- Reverse ON protection for low power dissipation in reverse battery condition
- Ground loss protection, electrostatic discharge protection (ESD)
- Optimized electromagnetic compatibility (EMC)
- Compatible to cranking pulses, integrated diagnostic functions
- Integrated protection functions
- Qualified for automotive applications, product validation according to AEC-Q100 grade 1
- Proportional load current sense, open load detection in on and off state
- Diagnosis enable pin, latched status signal after short circuit or overtemperature detection

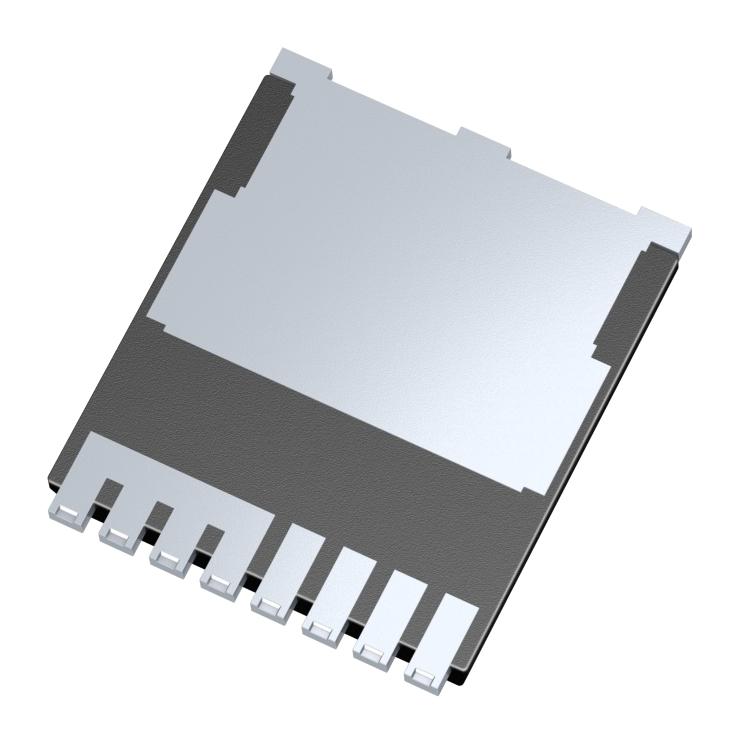

- PG-HSOF-8 package, junction temperature range from -40 to 150°C
Product details
Other details
| Brand | INFINEON |
| Part Number | BTS500101LUAAUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 685.44 |
| 3-5 | ₹ 678.45 |
| 5-10 | ₹ 664.46 |
| 10+ | ₹ 650.47 |
Bulk discount will be automatically applied during checkout based on quantity.
