Description
Lex Products PH050Z3-NMW-26CC1DF Overview

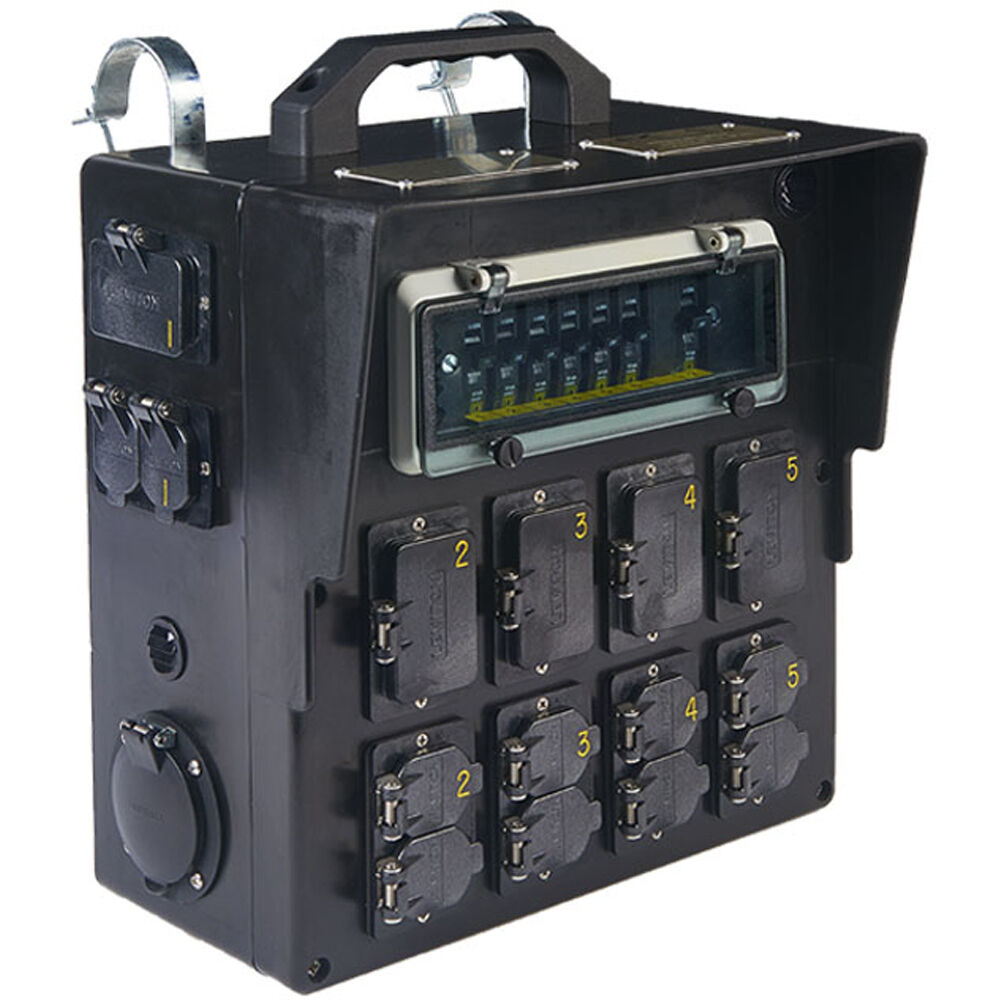

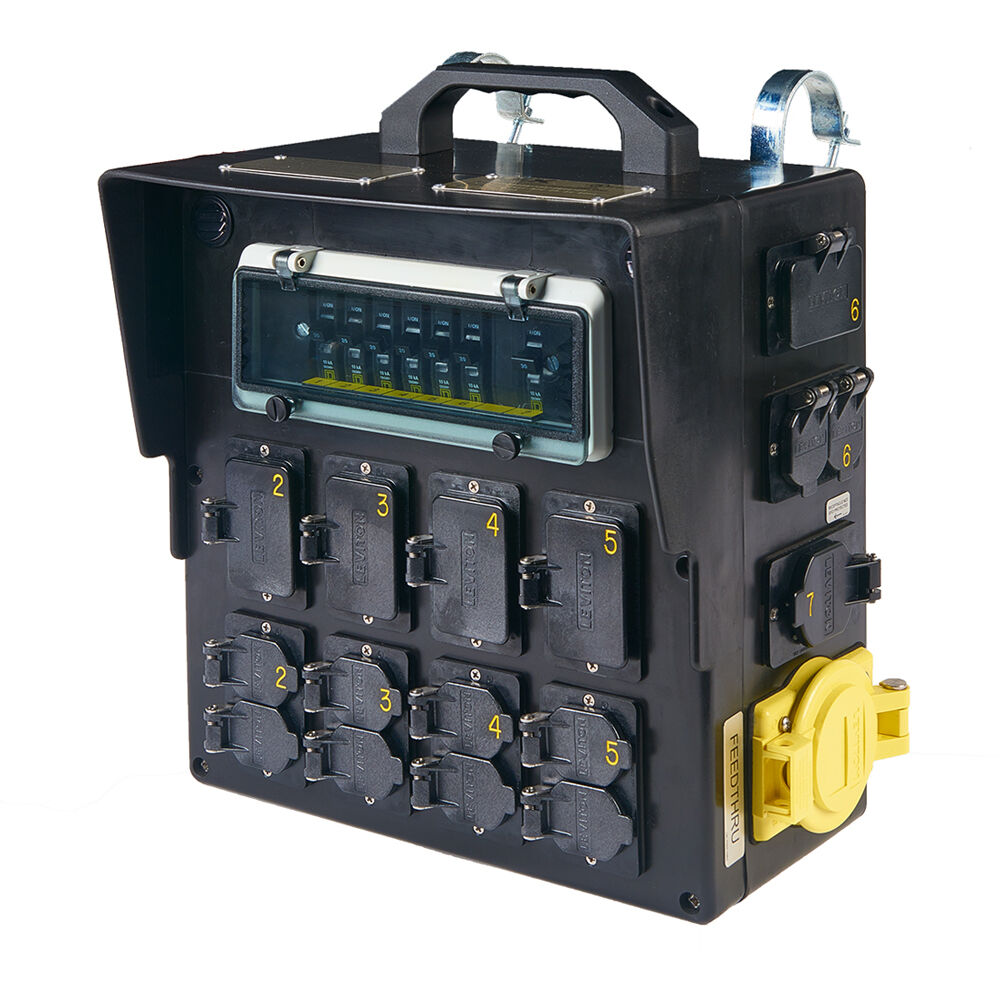

Able to be employed free-standing or hanging in use or storage, the Lex Products Hanging Spider Box has three J-hangers that allow it to fit on pipes and structures up to 2" in diameter. The heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact, and corrosion. Lex employs open-neutral GFCI protection with an LED beacon to indicate device status to enhance safety. A lid overhang protects it from weather elements, while front panel covers prevent damage when dropped. Breakers are located under a see-through window, and an integrated top handle is incorporated for easy lifting.
Items Included
- Lex Products Hanging Spider Box
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lex Products PH050Z3-NMW-26CC1DF Specs
| Rating |
50 A, 2 Phase, 125/250 VAC
|
| Inputs/Outputs |
1x California Style AC Power Input
1x California Style AC Power Thru 12x NEMA 5-20 AC Power Output (20 A per Circuit, 6 Circuits) 1x NEMA L6-30 AC Power Output |
| Overcurrent Protection |
6x 20 A Circuit Breaker
1x 30 A Circuit Breaker |
| Mounting |
Mounting Bracket
|
| Feed Thru |
Yes
|
| Environmental Rating |
NEMA Type 3R (Outdoor Use)
|
| Certifications |
cETLus
|
| Materials |
Rubber
|
| Dimensions |
14.25 x 13.25 x 11.5" / 36.2 x 33.66 x 29.2 cm
|
| Weight |
29 lb / 13.2 kg
|
