Description
Product Overview

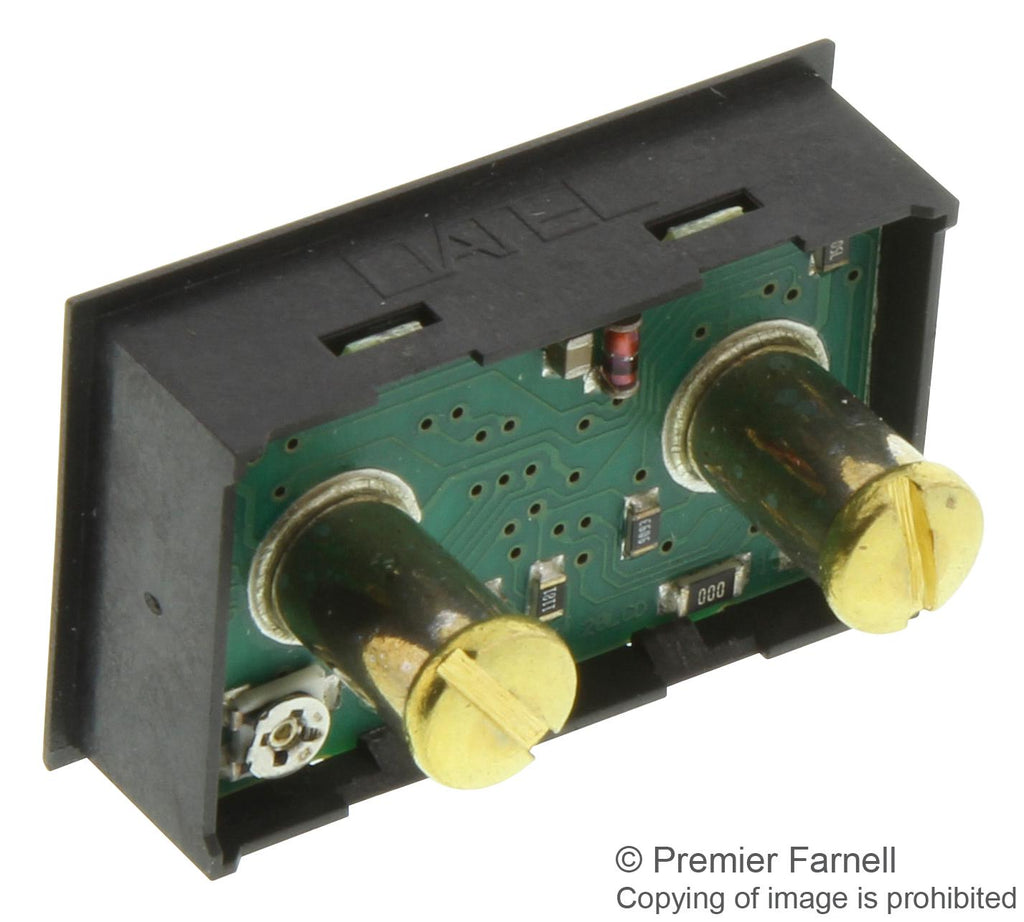

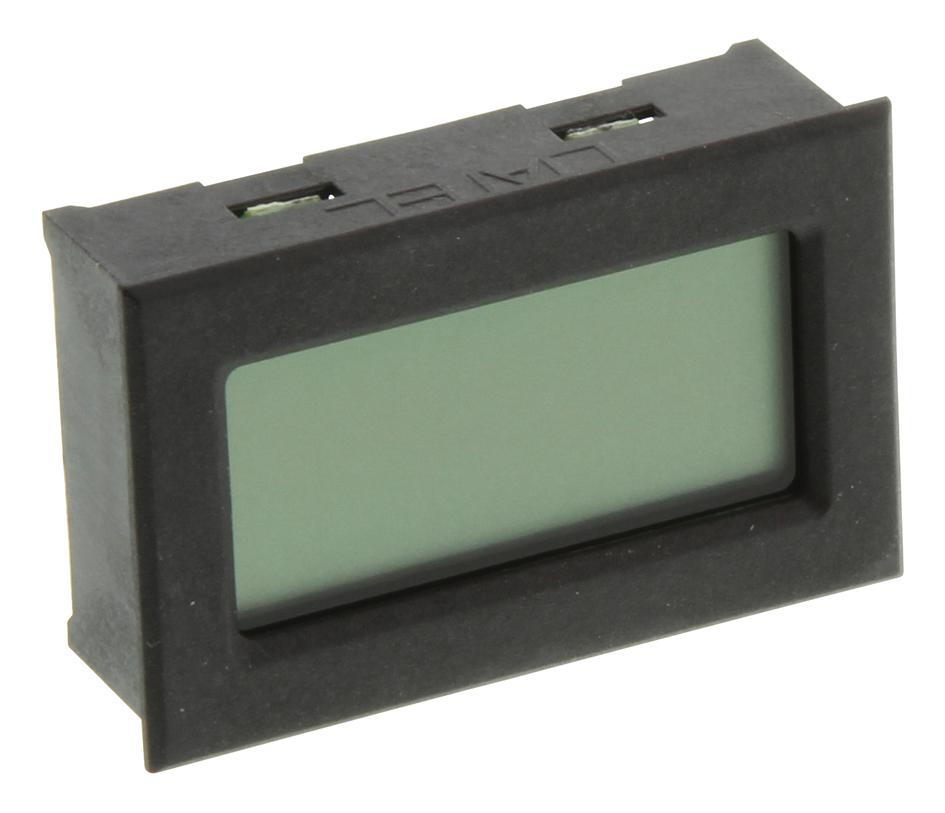

The DMS-20LCD-1-DCM-C is a Self-powered LCD Display 2-wire DC Voltage Monitor with built-in VDC annunciator, can be easily read from 10ft. Apply power to the two rear terminals and the unit is operational. It utilizes a precision analogue-to-digital converter and ultra-stable passive components to achieve excellent performance over the operating temperature range of 0 to 60°C. A rugged, ABS plastic package provides excellent protection against shock and vibration.
- 8VDC to 50VDC voltage monitor (24VDC nominal operation) with 0.1V resolution
- Ideal for battery powered systems
- Reverse polarity protected
- 3 digit LCD display
- Weight of 14grams
- ABS case material, provides excellent protection against shock and vibration
- Humidity range from (non condensing) 0% to 85%
- Subminiature 1.38inch x 0.88inch x 0.66inch package
- Maximum current consumption of 2mA at 24V and 6mA at 50V
- Sampling rate of 2.5readings/second
Applications
Industrial, Automation & Process Control, Automation & Process Control
Product details
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | DMS-20LCD-1-DCM-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
