| ₹ 3823.7 includes GST and import duties. | |
| B2B customers can avail ₹ 583.11 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

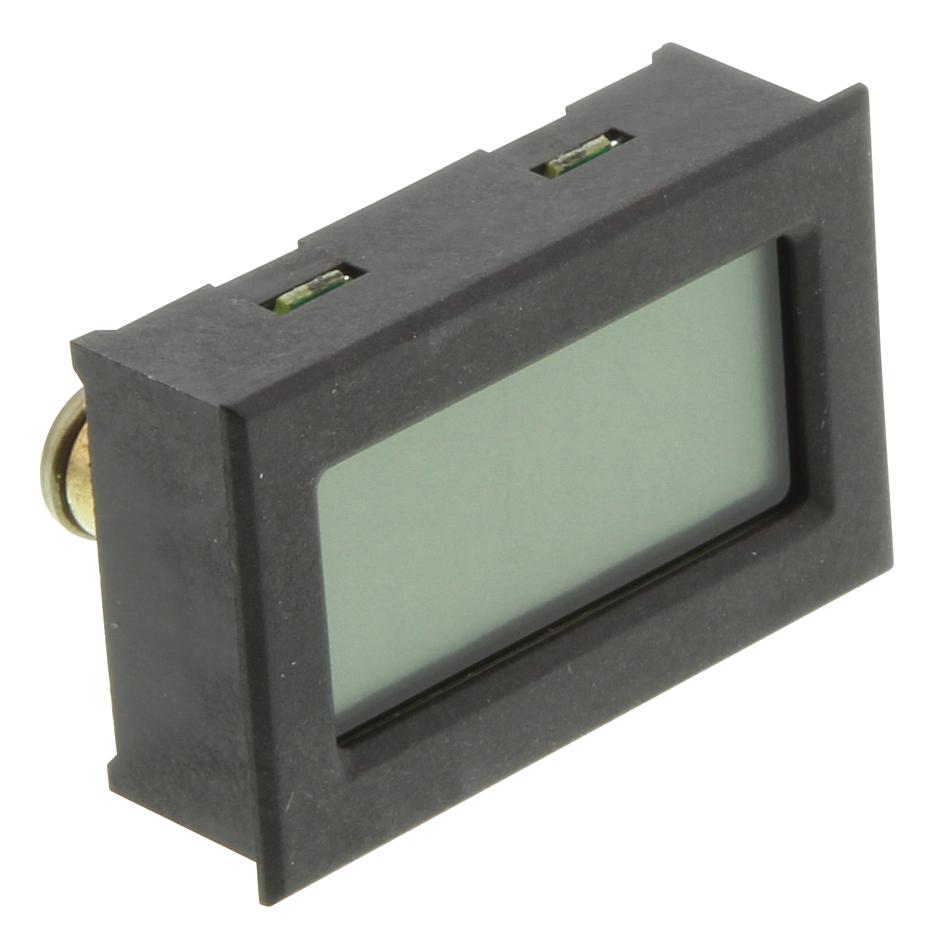

The DMS-20LCD-0-DCM-C is a 2-wire self-powered LCD display DC Voltage Monitor for battery-powered systems. The self-contained DC voltage monitor set new standards for quality, performance, size and cost. Simply apply power to the two rear terminals and the unit is operational. No additional components are required. The 0.37-inch/9.4mm large LCD display with built-in VDC annunciator, can be easily read from 10 feet. Reverse polarity protection is standard on both models. The DMS-20LCD-DCM utilizes a precision analog-to digital converter and ultra-stable passive components to achieve excellent performance over the operating temperature range of 0 to +60°C. A rugged, ABS plastic package provides excellent protection against shock and vibration. DMS-20LCD-DCM�s are without a doubt the most costeffective, LCD-display, digital voltmeters available anywhere, at any price.
- Self-powered, only two connections required
- +6.50-18.00Vdc (0.01V resolution)
- Ideal for battery-powered systems
- Reverse polarity protected
- Built-in �VDC� annunciator
- Large (0.37�/9.4mm) LCD displays
- Subminiature 1.38� x 0.88� x 0.66� packages
- Rugged, ABS package
Applications
Automation & Process Control, Power Management
Product details
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | DMS-20LCD-0-DCM-C |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3747.23 |
| 3-5 | ₹ 3708.99 |
| 5-10 | ₹ 3632.52 |
| 10+ | ₹ 3556.04 |
Bulk discount will be automatically applied during checkout based on quantity.
