Description

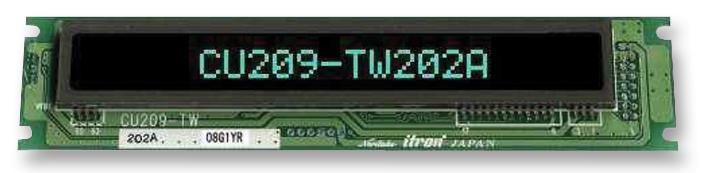

The CU209-TW202A is a 5 x 7 Dot Character VFD Module includes the vacuum fluorescent display glass, driver and micro-controller ICs with refresh RAM, character generator and interface logic. The high speed 8 bit parallel interface is 5V CMOS compatible suitable for connection to a host CPU bus. The asynchronous serial interface accepts baud rates up to 19200 with or without parity (default - 19200BPS, even parity, international font). Two character font tables can be hardware or software selected.
- 1 Lines of 20-character 9mm high
- High speed parallel/serial interface
- -40 to 85°C Operating temperature range
- High brightness blue green display
- ASCII, Katakana and extended character font
- 16 user definable characters
Applications
Computers & Computer Peripherals, Imaging, Video & Vision
Product details
| Resolution: 1 x 20 |
| Viewing Area (H x W): 8.85mm x 112.6mm |
| Character Format: Dot Matrix |
| Supply Voltage Min: 4.75V |
| Supply Voltage Max: 5.25V |
| Supply Current: 240mA |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Interface Type: Parallel, Serial |
| Product Range: - |
Other details
| Brand | NORITAKE ITRON |
| Part Number | CU209-TW202A |
| Quantity | Each |
| Technical Data Sheet EN |  |
