Description

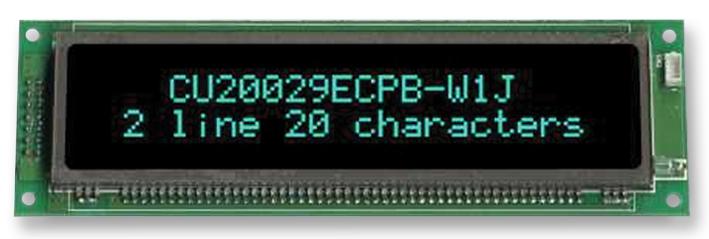

The CU20029-UW1J is a 20x2 VFD Module with green (blue-green) colour of illumination. It has 5 x 7 ANK, international matrix format and 350cd/m² minimum luminance. VFD module gives the opportunity to mix multi-size built in ASCII fonts with user defined images. A rich command set enables minimum data transfer to achieve the ideal solution.
- High brightness, easy to read
- Fast visual response, less than 12µs
- 1000000 hours MTBF and up to 20 years life
- Easy to combine graphics and multi-size fonts
- -40 to 85°C Operating temperature range
Applications
Consumer Electronics
Product details
| Resolution: 2 x 20 |
| Viewing Area (H x W): 18.8mm x 102.6mm |
| Character Format: Dot Matrix |
| Supply Voltage Min: 4.75V |
| Supply Voltage Max: 5.25V |
| Supply Current: 400mA |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Interface Type: Parallel |
| Product Range: - |
Other details
| Brand | NORITAKE ITRON |
| Part Number | CU20029-UW1J |
| Quantity | Each |
| Technical Data Sheet EN |  |
