NVT Phybridge NV-PL-08 Overview
- 1Description
- 2Easy Migration to IP
- 3Speed, Reach, and Power
- 4Simple Deployment
- 5PoLRE LPC Switch
With the NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch from NVT it is easy to run a wired network connection to PoE compliant devices at distance of up to 1200'.

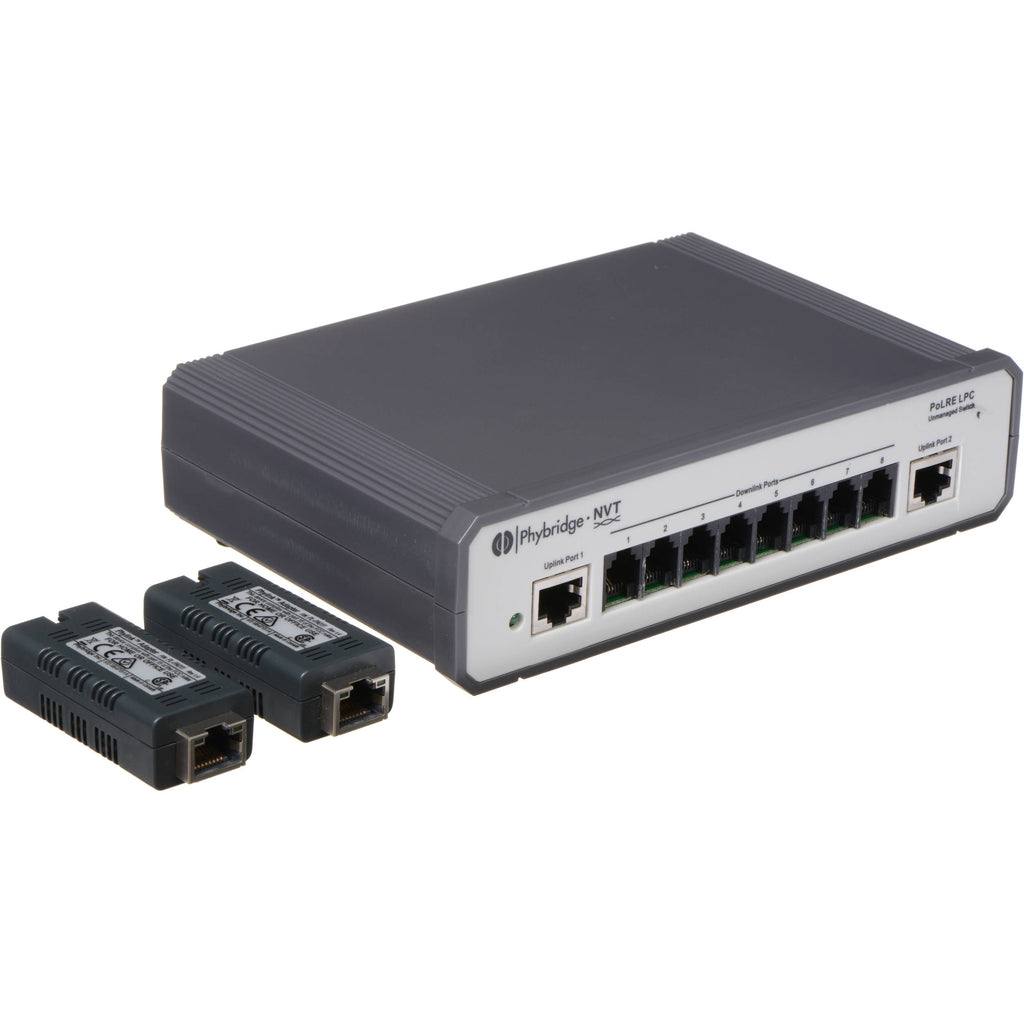

This kit consists of a single 8-port unmanaged switch and two network adapters to connect devices such as IP phones, access points, IP cameras, and other PoE 802.3af compliant devices to your network. Once configured, the PoLRE switch and included adapters support data transfer rates of up to 10 Mbps with no degradation in network performance over longer distances.
Easy Migration to IP
PoLRE is designed to make the migration to IP quick, easy, and cost effective by leveraging an existing single pair UTP infrastructure. Benefits include:
� Accelerating your return on investment by reducing infrastructure costs
� Collapsing planning and deployment time
� Eliminating infrastructure barriers, risks, disruption and costs
� Creating a robust IP platform that is easy to configure, deploy and manage
� Accelerating your return on investment by reducing infrastructure costs
� Collapsing planning and deployment time
� Eliminating infrastructure barriers, risks, disruption and costs
� Creating a robust IP platform that is easy to configure, deploy and manage
Speed, Reach, and Power
The LPC delivers 10 Mbps (symmetrical, full duplex) and PoE over a single pair of UTP with 1200' reach. It is designed to support IP Phones and other IEEE compliant devices. There is no reduction in bandwidth speed based on longer distances
Simple Deployment
PoLRE LPC was designed to make it simple for small businesses or distributed enterprise to simplify their IP migration. No network configuration required
PoLRE LPC Switch

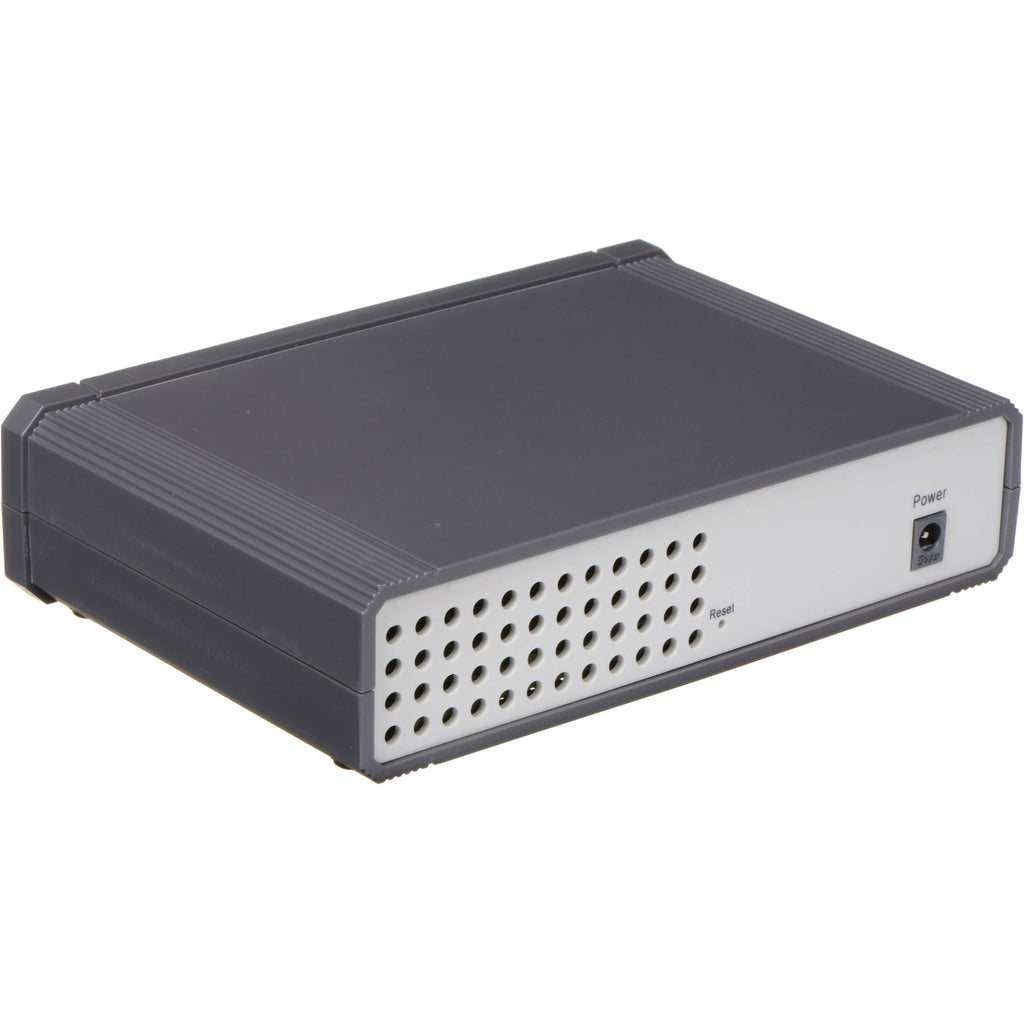

The PoLRE LPC switch is a high-performing 8-port unmanaged switch that helps maximize your return on investment and reduce your total cost of ownership.
The PoLRE LPC transforms the existing two-wire infrastructure into a robust IP platform with power ideal for IP phones and other IEEE compliant IP devices.
Advantages:
� Quick, easy and cost effective IP migration
� Plug-and-play unmanaged switch
� Ethernet and PoE over a single pair of wire with 4 times the reach of traditional switches
The PoLRE LPC transforms the existing two-wire infrastructure into a robust IP platform with power ideal for IP phones and other IEEE compliant IP devices.
Advantages:
� Quick, easy and cost effective IP migration
� Plug-and-play unmanaged switch
� Ethernet and PoE over a single pair of wire with 4 times the reach of traditional switches
UPC: 735890500032
In the Box
- NVT Phybridge NV-PL-08 Power over Long Reach Ethernet LPC Unmanaged Switch
- Limited 1-Year Warranty
Table of Contents
- Description
- Easy Migration to IP
- Speed, Reach, and Power
- Simple Deployment
- PoLRE LPC Switch
NVT Phybridge NV-PL-08 Specs
Switch
| Interface | Ethernet Uplink (Trunk IP) 2 x RJ45 Ports: 10/100 Base-T auto-sensing, independent speed selection, Ethernet IEEE 802.3, CAT5 copper cable Downlink (PoE and IP to Adapter) 8 x RJ11 jacks Maximum Distance: 1200' (365 m) CAT3 UTP cable 24 AWG Speed: 10 Mbps (full duplex) Power: 10 Watts |
| Power | Power Supply 48 VDC Power Consumption 2.9 W Power Injection 48 VDC; endpoint devices must be compliant with IEEE 802.3af External Power Supply External 100 W power supply included. Optional higher power supplies available |
| Temperature & Humidity | Operating Temperature 14 to 115.6°F / -10 to 45.5°C Humidity 10 to 95% (non-condensing) at 95°F / 35°C |
| Dimensions (WxDxH) | 7.01 x 4.72 x 1.77" (17.8 x 12 x 4.5 cm) |
| Weight | 0.679 lb (308 g) |
Adapter
| Interface | Interface PoLRE (Switch Side) 1 x RJ11 Port: CAT3 unshielded single twisted pair cable. Between the wall plate and adapter, you can reuse the existing silver satin when doing a DNIC/POTS displacement Interface Ethernet Side: For IP End Point Device 1 x RJ45 Port: 10 Base-T |
| Power | Power Supply 48 VDC Power Consumption 0.9 W Power Injection (PoE) Voltage on RJ45 Port: 54 VDC max 37 VDC when 1200' / 365 m away from its PoLRE switch powers Class 1, Class 2, and some Class 3 IEEE 802.3af compliant IP devices |
| Temperature & Humidity | Operating Temperature 32 to 104°F / 0 to 40°C Humidity 10 to 95% (non-condensing) at 95°F / 35°C |
| Dimensions (W x D x H) | 1.1 x 2.56 x 0.71" (2.8 x 6.5 x 1.8 cm) |
| Weight | 0.78 oz (22 g) |
Packaging Info
| Package Weight | 2.45 lb |
| Box Dimensions (LxWxH) | 8.5 x 8 x 2.8" |
