Description

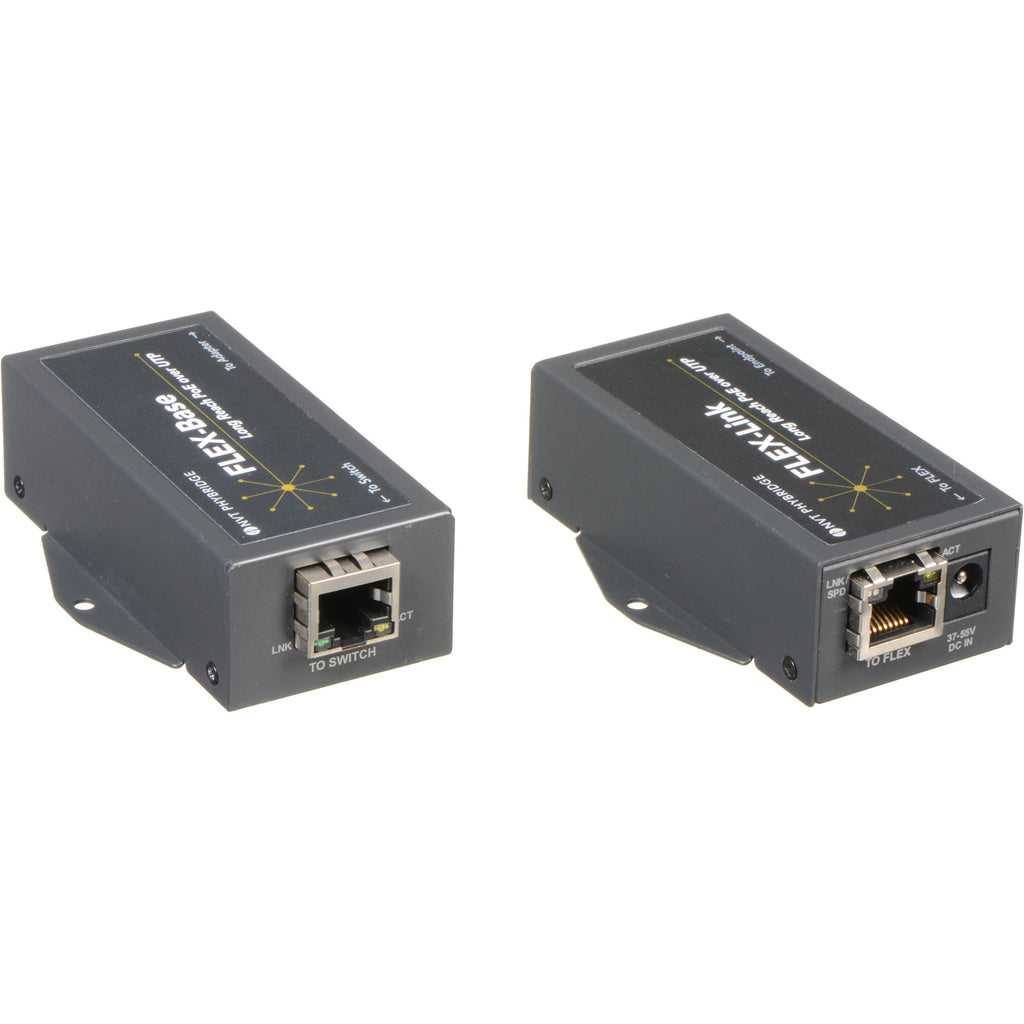

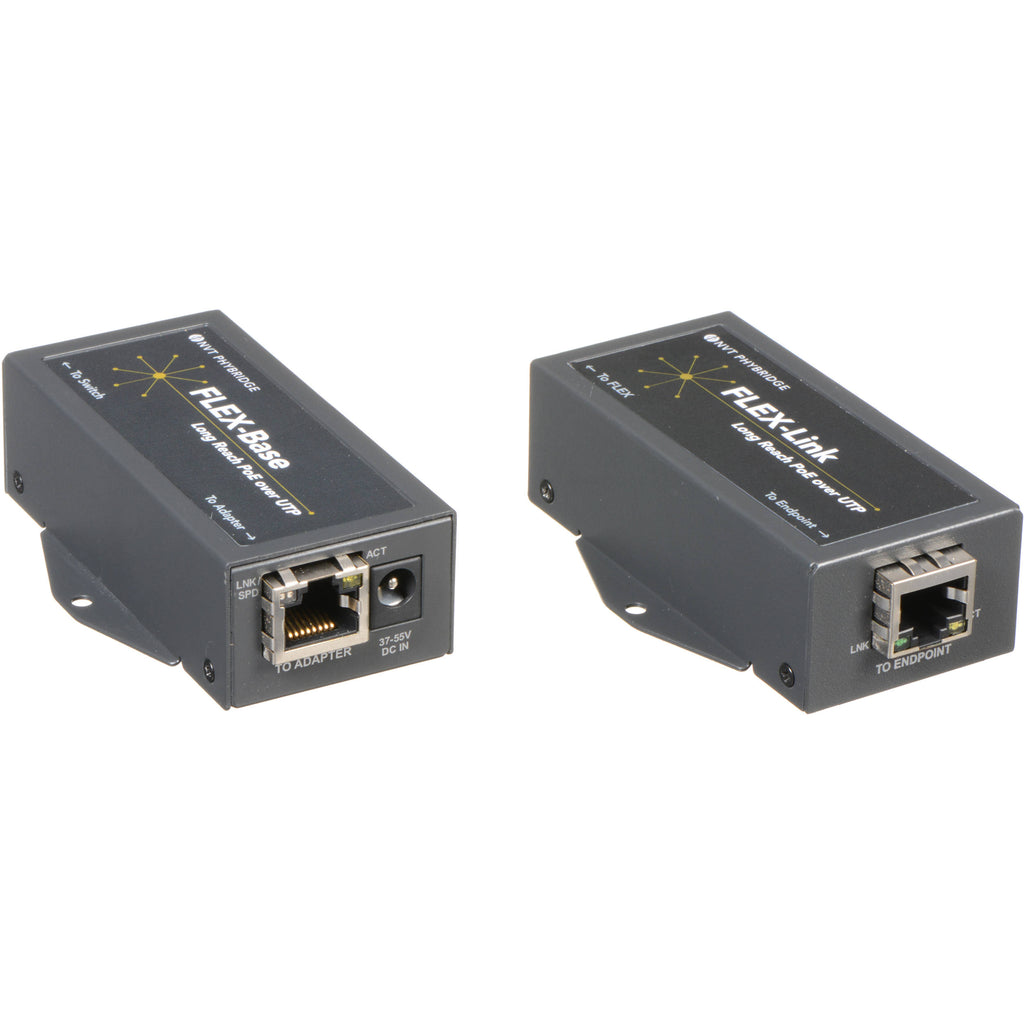

NVT Phybridge FLEX Overview
With the FLEX Extender Kit with Flex Link, Base Adapter & Power Supply from NVT Phybridge it is easy to extend the reach of a PoE signal to distances of up to 2000'. This kit includes the FLEX-Base unit, the FLEX-Link adapter, and a dedicated power supply offering up to 60W of power giving you the tools needed to power a variety of PoE-compatible devices.
- 10/100BASE-T(X) Ethernet with PoE++ (up to 50W)
- 10/10024 Mbps, full duplex data rate
- Power Injection or Pass-through PoE++ over standard UTP or STP cable
- Up to 2,000' at 100 Mbps over 4-pair, or at 10 Mbps over 1- (need local power) or 2-pair
- Supports Multicast and Unicast
- Auto detect data rate for maximum bandwidth and transmission distance utilization
- Compliant with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs EN 50121-4 Certification for Railway/ Subway environments (FLEX-Base and FLEX-Link)
- LED indicators for operating status
- FLEX-Link and FLEX-Base can be locally powered
UPC: 735890500285
In the Box

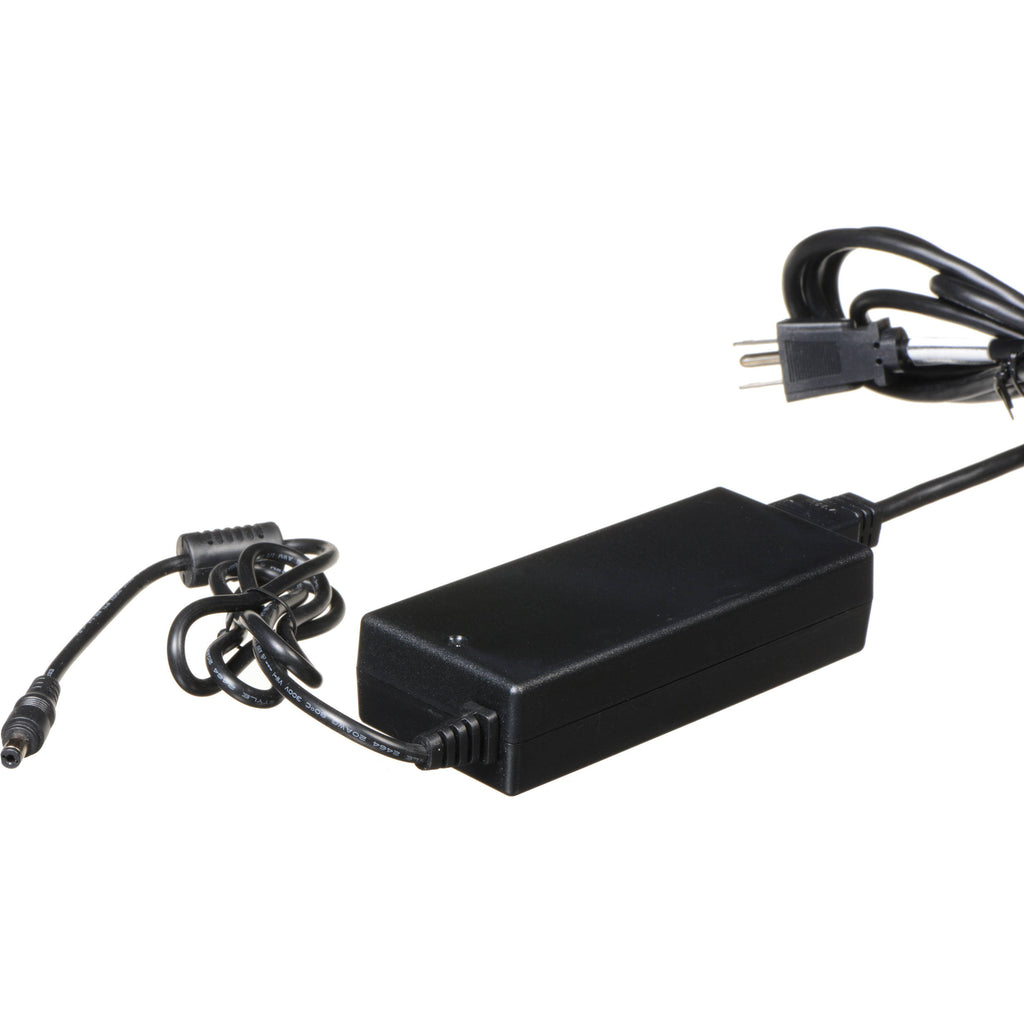

- NVT Phybridge FLEX Extender Kit with Flex Link, Base Adapter & Power Supply
- Limited 5-Year Warranty
NVT Phybridge FLEX Specs
| Data Rate | Up to 100 Mbps |
| Power | Up to 50 W |
| Distance | Up to 2000' / 610 m |
| Interface | FLEX-Base Network Infrastructure Side (FLEX side): 1 x RJ-45 Port: UTP/STP cable (2-pair or 4-pair) For IP End Device (IEEE Side): 1 x RJ-45 Port: Supports negotiation with IEEE 802.3 af/at switches (for general/PoE switch) FLEX-Link Network Infrastructure Side (FLEX side): 1 x RJ-45 Port: UTP/STP cable (2-pair or 4-pair) For IP End Device (IEEE Side): 1 RJ45 port: Endpoint device must be IEEE 802.3 af/at compliant |
| Power Supply | FLEX-Base PoE from the FLEX24 switch, PoE switch, or external power supply; maximum 50 W (over 4-pairs) or 30 W (over 2-pairs) FLEX-Link PoE from the FLEX24 switch, PoE switch, or external power supply; maximum 50 W (over 4-pairs) or 30 W (over 2-pairs) |
| DC In | FLEX-Base Optional (sold separately) 48 V - 56 VDC via an external AC/DC power adapter (IEC Class II isolated only) Note: Local power supply must have its output isolated from Earth potential FLEX-Link Optional (sold separately) 48 V - 56 VDC via an external AC/DC Power Adapter (IEC Class II isolated only) Note 1: Local power supply used must have its output isolated from Earth potential. Note 2: If voltage of local power supply is lower than the voltage provided from the PoE switch, then power on the PoE switch should be turned off |
| Power Consumption | FLEX-Base 1.5 W FLEX-Link 1.5 W |
| Temperature & Humidity | FLEX-Base Temperature -40 to 158°F / -40 to 70°C (Tests conducted against international safety standard at maximum ambient temperatures of 140°F / 60°C at 30 W and 122°F / 50°C at 50 W) FLEX-Link Temperature -40 to 158°F / -40 to 70°C (Tests conducted against international safety standard at maximum ambient temperatures of 140°F / 60°C at 30 W and 122°F / 50°C at 50 W) FLEX-Base Humidity 10 to 95% (non-condensing) at 95°F / 35°C FLEX-Link Humidity 10 to 95% (non-condensing) at 95°F / 35°C |
| Dimensions | FLEX-Base 3.46 x 2.16 x 0.98" / 8.8 x 5.5 x 2.5 cm FLEX-Link 3.46 x 2.16 x 0.98" / 8.8 x 5.5 x 2.5 cm |
| Weight | FLEX-Base 4 oz / 114 g FLEX-Link 4 oz / 114 g |
Packaging Info
| Package Weight | 2.3 lb |
| Box Dimensions (LxWxH) | 11.6 x 7.9 x 2.6" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
