Description

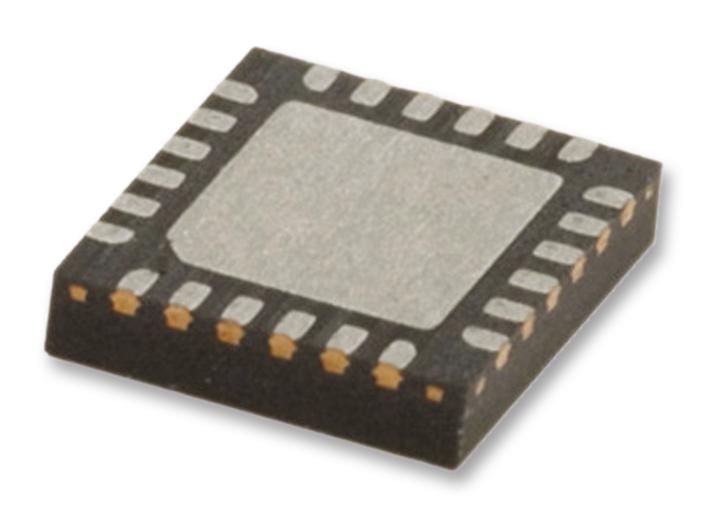

The KSZ8081RNAIA TR is a Physical Layer Transceiver with RMII support and a single-supply 10Base-T/100Base-TX Ethernet for transmission and reception of data over standard CAT-5 unshielded twisted pair cable. It is a highly integrated, PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs, by integrating a low-noise regulator to supply the 1.2V core. It offers the media independent interface for direct connection with MII-compliant Ethernet MAC processors and switches.
- Back-to-back mode support for 100Mbps copper repeater
- MCD/MDIO management interface for PHY register configuration
- Programmable interrupt output
- LED outputs for link, activity and speed status indication
- On-chip termination resistors for the differential pairs
- Power-down and power-saving modes
Applications
Imaging, Video & Vision, Signal Processing, Portable Devices, Communications & Networking, Consumer Electronics
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Device Type: Single Chip Ethernet PHY Transceiver |
| Supported Standards: IEEE 802.3 |
| Supply Voltage Min: 3.135V |
| Supply Voltage Max: 3.465V |
| IC Case / Package: QFN |
| No. of Pins: 24Pins |
| IC Mounting: Surface Mount |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Qualification: - |
| Product Range: - |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | KSZ8081RNAIA-TR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
