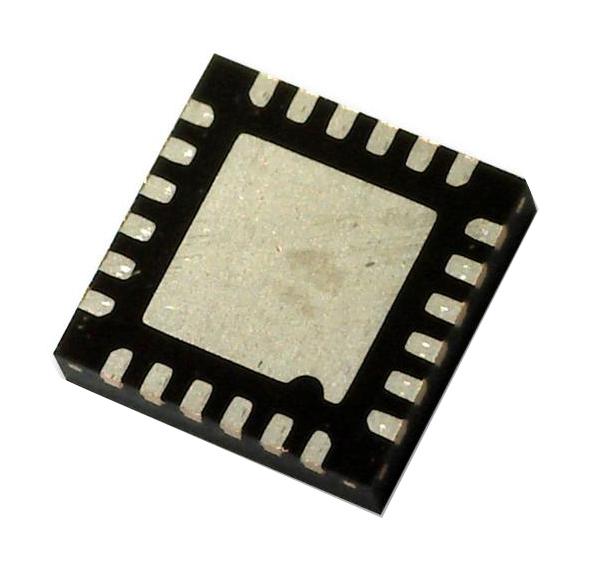

MICROCHIP KSZ8081RNACA-TR Ethernet Controller, Single Chip Ethernet PHY Transceiver, IEEE 802.3, 3.135 V, 3.465 V, QFN

The KSZ8081RNACA TR is a single-supply 10Base-T/100Base-TX Ethernet Physical-layer Transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. This is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core and by offering 1.8/2.5/3.3V digital I/O interface support. It offers the reduced media independent interface (RMII) for direct connection to RMII-compliant MACs in Ethernet processors and switches. As the power-up default, this uses a 25MHz crystal to generate all required clocks, including the 50MHz RMII reference clock output for the MAC. This version takes in the 50MHz RMII reference clock as the power-up default.

• RMII back-to-back mode support for a 100Mbps copper repeater
• MDC/MDIO management interface for PHY register configuration
• Programmable interrupt output
• LED outputs for link and activity status indication
• On-chip termination resistors for differential pairs
• Baseline wander correction
• Auto-negotiation to automatically select highest linkup speed (10/100Mbps)/duplex (half/full)
• Power-down and power-saving modes
• LinkMD TDR-based cable diagnostics to identify faulty copper cabling
• Parametric NAND tree support for fault detection between chip I/Os and board
