Description
Product Overview

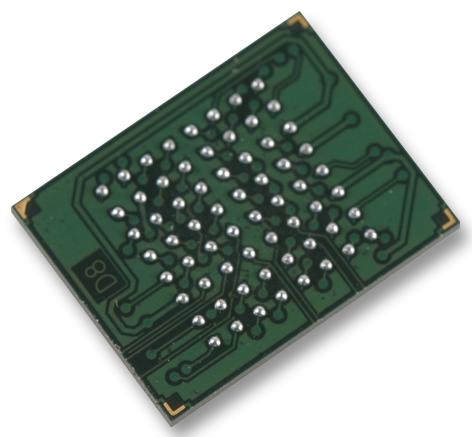

S29GL128S10DHIV10 is a MIRRORBIT� Eclipse flash product fabricated on 65nm process technology. This device offers a fast page access time as fast as 15ns with a corresponding random access time as fast as 90ns. This features a Write Buffer that allows a maximum of 256 words/512 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes this device ideal for today�s embedded applications that require higher density, better performance, and lower power consumption.
- 100ns random access time
- CMOS 3.0V core with versatile I/O, 65nm MIRRORBIT� Eclipse technology
- Single supply (VCC) for read / program / erase (2.7 V to 3.6 V)
- ×16 data bus, asynchronous 32-byte page read
- Programming in page multiples, up to a maximum of 512 bytes
- Automatic error checking and correction � internal hardware ECC with single bit error correction
- Suspend and resume commands for program and erase operations
- Status register, data polling, and ready/busy pin methods to determine device status
- Volatile and non-volatile protection methods for each sector
- Fortified ball-grid array package (LAE064), industrial temperature range from -40°C to +85°C
Product details
Other details
| Brand | INFINEON |
| Part Number | S29GL128S10DHIV10 |
| Quantity | Each |
| Technical Data Sheet EN |  |
