Description
Product Overview

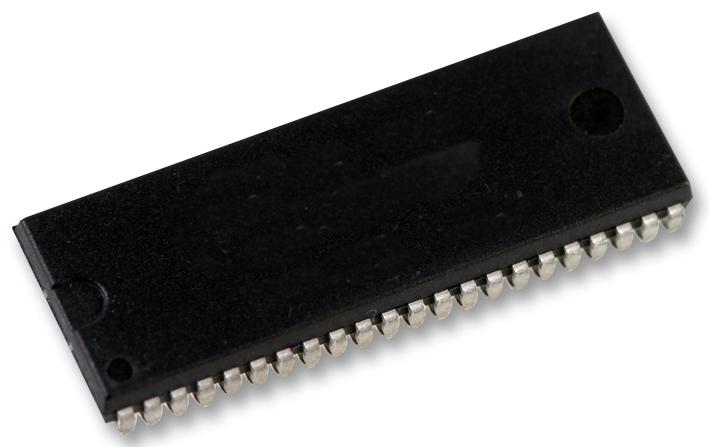

AS6C8016-55ZIN is a 512K X 16bit super low power CMOS SRAM. It is an 8,388,608-bit low-power CMOS static random access memory organized as 524,288 words by 16 bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for low power applications, and particularly well suited for battery back-up non-volatile memory applications.
- Fast access time : 55ns
- Low power consumption: 30mA (typical) operating current
- Single 2.7V to 5.5V power supply
- All inputs and outputs TTL compatible
- Fully static operation, tri-state output
- Data retention voltage is 1.5V (minimum)
- 44pin TSOP II package
- Industrial operating temperature range from -40°C to 85°C
Applications
Power Management, Communications & Networking
Product details
Other details
| Brand | ALLIANCE MEMORY |
| Part Number | AS6C8016-55ZIN |
| Quantity | Each |
| Technical Data Sheet EN |  |
