Description
Product Overview

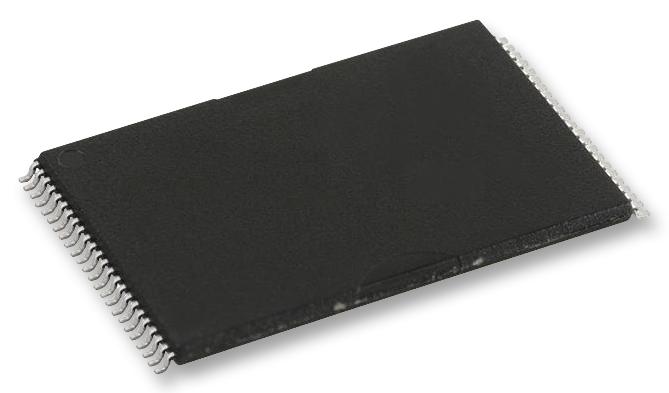

AS6C6416-55TIN is a 64Mbits (4Mx16) low-power CMOS SRAM. It is a 67,108,864-bit low-power CMOS static random access memory organized as 4,194,304 words by 16bits or 8,388,608 words by 8bits. It is fabricated using very high-performance, high-reliability CMOS technology. Its standby current is stable within the range of operating temperature. It is well designed for low-power applications, and particularly well suited for battery backup non-volatile memory applications.
- Fast access time is 55ns
- Low power consumption: 12mA (typ) operating current, 12µA(typ) standby current
- Single 2.7V to 3.6V power supply
- All inputs and outputs TTL compatible
- Fully static operation, tri-state output
- Data retention voltage is 1.2V (minimum)
- 48-pin TSOP I package
- Operating temperature range from -40°C to +85°C
- Output leakage current is 1µA maximum (VCC ? VOUT ? VSS, output disabled)
Product details
Other details
| Brand | ALLIANCE MEMORY |
| Part Number | AS6C6416-55TIN |
| Quantity | Each |
| Technical Data Sheet EN |  |
