Description

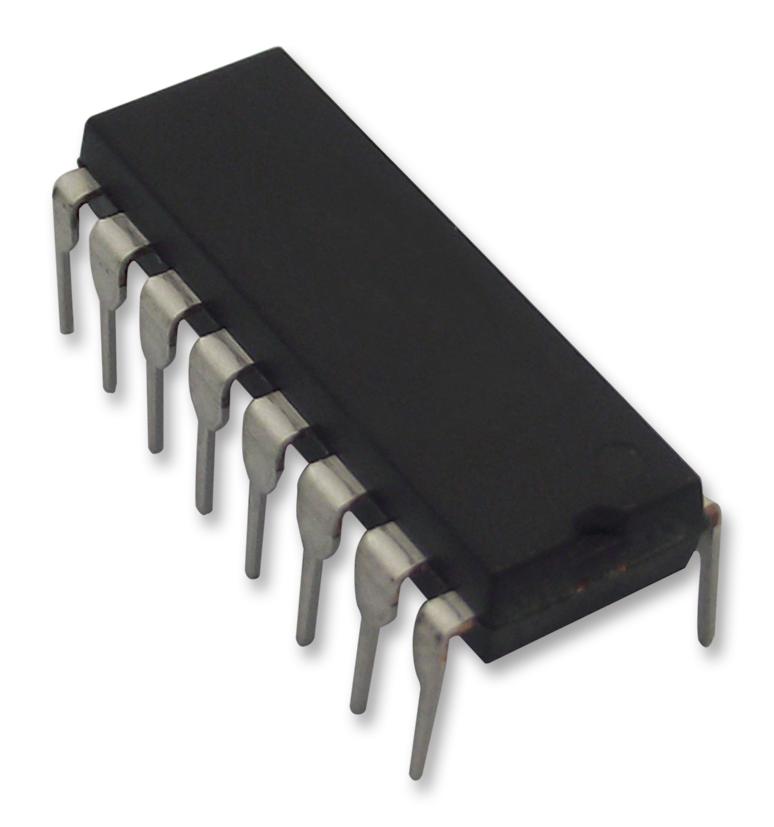

The SN74LS151N is a 8 to 1-line Data Selector or Multiplexer with full on-chip binary decoding to select the desired data source. The LS151 select one-of-eight data sources. A high level at the strobe forces the W-output high and the Y-output (as applicable) low. The LS151 feature complementary W and Y-outputs. For use as Boolean function generator.
- Selects one-of-eight data sources
- Performs parallel-to-serial conversion
- Permits multiplexing from N-lines to one line
- Input-clamping diodes simplify system design
Applications
Industrial, Communications & Networking
Product details
| Logic Family / Base Number: 74LS151 |
| Logic Type: Data Selector / Multiplexer |
| No. of Channels: 1Channels |
| Line Configuration: 8:1 |
| Supply Voltage Min: 4.75V |
| Supply Voltage Max: 5.25V |
| Logic Case Style: DIP |
| No. of Pins: 16Pins |
| Logic IC Family: 74LS |
| Logic IC Base Number: 74151 |
| Operating Temperature Min: 0°C |
| Operating Temperature Max: 70°C |
| Product Range: - |
| Automotive Qualification Standard: - |
| MSL: - |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74LS151N |
| Quantity | Each |
| Technical Data Sheet EN |  |
