Description

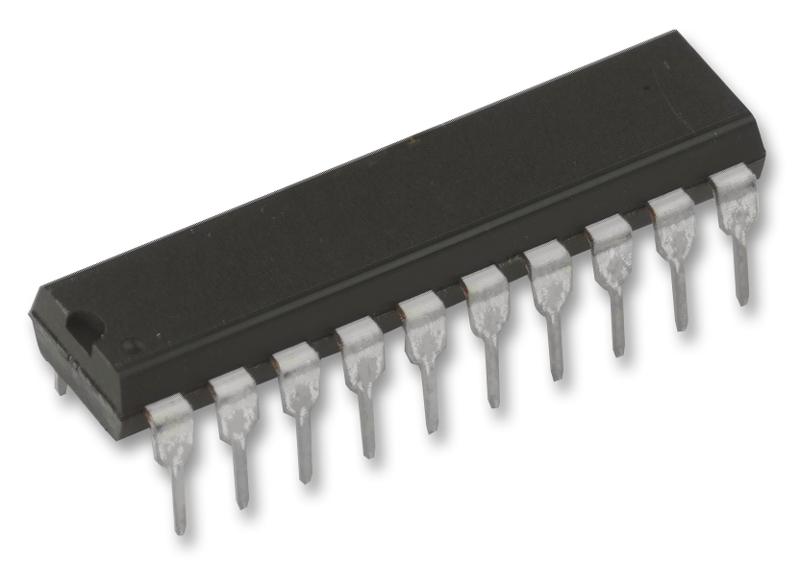

The SN74HC688N is a 8-bit Identity/Magnitude Comparator (P=Q) with an enable. It performs comparison of two 8-bit binary or BCD words. An OE\ input may be used to force the output to the high level.
- High-current outputs drive up to 10 LSTTL loads
- 80µA Maximum low power consumption
- Typical tpd = 14ns
- ±4mA Output drive at 5V
- 1µA Maximum low input current
Applications
Signal Processing, Industrial
Product details
| Logic Family / Base Number: 74HC688 |
| Comparator Type: Identity |
| No. of Channels: 8Channels |
| No. of Bits: 8bit |
| Logic Case Style: DIP |
| No. of Pins: 20Pins |
| Supply Voltage Min: 2V |
| Supply Voltage Max: 6V |
| Logic IC Family: 74HC |
| Logic IC Base Number: 74688 |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: -999 |
| MSL: -999 |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | SN74HC688N |
| Quantity | Each |
| Technical Data Sheet EN |  |
