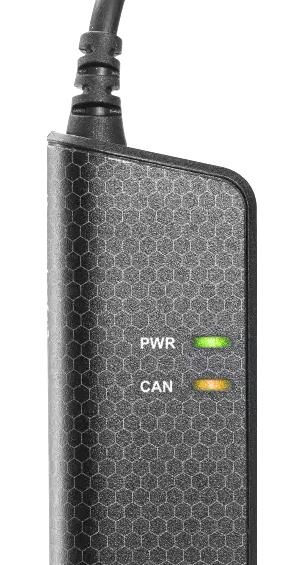

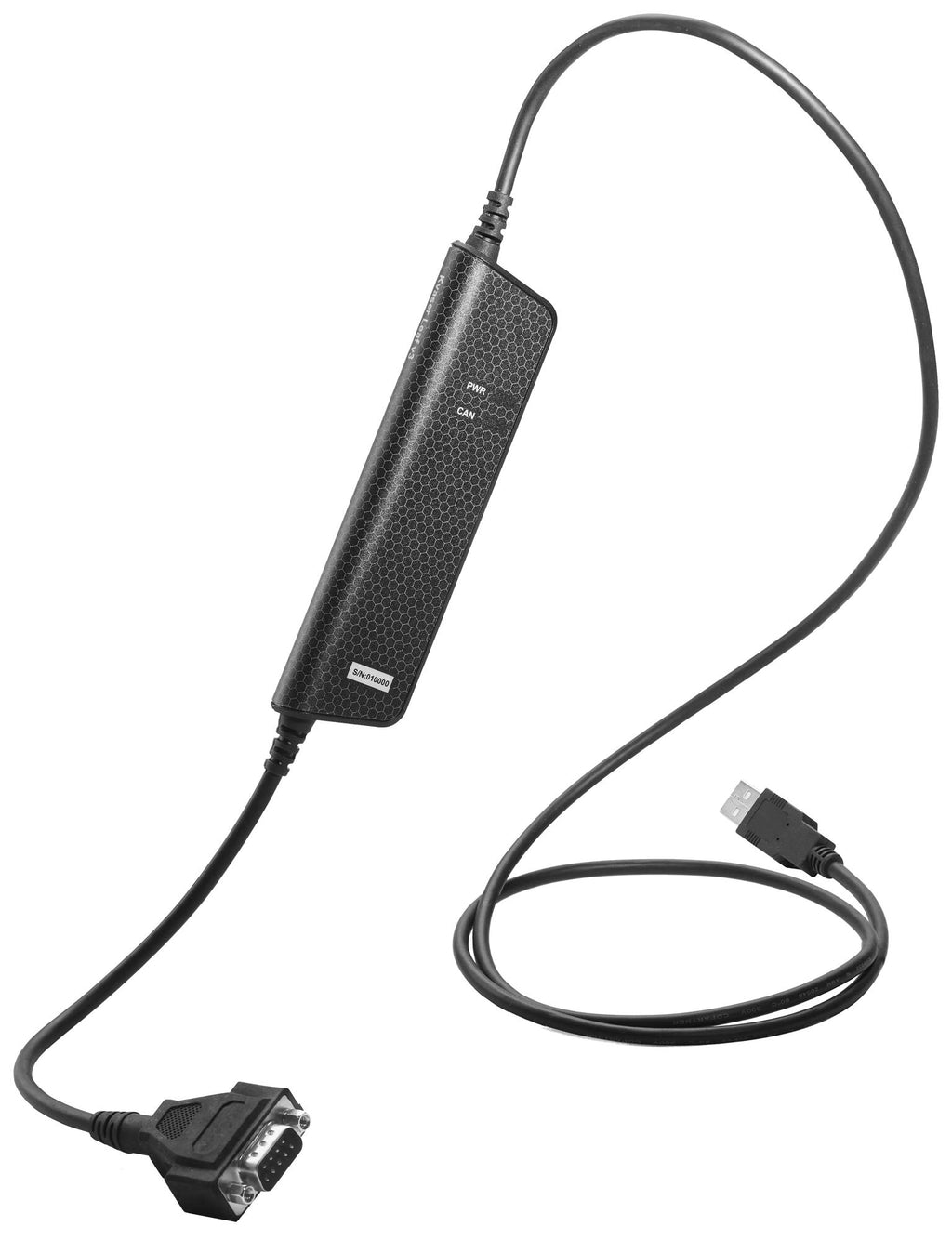

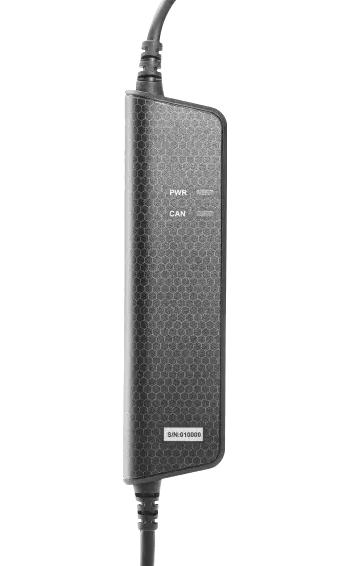

KVASER 01424-4 Interface, CAN 2.0A/CAN 2.0B, Kvaser Leaf v3, 1-CH, USB 2.0 Type A Plug to D Sub 9 Position Plug

01424-4 is a Kvaser Leaf v3 CAN interface module. It represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network. With its USB 2.0 compliant connector and 9-pin D-SUB connector, the leaf light v2's sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications. Leaf v3 can handle up to 20,000 messages per second, each time stamped with a 50-microsecond accuracy. No external power is needed and galvanic isolation is standard. Use Kvaser�s free general-purpose CAN monitoring software and a wide variety of advanced software for ECU development, diagnostics and calibration from Kvaser�s network of Technical Associates.

• Supports CAN FD, up to 8Mbit/s
• High-speed CAN connection (compliant with ISO 11898-2), up to 1Mbit/s
• Powered through the standard USB type �A� connector
• Quick and easy plug-and-play installation
• Supports silent mode for analysis tools � listen to the bus without interfering
• Support for SocketCAN
• Host OS Windows (7 or later), Linux
• Supports J1939, CANopen, NMEA 2000® and DeviceNet when paired with advanced software
• Dimension is 35 x 165 x 17mm
• Operating temperature range from -20°C to +70°C
