Description

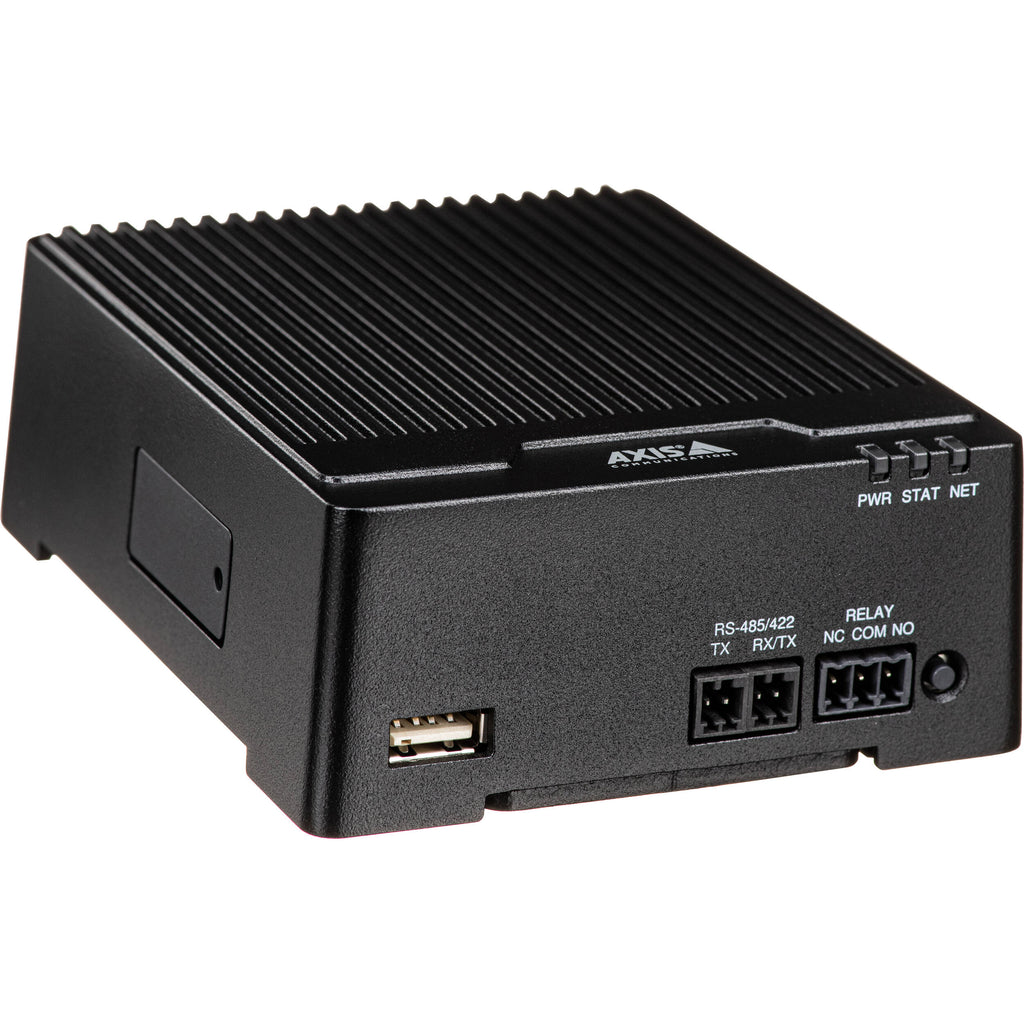

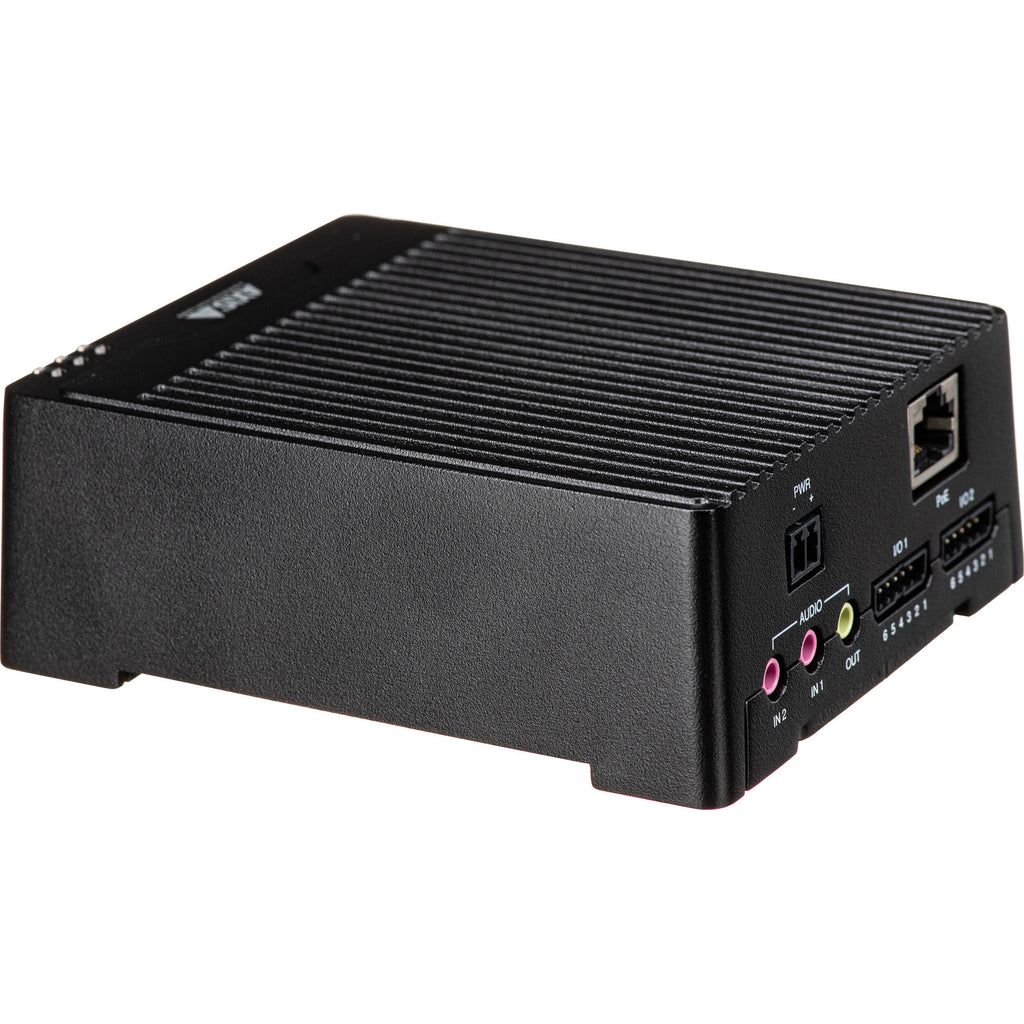

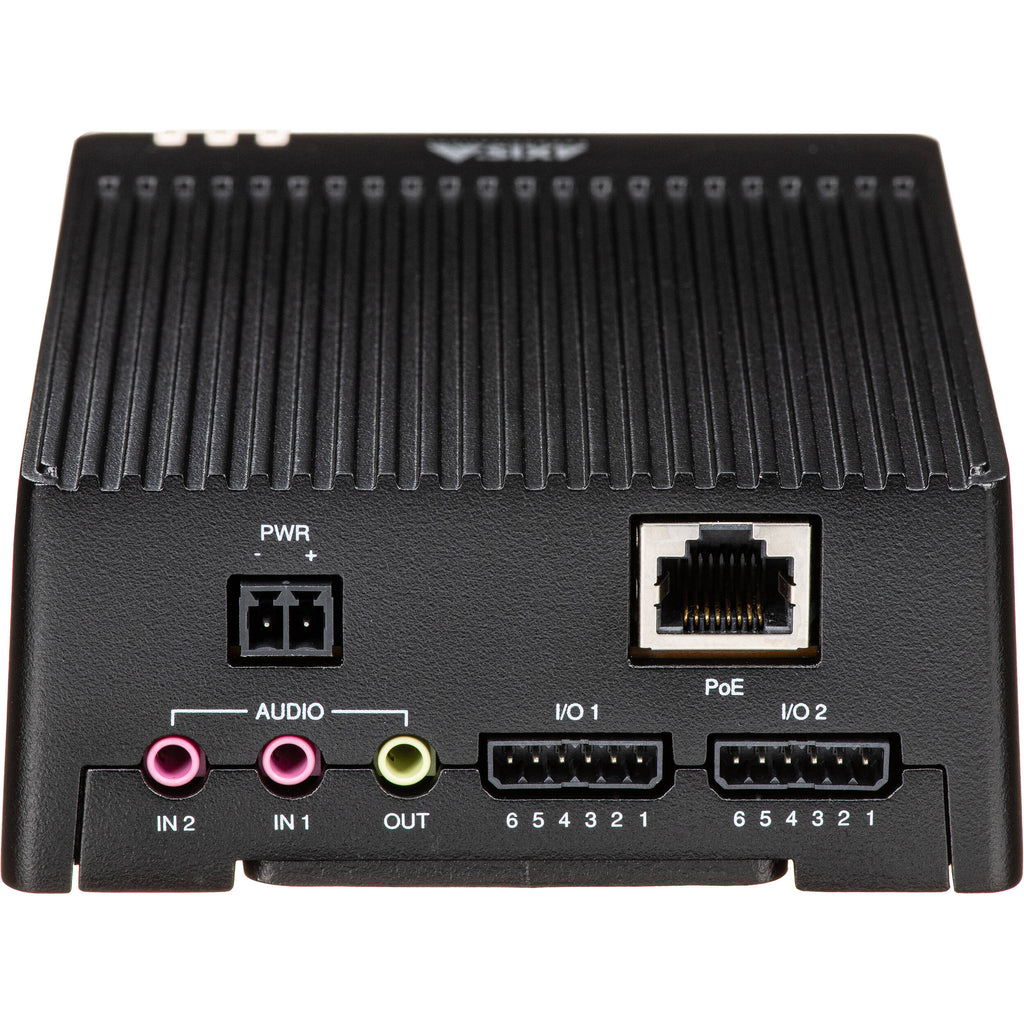

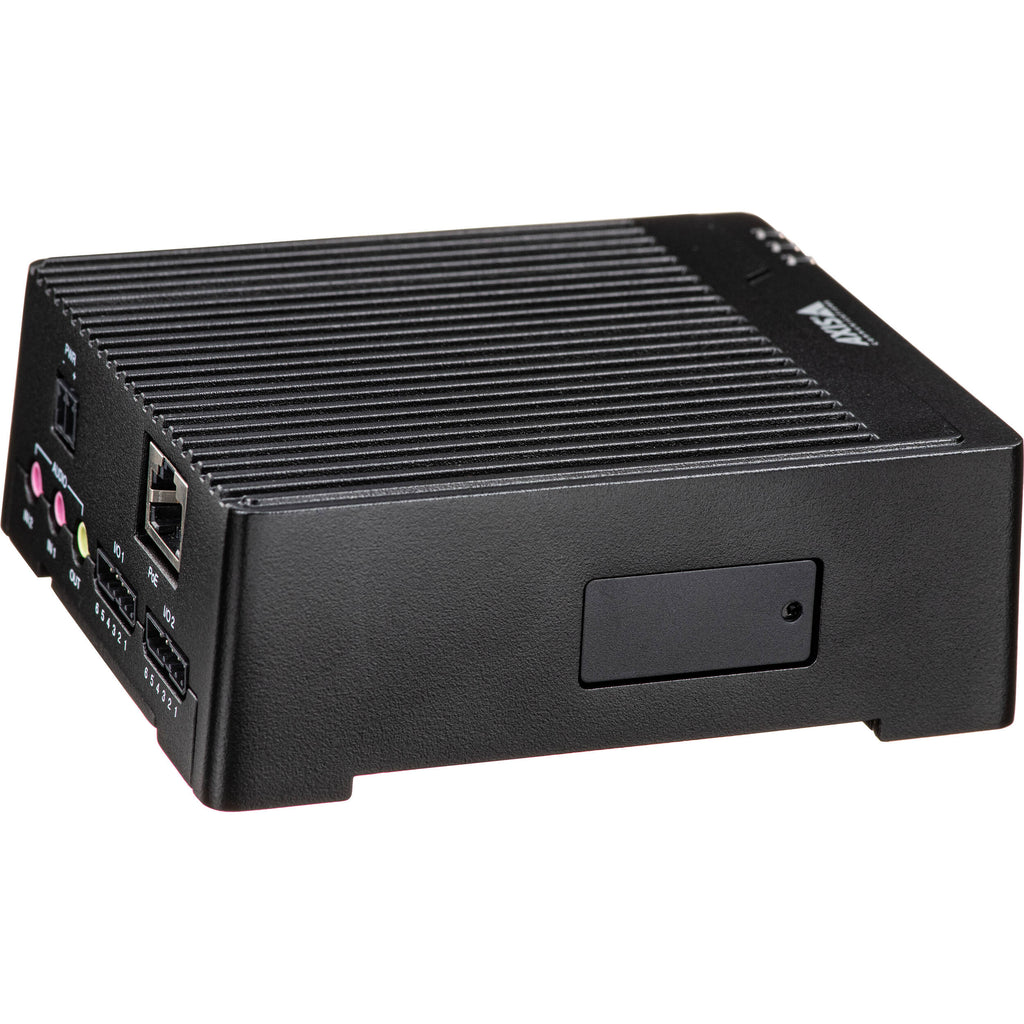

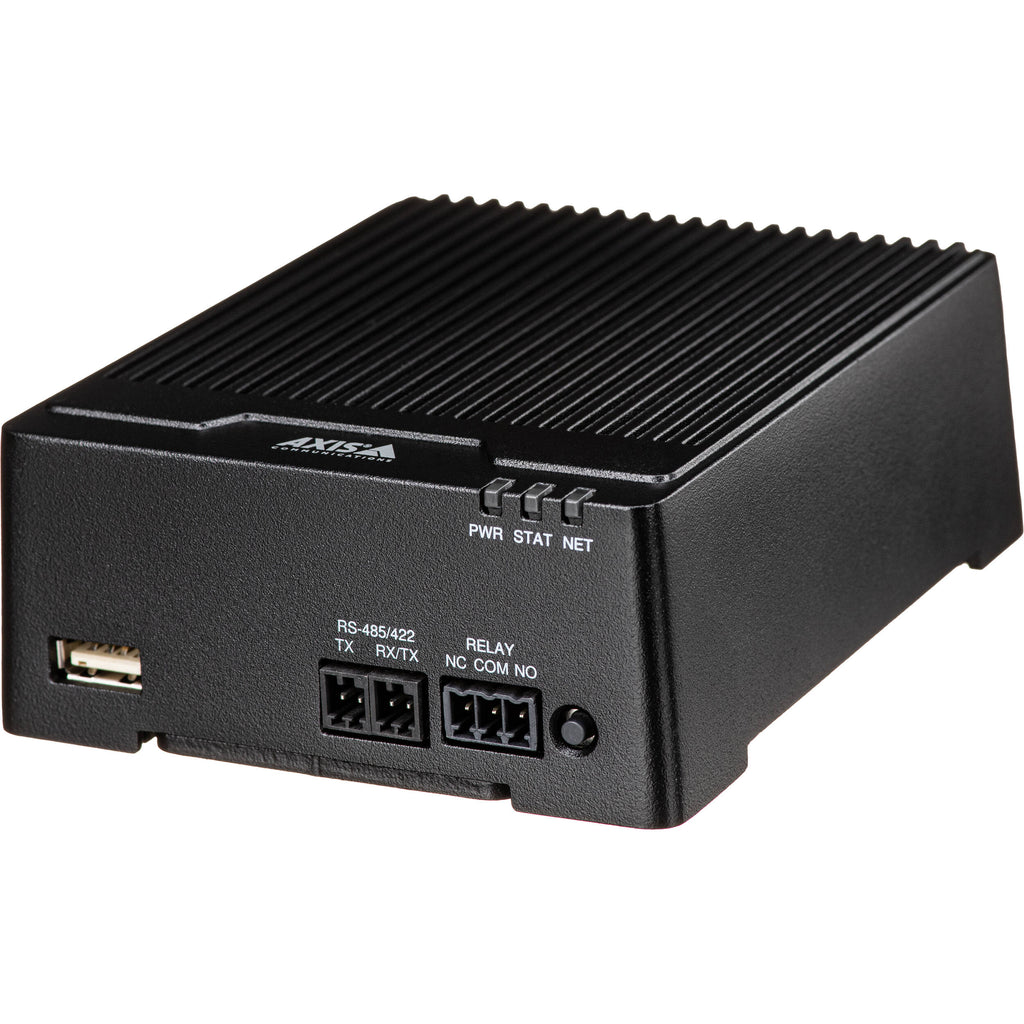

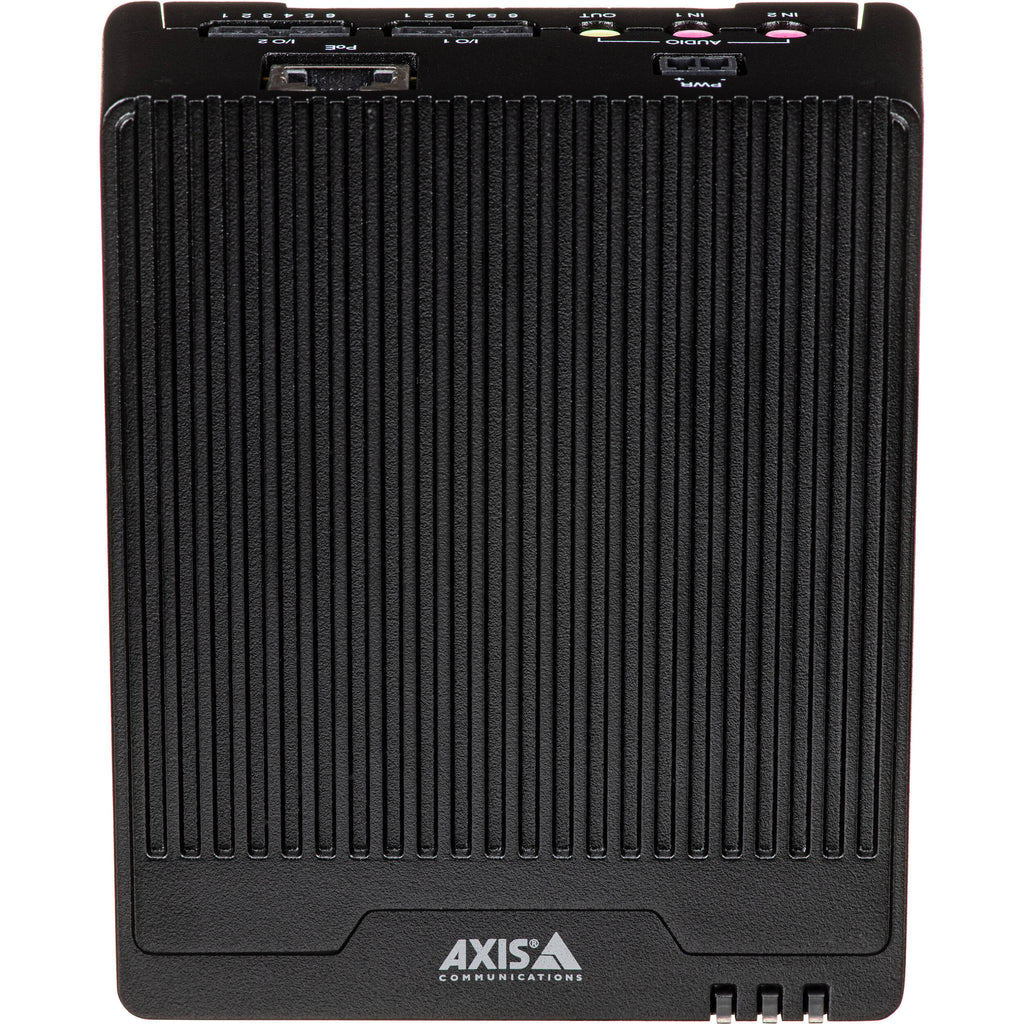

Axis Communications D3110 Mk II Overview
Implement secure sensor and audio functionality to your network video system with the D3110 Mk II Connectivity Hub from Axis Communications. Suitable for network video systems that don't have sensor and audio capabilities or for systems that need additional sensor and audio ports, this hub connects to a wide range of non-visual sensors to trigger alarms and events in your system. Additionally, the hub improves surveillance coverage and awareness when connected to a microphone and speaker via high-quality audio.
The D3110 Mk II supports ACAP (Axis Camera Application Platform) and offers VAPIX, MQTT, and SIP integration for direct access and control of devices in the system. Built-in cybersecurity via Axis Edge Vault safeguards and protects the hub from unauthorized access.
Items Included
- Axis Communications D3110 Mk II Connectivity Hub
- Connector Kit
- Limited 5-Year Manufacturer Warranty
Additional Resources
No additional resources available
Axis Communications D3110 Mk II Specs
| Compatibility |
Various Network Video Systems
|
| Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
|
| Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure Syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local Address (ZeroConf)
|
| USB I/O |
1 x USB-A 2.0 Female Input
|
| Audio I/O |
2x 1/8" / 3.5 mm Line/Mic Input
1x 1/8" / 3.5 mm Line Output |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC
|
| Network I/O |
1 x Shield RJ45 100M PoE
|
| Other I/O |
2 x 6-Pin Terminal Block for 4 Supervised Configurable I/Os
1 x Relay, Terminal Block 2 x RS-485/RS-422, Full Duplex, Terminal Block |
| Power Source |
PoE, DC Input
|
| DC Input Power |
10 to 28 VDC
|
| Power Consumption |
3 W (Typical)
9.53 W (Maximum) |
| Mounting |
1x DIN Rail
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Solid Object-Resistant (IP30)
|
| Certifications |
CAN/CSA, CE, CSA, EN, ETSI, FCC, ICES, IEC, IEC/EN, IEC/EN/UL, KC, RCM, TAA, UL, VCCI, VCCI, cUL
|
| Operating Conditions |
-40 to 158?F / -40 to 70?C at 10 to 85% Humidity
|
| Storage Conditions |
-40 to 158?F / -40 to 70?C at 5 to 95% Humidity
|
| Dimensions |
4.6 x 3.9 x 1.7" / 118 x 99 x 42 mm
|
| Weight |
0.98 lb / 445 g
|
| Package Weight |
1.34 lb
|
| Box Dimensions (LxWxH) |
7 x 6.3 x 3"
|
