Description
Aiphone KB-3HRD Overview

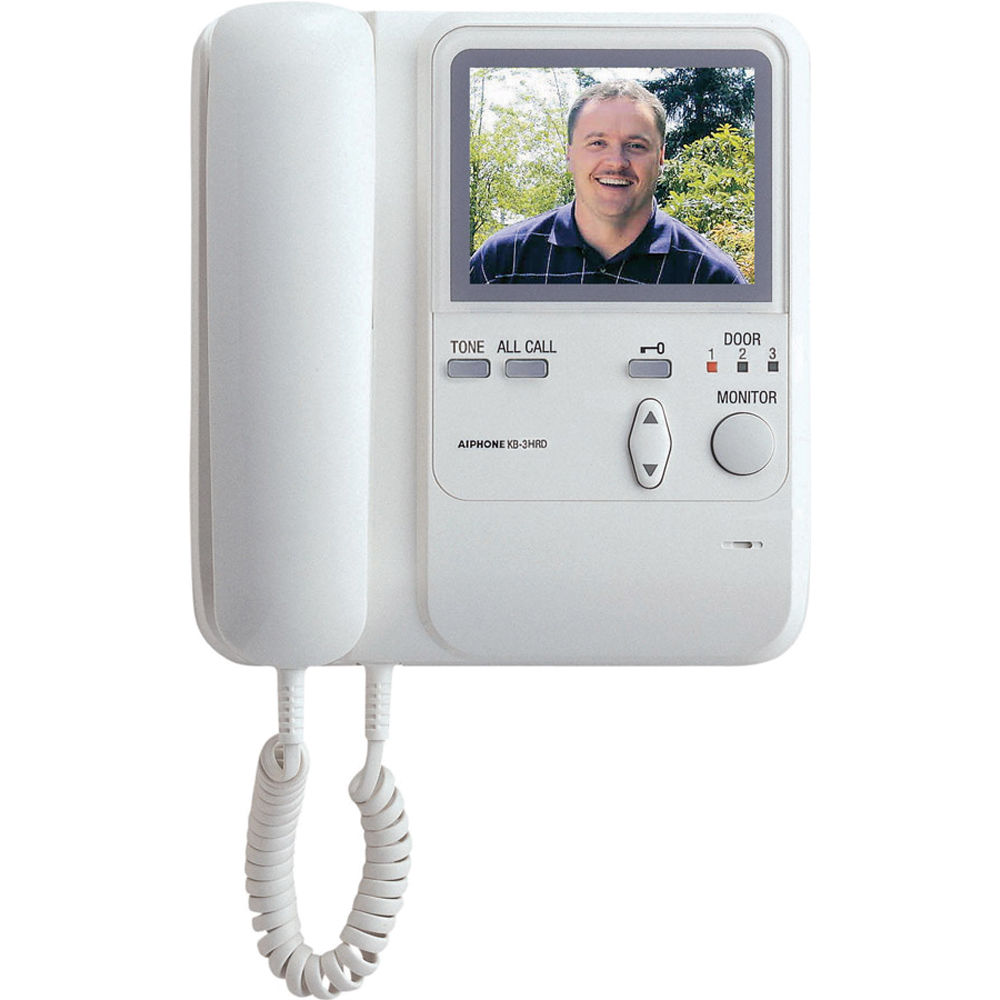

The white KB-3HRD Sub Station with Monitor from Aiphone is designed to be used in conjunction with the KB-3MRD Master Station. The unit features a TFT color monitor, a handset for private communication, a door-release button, call-in LEDs, tilt control, door chime volume control, and all call functionality. It also features individual call buttons for other monitors in the system. You can connect up to 4 KB-3HRD Sub Stations in a single configuration.
Clear and bright images displayed on the color TFT LCD monitor
Instant voice call-in with image
Selective call or all call
Chime or receiver volume control
Optional selective door release with RY-3DL Door Release Relay Module (not included)
Total distance looped between monitors is 330'
Tilt camera control
UPC: 790143400378
Items Included
- Aiphone KB-3HRD Sub Station with Monitor (White)
- Mounting Hardware
- Limited 2-Year Warranty
Additional Resources
No additional resources available
Aiphone KB-3HRD Specs
| Power Source |
24 VDC
|
| Power Consumption |
260 mA maximum, 80 mA standby
|
| Call Alerts |
4-, 2-, 8-tone chime from door 1, 2, & 3 with adjustable volume.
Pre-tone and voice for internal call with adjustable volume |
| Communication |
Simultaneous with handset, hands-free simultaneous at room station internally called
|
| Wiring |
2 solid parallel wires, non-polarized to door
2 solid parallel wires, non-polarized to room, plus 2 wires to power supply (separately jacketed). |
| Distance (Maximum) |
Sub Station to Master Monitor
0.02" (0.65 mm) Diameter: 164' (50 m) 0.04" (1.00 mm) Diameter: 328.1' (100.0 m) 22 AWG: 165.0' (50.3 m) 18 AWG: 330.0' (100.5 m) |
| Requirements |
Cable
Specify for wiring to both door and inside stations 0.65mmØ to 1.2mmØ (22 to 16 AWG) PE (polyethylene) insulation & Vinyl-sheathed cable Attenuation of less than -6.5 db at 10 MHz at 330' (100 m) Solid core conductor Line Impedance: +/- 75 ? (less than 1000 ? at the highest) |
| Housing |
Fire-retardant ABS plastic
|
| Operating Temperature |
32 to 104°F (0 to 40°C)
|
| Dimensions |
7.3 x 7.7 x 3.3" (18.5 x 19.5 x 8.4 cm)
|
| Weight |
1.98 lb (0.89 kg)
|
Packaging Info
| Package Weight |
2.425 lb
|
| Box Dimensions (LxWxH) |
10.6 x 8.1 x 4.2"
|
