Description
Aiphone KB-3MRD Overview

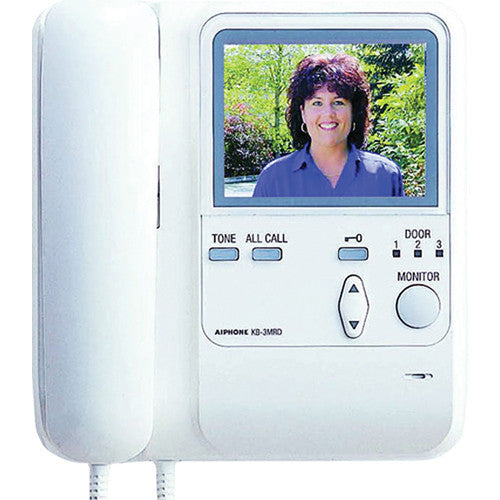

The white KB-3MRD Master Monitor from Aiphone allows you to connect up to 3 video door stations and 4 additional sub monitors. The unit features a TFT color monitor, a handset for private communication, a door-release button, call-in LEDs, tilt control, and All Call, door chime volume control, & individual call buttons for other monitors in the system.
Clear and bright images displayed on the color TFT LCD monitor
Supports three color video door stations and 5 inside monitor stations
Instant voice call-in with image
Selective Call or All Call
Chime or receiver volume control
Optional selective door release with RY-3DL Door Release Relay Module (sold separately)
Total distance looped between monitors is 330'
UPC: 790143400262
Items Included
- Aiphone KB-3MRD Master Monitor (White)
- Mounting Hardware
- Limited 2-Year Warranty
Additional Resources
No additional resources available
Aiphone KB-3MRD Specs
| Power Source |
24 VDC
|
| Power Consumption |
710 mA maximum, 230 mA standby
|
| Call Alerts |
4-, 2-, 8-tone chime from door 1, 2, & 3 with adjustable volume.
Pre-tone and voice for internal call with adjustable volume |
| Communication |
Simultaneous with handset, hands-free simultaneous at room station internally called
|
| Wiring |
2 solid parallel wires, non-polarized to door
2 solid parallel wires, non-polarized to room, plus 2 wires to power supply (separately jacketed). |
| Wiring |
Master Monitor to Door
0.02" (0.65mm) Diameter: 328.1' (100 m) 0.04" (1.00 mm) Diameter: 656.2' (200 m) 22 AWG: 330.0' (100.5 m) 18 AWG: 660' (201.2 m) Master Monitor to Farthest Monitor/KB-3SD 0.02" (0.65mm) Diameter: 164' (50 m) 0.04" (1.00 mm) Diameter: 328.1' (100.0 m) 22 AWG: 165.0' (50.3 m) 18 AWG: 330.0' (100.5 m) Master Monitor to Door IF-DA 0.02" (0.65 mm) Diameter: 492.1' (150.0 m) 0.04" (1.00 mm) Diameter: 1181.1' (360.0 m) 22 AWG: 450.0' (137.1 m) 18 AWG: 1,000.0' (304.8 m) |
| Requirements |
Cable
Specify for wiring to both door and inside stations 0.65mmØ to 1.2mmØ (22 to 16 AWG) PE (polyethylene) insulation & Vinyl-sheathed cable Attenuation of less than -6.5 db at 10 MHz at 330' (100 m) Solid core conductor Line Impedance: +/- 75 ? (less than 1000 ? at the highest)
|
| Housing |
Fire-retardant ABS plastic
|
| Dimensions |
7.25 x 7.75 x 3.31" (18.50 x 19.50 x 8.40 cm)
|
| Weight |
1.98 lb (0.89 kg)
|
Packaging Info
| Package Weight |
2.505 lb
|
| Box Dimensions (LxWxH) |
10.6 x 8.1 x 4.2"
|
