Description
Aiphone AX-8M Overview

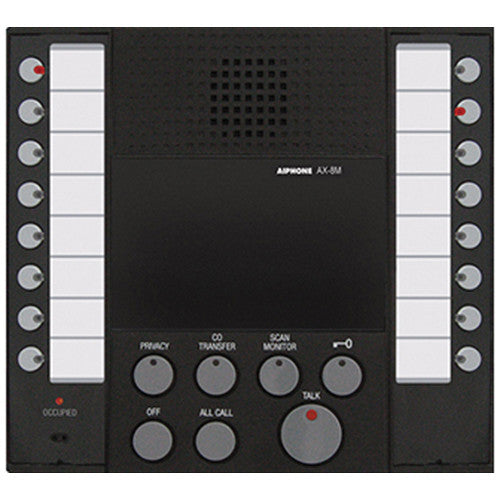

The black AX-8M Audio Master Station from Aiphone is used with the AX Series Integrated Audio/Video Security System and it can be one of the 8 masters (maximum) supported by the system. Each AX-8M Master Station can initiate and answer calls from up to 7 additional master stations and up to 8 door or sub stations. The master can be expanded with AX-16SW Add-On Selectors (sold separately) for a maximum capacity of 120 door/sub stations. Its streamline design is mountable on a wall or desk.
When a door or sub station calls, a tremolo tone rings. The AX-8M Master Station can answer the call from any audio only or audio/video door/sub on the system. Each master station connects via a CAT5e cable homerun to the AX Central Exchange Unit. Feature and operation variables are set with the system setup software and uploaded to the Central Exchange Unit (CEU).
Items Included
- Aiphone AX-8M Audio Master Station for AX Series Integrated Audio/Video Security System (Black)
- Mounting Metal Bracket
- Limited 2-Year Warranty
Additional Resources
No additional resources available
Aiphone AX-8M Specs
| Power Source |
24 VDC supplied from Central Exchange Unit (CEU)
|
| Call Tones |
Tremolo ring tone & blinking LED
|
| Communication |
Open voice hands-free (VOX or Push-to-Talk)
|
| Headset Input |
3.5 mm microphone and speaker jacks
|
| Capacity |
Calling up to 7 additional master stations; up to 120 door / sub stations
|
| Mounting |
Desk with flip-up stands or wall mounts with the included metal bracket
|
| Wall Mount |
2-gang electrical box or ring
|
| Wiring |
CAT5e homerun to CEU
|
| Connection |
RJ-45 jack
|
| Housing |
ABS resin
|
| Operating Temperature |
32 to 104°F (0 to 40°C)
|
| Dimensions |
6.87 x 7.62 x 1.87" (174.49 x 193.54 x 47.49 mm)
|
| Weight |
1.00 lb (0.45 kg)
|
| Package Weight |
1.52 lb
|
| Box Dimensions (LxWxH) |
8.4 x 8.2 x 2.8"
|
