Description
Product Overview

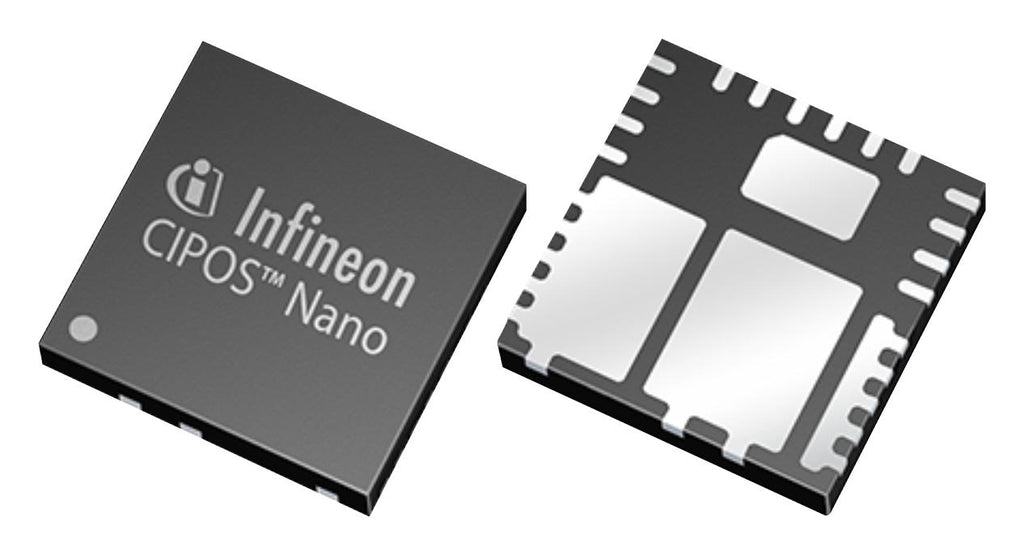

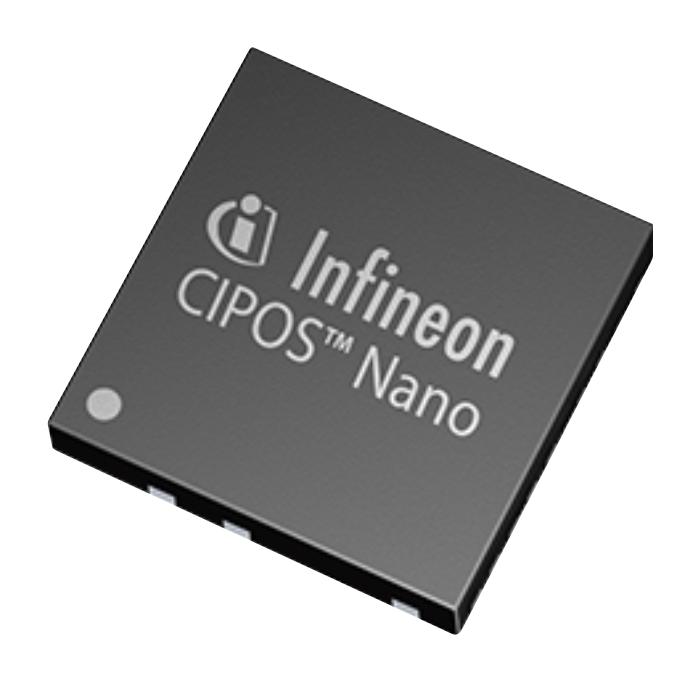

IRSM005-301MHTR is a general purpose half-bridge with an integrated gate driver. It is a general-purpose building block suitable for a variety of low-voltage applications where power density is of critical importance. Typical examples would be advanced motor drives, DC-to-AC and DC to DC converters.
- Package with low thermal resistance and minimal parasitics
- 16mohm typ low on-resistance HEXFETs
- Undervoltage lockout on Vcc and Vbs
- Independent gate drive in phase with logic input
- Gate drive supply range from 10V to 20V
- Propagation delay matched to defined spec
- 3.3V, 5V and 15V logic input compatible
- 27 pin 7x8mm PQFN package
Product details
Other details
| Brand | INFINEON |
| Part Number | IRSM005-301MHTR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
