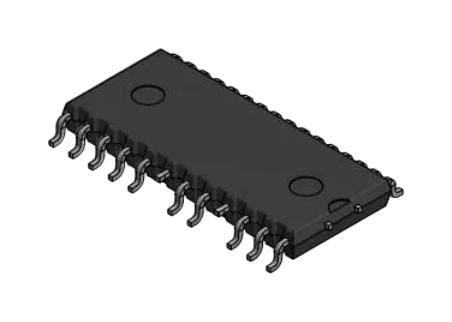

STMICROELECTRONICS STGIPNS4C60T-H Intelligent Power Module (IPM), IGBT, 600 V, 5 A, 1 kVrms, NSDIP, SLLIMM-nano

STGIPNS4C60T-H is a SLLIMM nano IPM, 5 A, 600 V, 3-phase inverter bridge IGBT module. It provides a compact, high-performance AC motor drive in a simple, rugged design. It is composed of six IGBTs and three half-bridge HVICs for gate driving, providing low electromagnetic interference (EMI) characteristics with optimized switching speed. The package is optimized for thermal performance and compactness in built-in motor applications, or other low-power applications where assembly space is limited. This IPM includes an operational amplifier, completely uncommitted, and a comparator that can be used to design a fast and efficient protection circuit. Suitable for 3-phase induction motor (ACIM), dishwasher and refrigerators and freezers applications.

• IPM 5A, 600V, 3-phase inverter IGBT including control ICs for gate driving and freewheeling diodes
• Optimized for low electromagnetic interference
• 3.3V, 5V, 15V CMOS/TTL inputs comparators with hysteresis and pull-down/pull-up resistors
• Undervoltage lockout, internal bootstrap diode and interlocking function
• Shutdown function, comparator for fault protection against overcurrent
• Op-amp for advanced current sensing
• Optimized pinout for easy board layout
• NTC for temperature control (UL 1434 CA 2 and 4)
