Description

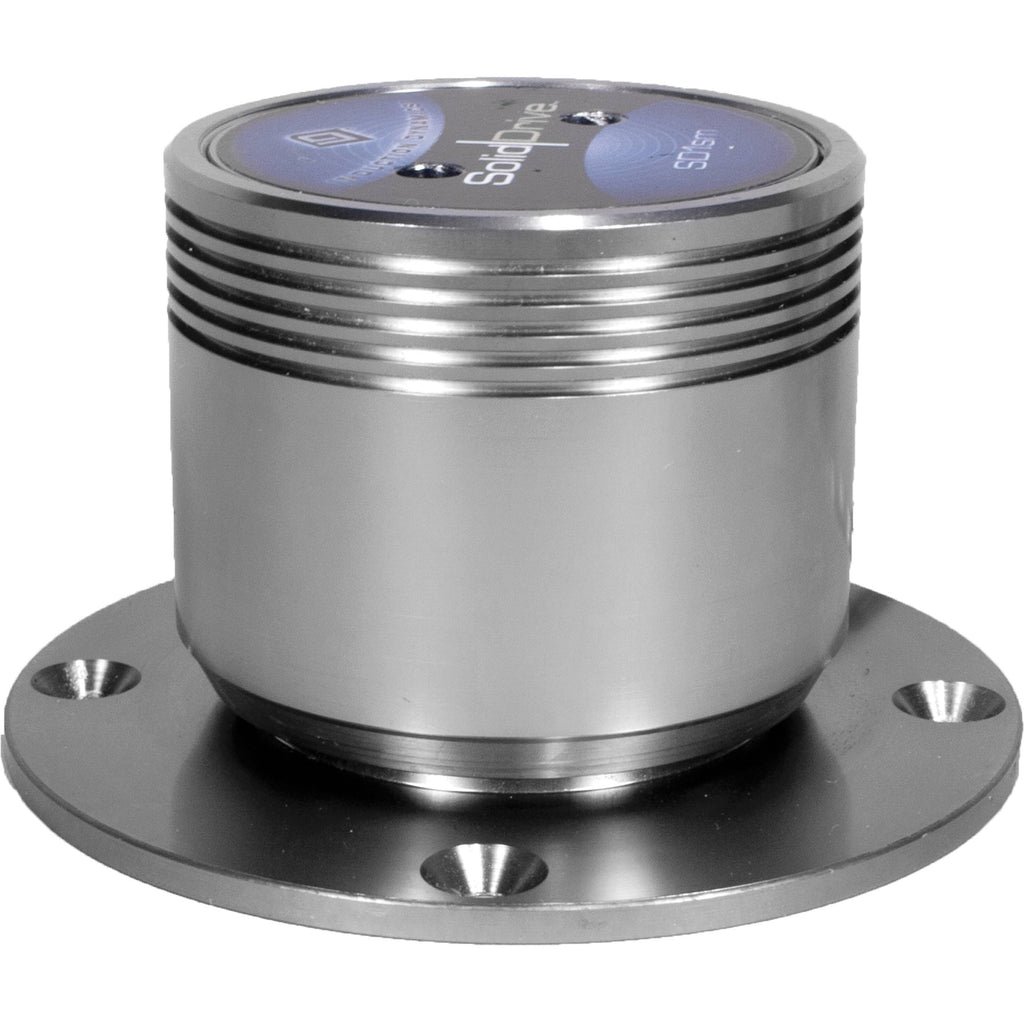

Solid Drive SD1SM Overview
The titanium SD1SM SolidDrive Sound Transducer for Wood / Porous installation from SoundTube Entertainment utilizes dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.
This sound transducer is designed for mounting on wood or porous surfaces, and comes with a direct-Screw aluminum mounting base and a direct screw aluminum mounting base and an attached wiring harness with EuroStyle connector.
The SD1SM Sound Transducer is suitable for use at restaurants, mall stores, auto dealerships, department stores, stadium sky boxes, reception areas, and glass atriums.
In the Box
- Solid Drive SD1SM SolidDrive Sound Transducer for Wood / Porous installation (Titanium)
- Direct-Screw Aluminum Mounting Base
- Limited 7-Year Manufacturer Warranty
Solid Drive SD1SM Specs
| System Type |
On-surface full-range transducer
|
| Impedance |
Nominal: 8 ohms
|
| Sensitivity |
dB @ 2.83 V/1 m: 70 to 75 dB
dB @ 1 W/1 m: 73.5 dB |
| Frequency Response |
70 Hz to 15 kHz
@ -3 dB: 80 Hz to 10 kHz @ -10 dB: 60 Hz to 15 kHz |
| Maximum Power |
Program: 50 W
Continuous RMS: 30 W SPL @ 1 m: 88.5 dB |
| Recommended Amplifier Power |
10 to 100 W
|
| Coverage Angle |
-6 dB @ 2 kHz: 120°
-6 dB @ 10 kHz: 120° |
| Enclosure |
Chrome-plated aluminum
|
| Inputs |
Wire lead with screw connector block
|
| Dimensions |
2.28 x 2.08" (5.79 x 5.28 cm)
|
| Weight |
1.20 lb (0.54 kg)
|
| Package Weight |
1.39 lb
|
| Box Dimensions (LxWxH) |
6.4 x 5.2 x 5"
|
