Description

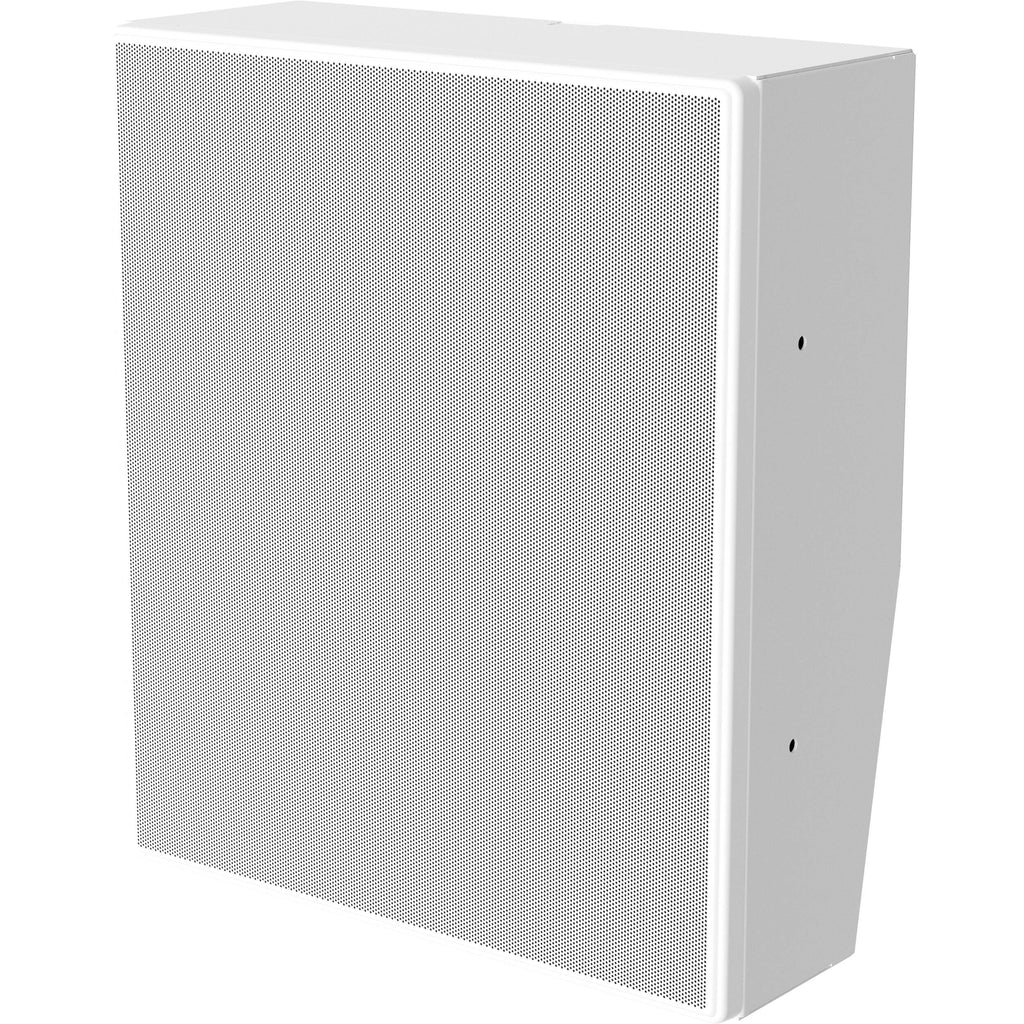

Bogen NQ-S1810WT-G3 Overview
Looking for a PoE in-wall installation speaker with an integrated microphone for talkback? Check out the Bogen Communications NQ-S1810WT-G3, an active 10W VoIP wall baffle speaker that provides superior HD audio quality and seamless integration into the Nyquist ecosystem. Designed to be quick and easy to install, there is no need for external amplifiers, traditional intercom wiring, or transformer taps to manually set or adjust. Simply connect the speaker via Cat 5 cable to a PoE switch or PoE injector, and it's ready to use; volume is controlled via the Nyquist system's Web UI.
The NQ-S1810WT-G3 offers remarkable HD audio quality to provide excellent incoming and outgoing intelligibility. Unlike many other two-way speakers that simply use the speaker as a microphone, the Nyquist Series VoIP speaker use a separate high-performance MEMS microphone to achieve superior, more intelligible talkback audio.
This Gen-3 VoIP speaker also offers a Form-C relay output for controlling/overriding third-party devices such as AV sources. The speaker also allows DHCP deployment for a quick and easy network-based setup. You can let your Nyquist server automatically discover and configure your speaker, or you can manually configure it through the speaker�s web-based user interface (web UI). The web UI also allows easy updating of firmware and setting of parameters for digital signal processing (DSP).
- 10/100 Ethernet connection
- Can be used as a standalone IP endpoint
- PoE Class-3�no local power required, IEEE 802.3af compliant
- DHCP deployment for easy installation
- Pre-assembled for easy installation
- 10W integrated amplifier
- Reset button for restoring factory settings
- Form-C SPDT type 2A at 30 VDC dry contact relay output
- DSP-based noise rejection and voice bandwidth optimization
- MEMS digital microphone for superior talkback audio
- CAN Bus 2.0 Interface connects to Nyquist Digital Call Switches (NQ-E7020)
- 9.2� W x 5.2� D x 10� H
In the Box
- Bogen NQ-S1810WT-G3 Gen-3 VoIP Wall Baffle Speaker with Talkback (White)
- Set of Screws and Washers
- 2 x Flush-Mount Brackets
- Limited 5-Year Manufacturer Warranty
Bogen NQ-S1810WT-G3 Specs
| Active/Passive |
Active
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Color |
White
|
| Active/Passive |
Active
|
| Number of Included Speakers |
1
|
| Speaker Configuration |
Full-Range
|
| Amplifier Power Rating |
10 W
|
| Impedance |
Not Specified by Manufacturer
|
| Enclosure Type |
Sealed
|
| Inputs/Outputs |
RJ45 Input
Screw Terminal Input/Output |
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Certifications |
IEEE802.3af
|
| Operating Temperature |
95°F / 35°C
|
| Color |
White
|
| Mounting |
In-Wall
|
| Rotation Range |
No
|
| Dimensions |
10 x 9.2 x 5.2" / 25.4 x 23.4 x 13.2 cm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
