Description

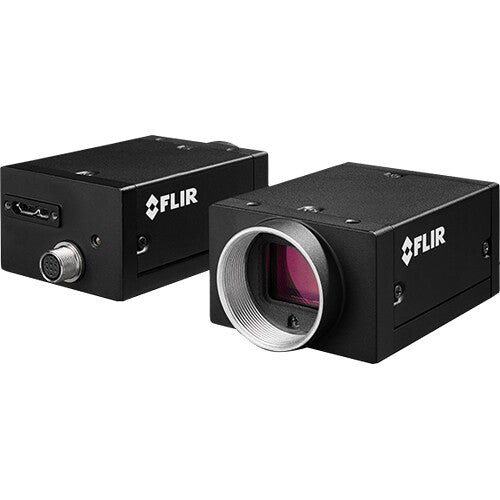

Teledyne Flir GS3-U3-32S4M Overview
The Grasshopper3 USB3 3.2MP Black & White Camera from Teledyne Flir captures up to 2048 x 1536 resolution video and offers micro-USB 3.1 Gen 1 output. Maximum standard frame rate is 121 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the USB3 Vision v1.0 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX252 1/1.8" 3.2MP CMOS black-and-white sensor, two custom user settings, and a global shutter. You can power the camera using a 6-pin Hirose power source or via the USB port.
Internal Camera Features
- Exposure range: 0.005 to 32 seconds
- Flash memory: 2MB non-volatile memory
- Image buffer: 128MB
- Image processing: gamma, lookup table, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- Triggering modes: standard, bulb, overlapped, multi-shot
- User sets: two user configuration sets for custom camera settings
Performance
- Absolute sensitivity threshold (y): 7.97 (Mode 0) / 3.98 (Mode 7)
- Dynamic range: 65.31 (Mode 0) / 71.34 (Mode 7) dB
- Gain range: 0 to 47.994 dB
- Quantum efficiency mono: 70 (Mode 0) / 76 (Mode 7) at 530nm
- Saturation capacity (e-): 10341 (Mode 0) / 10482 (Mode 7)
- Temporal dark noise (read noise): 5.11 (Mode 0) / 2.34 (Mode 7)
Items Included
- Teledyne Flir Grasshopper3 USB3 3.2MP Black & White Camera (C Mount)
- Tripod Mount Adapter
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
Teledyne Flir GS3-U3-32S4M Specs
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 3.2 Megapixel
|
| Lens Mount |
C
|
Recording
| Supports Color Recording |
No
|
| Video Output |
USB
2048 x 1536 |
Exposure Control
| Shutter Type |
Electronic Global Shutter
|
Interface
| Video I/O |
1x Micro-USB 3.0 / 3.1/3.2 Gen 1 Output
|
| Power I/O |
1x Hirose 8-Pin Input
1x Micro-USB Input |
| Other I/O |
1x Micro-USB Output
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
4.5 W
|
Environmental
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
USB3 Vision
|
| Dimensions |
2.3 x 1.7 x 1.1" / 58 x 44 x 29 mm
|
| Weight |
3.2 oz / 90 g
|
