Description

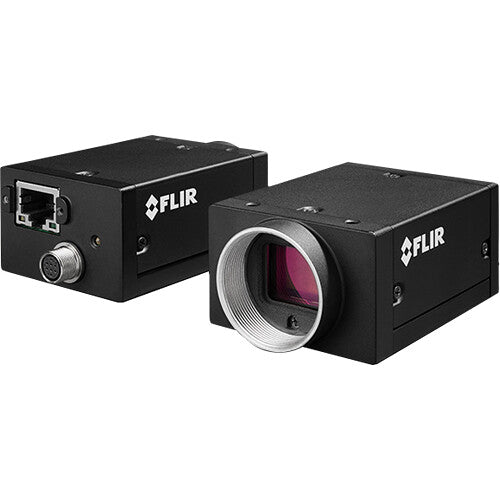

Teledyne Flir Grasshopper3 GIGE Overview
The Grasshopper3 GigE 2.3MP Black & White Camera from Teledyne Flir captures up to 1920 x 1200 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 48 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony Pregius IMX174 1/1.2" 2.3MP CMOS sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 8-pin Hirose power source or via PoE using an optional interface card.
- Exposure range: 0.017 ms to 32 seconds
- Flash memory: 2MB non-volatile memory
- Image buffer: 128MB
- Image processing: gamma, lookup table, hue, saturation, and sharpness
- Partial image modes: pixel binning, ROI
- Triggering Modes: standard, bulb, overlapped, multi-shot
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 20.42 (Mode 0) / 9.75 (Mode 7)
- Dynamic range: 66.57 (Mode 0) / 72.99 (Mode 7) dB
- Gain range: 0 to 29.9 dB
- Quantum efficiency mono: 77 (Mode 0) / 77(Mode 7)% at 525nm
- Saturation capacity (e-): 32488 (Mode 0) / 32691 (Mode 7)
- Temporal dark noise (read noise): 14.74 (Mode 0) / 6.83 (Mode 7)
Items Included
- Teledyne Flir Grasshopper3 GigE 2.3MP Black & White Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Teledyne Flir Grasshopper3 GIGE Specs
| Image Sensor |
1/1.2"-Type CMOS
|
| Sensor Resolution |
Effective: 2.3 Megapixel (1920 x 1200)
|
| Lens Mount |
C with Included Adapter
|
| Image Stabilization |
No
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
1920 x 1200 at 48.00 fps |
| Partial Image Processing |
Pixel Binning/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Compensation Mode |
No
|
| Video I/O |
1x RJ45 LAN Output
|
| Audio I/O |
No
|
| Power I/O |
1x Hirose 8-Pin Input
1x Micro-USB Input |
| Other I/O |
No
|
| Adapter / Cable |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| PoE Support |
PoE 802.3af
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
4.7 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
2.3 x 1.7 x 1.1" / 58 x 44 x 29 mm
|
| Weight |
3.2 oz / 90 g
|
