Description

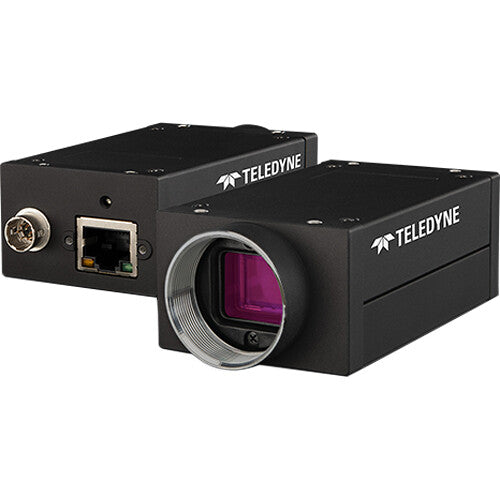

Teledyne Flir Forge 5GigE 5MP Overview
The Forge 5GigE 5MP Black & White Camera from Teledyne Flir captures up to 2448 x 2048 resolution video and offers 5GB Ethernet output. Its maximum standard frame rate is 122 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v2.0 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX547 1/1.8" 5MP CMOS black & white sensor, two custom user settings, gamma, LUTs, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 6 ?s to 30 seconds
- Flash memory: 4MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 500MB
- Image processing: gamma, lookup table, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.66
- Dynamic range: 69.80 dB
- Gain range: 0 to 48 dB
- Quantum efficiency mono: 67.28 at 525nm
- Saturation capacity (e-): 9687
- Temporal dark noise (read noise): 2.54
Items Included
- Teledyne Flir Forge 5GigE 5MP Black & White Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
No additional resources available
Teledyne Flir Forge 5GigE 5MP Specs
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| Lens Mount |
C
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
2448 x 2048 |
| Shutter Type |
Electronic Global Shutter
|
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Voltage |
9.5 to 24.0 VDC
|
| Power Consumption |
8.5 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
2.9 x 1.7 x 1.1" / 74 x 44 x 29 mm
|
| Weight |
4.7 oz / 132 g
|
