Description

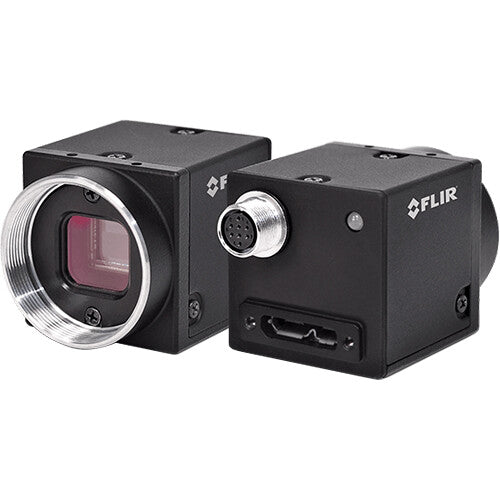

Teledyne Flir FL3-U3-13E4M Overview
The Flea3 USB3 1.3MP Black & White Camera from Teledyne Flir captures up to 1280 x 1024 resolution video and offers micro-USB 3.1 Gen 1 output. Maximum standard frame rate is 60 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the USB3 Vision v1.0 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Teledyne e2v EV76C560 1/1.8" 1.3MP CMOS black-and-white sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera via the USB port
Internal Camera Features
- Exposure range: 0.016 ?s to 1 second
- Flash memory: 1MB non-volatile memory
- Image buffer: 32MB
- Image processing: gamma, lookup table, hue, saturation, and sharpness
- Partial image modes: pixel binning, ROI
- User sets: two user configuration sets for custom camera settings
Performance
- Dynamic range: 50.29 dB
- Gain range: 0 to 18 dB
- Quantum efficiency mono: 59 at 530nm
- Saturation capacity (e-): 8384.44
- Temporal dark noise (read noise): 25.14
Items Included
- Teledyne Flir Flea3 USB3 1.3MP Black & White Camera (C-Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
Teledyne Flir FL3-U3-13E4M Specs
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 1.3 Megapixel
|
| Lens Mount |
C
|
Recording
| Supports Color Recording |
No
|
| Video Output |
USB
1280 x 1024 |
Exposure Control
| Shutter Type |
Electronic Global Shutter
|
Interface
| Video I/O |
1x Micro-USB 3.0 / 3.1/3.2 Gen 1 Output
|
| Power I/O |
1x Micro-USB Input
|
| Other I/O |
1x Micro-USB Input/Output
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
5.0 to 24.0 VDC
|
| Power Consumption |
3 W
|
Environmental
| Operating Conditions |
32 to 113?F / 0 to 45?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
USB3 Vision
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.4 oz / 41 g
|
