Description

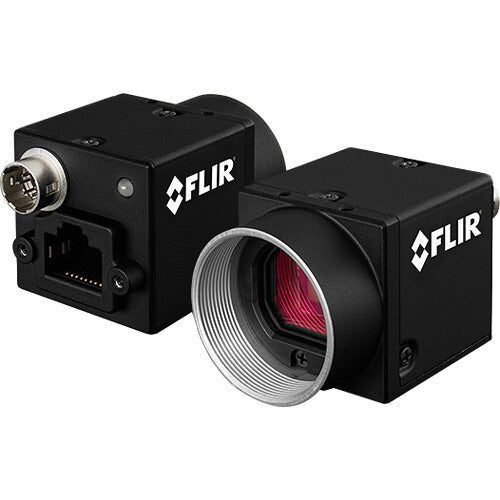

Teledyne Flir Blackfly GigE 3.2MP Overview
The Blackfly GigE 3.2MP Color Camera from Teledyne Flir captures up to 2048 x 1536 resolution video and offers Gigabit Ethernet output. Maximum standard frame rate is 35 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX265 1/1.8" CMOS color sensor, two custom user settings, gamma, LUT, hue, saturation, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
Internal Camera Features
- Exposure range: 0.018 ms to 11.9 seconds
- Flash memory: 512KB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 16MB
- Image processing: gamma, lookup table, hue, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- White balance: manual, automatic (AWB)
Performance
- Absolute sensitivity threshold (y): 4.29
- Dynamic range: 70.80 dB
- Gain range: 0 to 47.99 dB
- Quantum efficiency blue: 52% at 470 nm
- Quantum efficiency green: 66% at 525 nm
- Quantum efficiency red: 57% at 630 nm
- Saturation capacity (e-): 9614
- Temporal dark noise (read noise): 2.27
Items Included
- Teledyne Flir Blackfly GigE 3.2MP Color Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
Teledyne Flir Blackfly GigE 3.2MP Specs
Imaging
| Image Sensor |
1/1.8"-Type CMOS
|
| Sensor Resolution |
Effective: 3.2 Megapixel
|
| Lens Mount |
C
|
Recording
| Video Output |
RJ45
2048 x 1536 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
Exposure Control
| Shutter Type |
Electronic Global Shutter
|
Interface
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
5.0 to 16.0 VDC
|
| Power Consumption |
2.5 W
|
Environmental
| Operating Conditions |
32 to 113?F / 0 to 45?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.3 oz / 36 g
|
