Description

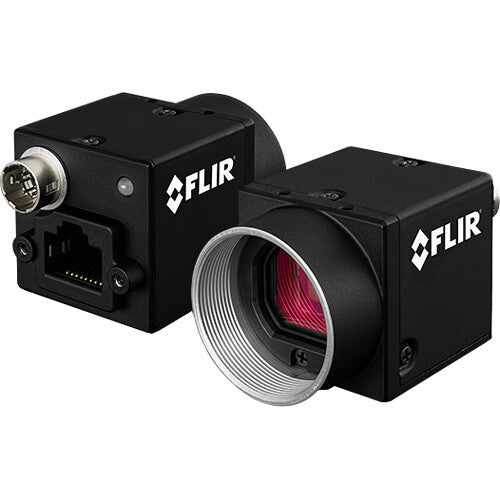

Teledyne Flir Blackfly GigE 2.3MP Overview
The Blackfly GigE 2.3MP Black & White Camera from Teledyne Flir captures up to 1920 x 1200 resolution video and offers Gigabit Ethernet output. Maximum standard frame rate of 41 fps. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX249 1/1.2" CMOS black-and-white sensor, two custom user settings, manual/auto gain, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
Internal Camera Features
- Exposure range: 0.019 ?s to 32 seconds
- Flash memory: 512 KB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 16MB
- Image processing: gamma, lookup table, saturation, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
Performance
- Absolute sensitivity threshold (y): 10.72
- Dynamic range: 67.71 dB
- Gain range: 0 to 29.9 dB
- Quantum efficiency mono: 70.14 at 530 nm
- Saturation capacity (e-): 33,022
- Temporal dark noise (read noise): 7.02
Items Included
- Teledyne Flir Blackfly GigE 2.3MP Black & White Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Not Included
-
LensesEssential
Additional Resources
No additional resources available
Teledyne Flir Blackfly GigE 2.3MP Specs
Imaging
| Image Sensor |
1/1.2"-Type CMOS
|
| Sensor Resolution |
Effective: 2.3 Megapixel
|
| Lens Mount |
C
|
Recording
| Supports Color Recording |
No
|
| Video Output |
RJ45
1920 x 1200 |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
Exposure Control
| Shutter Type |
Electronic Global Shutter
|
Interface
| Video I/O |
1x RJ45 LAN Output
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
Power
| Voltage |
5.0 to 16.0 VDC
|
| Power Consumption |
2.5 W
|
Environmental
| Operating Conditions |
32 to 113?F / 0 to 45?C at 20 to 80% Humidity
|
General
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.2 x 1.1 x 1.1" / 30 x 29 x 29 mm
|
| Weight |
1.3 oz / 36 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 95417.7 |
| 3-5 | ₹ 94444.05 |
| 5-10 | ₹ 92496.75 |
| 10+ | ₹ 90549.45 |
Bulk discount will be automatically applied during checkout based on quantity.
