Description

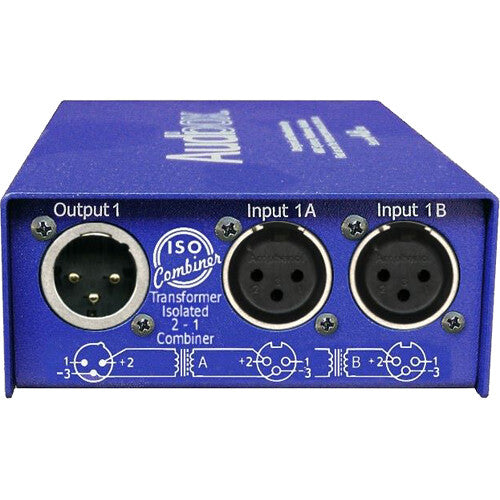

ARX ISO COMBINER Overview
The ARX Audiobox ISO Combiner is a single-channel, transformer-isolated passive combiner designed to solve common audio routing challenges in professional environments. It allows two balanced XLR sources to be combined into one without noise, hum, or signal degradation?ideal for applications where two signals need to share a single input.
This compact, passive unit requires no power to operate. It features a pair of transformer-balanced female XLR inputs and a single transformer-isolated male XLR output, ensuring clean, electrically isolated signal combining.
Built for real-world use, the ISO Combiner is housed in a heavy-duty steel chassis with a textured matte powder coat finish, hardwearing epoxy screen printing, and slip-resistant rubber pads. Additional installation-friendly features include a Kensington-type security slot and optional under-table mounting bracket.
- Combines two balanced XLR inputs
- Transformer-isolated output for clean audio
- Totally passive?no power required
- Heavy-duty steel construction
- Matte powder coat finish and rubber feet
- Ideal for live sound, install, and broadcast
- Compact, road-ready design
- Kensington lock slot for security
- Optional under-table mounting bracket available
Items Included
- ARX Audiobox ISO Combiner Single-Channel Signal Combiner
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX ISO COMBINER Specs
| Inputs |
2 x Female XLR, Wired Pin 1 Not Connected, Pin 2 + Hot, Pin 3 - Cold
|
| Output |
Male XLR, Wired Pin 1 Chassis Ground, Pin 2 + Hot, Pin 3 - Cold
|
| Frequency Response |
20 Hz to 20 kHz
|
| Input Impedance |
600 Ohms Balanced
|
| Maximum Input Level |
+20 dB
|
| THD |
Maximum: 0.2% 30 Hz to 20 kHz
|
| Color |
Blue
|
| Material of Construction |
Steel Chassis
|
