Description
ARX ISO Balancer VC Overview
The ARX Audibox ISO Balancer VC is a passive, stereo interface designed to convert unbalanced audio signals to balanced, low-impedance outputs?now with an integrated volume control for precise level matching. It?s the ideal solution for applications where direct control over monitor or speaker volume is needed but not easily available, such as DJ setups, corporate AV systems, or fixed audio installations.
Level Control for DJ and AV Setups
Traditional DJ mixers often provide only one variable master output and a fixed-level booth or record output, making it difficult to adjust monitor speaker levels independently. The ISO Balancer VC solves this by allowing DJs to directly control their monitor output volume without sacrificing signal quality. It's also an essential tool in installed systems where CD players, laptops, or media devices feed powered speakers without any built-in volume adjustment.
Transformer Isolation and Ground-Hum Elimination
Equipped with high-quality transformers, the ISO Balancer VC provides galvanic isolation to eliminate ground-loop hum and protect against interference. It features stereo RCA inputs and balanced XLR outputs for compatibility with consumer and professional gear alike. A ground-lift switch is included to further suppress hum in complex AV environments. The onboard volume control lets users adjust output level smoothly?from full signal down to zero?without introducing noise or distortion.
Rugged and Installation-Ready
Built in a heavy-duty, powder coated steel chassis with durable epoxy labeling and a slip-resistant rubber basepad, the ISO Balancer VC is designed for professional use on the road or in permanent installations. It's completely passive and requires no power. For added security, it features a Kensington-type lock slot and supports optional under-table mounting brackets.
Additional Features
- Converts unbalanced stereo to balanced stereo
- Variable output level control
- Transformer-isolated XLR outputs
- RCA stereo inputs
- Audio ground-lift switch
- Fully passive?no power required
- Heavy-duty steel chassis with slip-resistant base
- Kensington lock slot and optional mount bracket
Uses
- DJ monitor level control
- Corporate AV source interfacing
- Controlling volume of powered speakers
- Eliminating ground-loop hums in fixed installs
Items Included
- ARX Audibox ISO Balancer VC
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX ISO Balancer VC Specs
General
| Control Type |

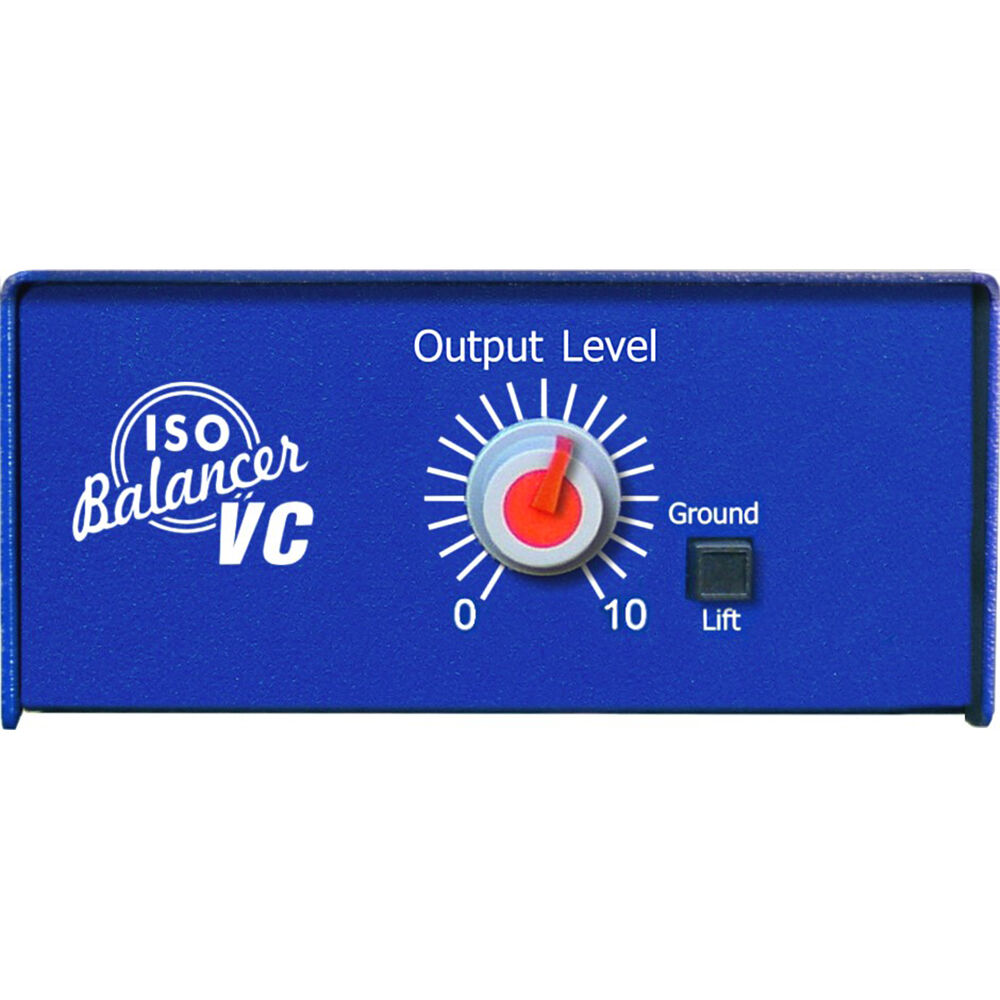

Front-Panel Output-Level Control
|
| Inputs |

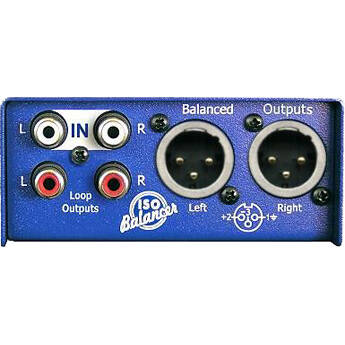

Stereo RCA Connectors, RCA Ground Connected to XLR Pin 1
|
| Outputs |
Stereo 3-Pin Male XLR, Wired Pin-1 Ground, Pin-2 + Hot, Pin-3 - Cold
Stereo RCA Connectors (Loop Outputs) |
| Maximum Input Level |
+12 dB
|
| Frequency Response |
20 Hz to 20 kHz (? 0.5 dB)
|
| Input Impedance |
10 Kilohms (Unbalanced)
|
| Output Impedance |
10 Kilohms (Balanced)
|
| THD |
0.2% Maximum THD (0 dB, 1 kHz)
|
| Insertion Loss |
0.75 dB at 1 kHz (600-Ohm Load)
|
| Construction |
All-Steel Powder-Coated Chassis, Fiberglass PCB
|
Physical
| Color |
Blue
|
| Material of Construction |
Steel
|
