Description
ARX SuperSplitter Overview

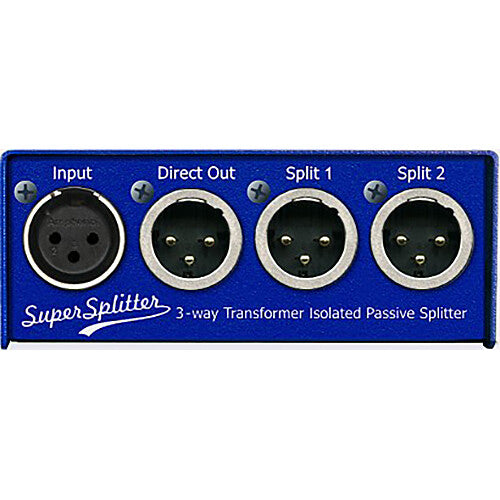

The ARX Audibox SuperSplitter is a rugged, passive single-channel audio splitter designed to deliver clean, hum-free signal distribution with complete galvanic isolation. Ideal for broadcast split feeds, remote recording, or any professional application requiring noise-free audio splits, the SuperSplitter provides a reliable and compact solution when one input needs to be shared across multiple destinations.
Built around a high-quality, broadcast-grade transformer?identical to those used in ARX?s acclaimed MSX 48 and MSX 12 splitters?the SuperSplitter ensures consistent, isolated signal paths. The unit features one transformer-isolated input, one direct loop-through output, and two fully isolated outputs on XLR connectors.
Thanks to its internal loop-through wiring, the direct output passes +48 VDC phantom power back to condenser microphones or active DI boxes without compromising isolation on the other outputs. Housed in a durable all-steel chassis with slip-resistant rubber feet and optional under-table mounting, this compact tool is built for demanding professional environments.
- One XLR input to three XLR outputs (1 direct, 2 isolated)
- Broadcast-quality transformer isolation prevents ground loops and hum
- Phantom power pass-through supported via direct output
- Galvanically isolated outputs with no ground connection on XLR pin 1
- Same audio transformer as ARX MSX 48 and MSX 12 splitters
- Rugged steel chassis with textured matte polyurethane finish
- Optional security bracket for fixed installations
- Hand-built in Australia
Items Included
- ARX Audibox SuperSplitter Transformer-Isolated Splitter (Single Channel)
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX SuperSplitter Specs
| Input Impedance |
300 Ohms
|
| Frequency Response |
30 Hz to 20 kHz (?1 dB)
|
| Maximum Output Level |
+20 dBm
|
| THD |
At Maximum Output Level: 0.2% (30 Hz to 20 kHz at 20 dBm)
|
| Insertion Loss |
0.5 dB at 1 kHz (600-Ohm Source and Load)
|
| Input Connectors |
3-Pin XLR Female Wired Pin 2 + Hot, Pin 3 - Cold
|
| Output Connectors |
Direct Output: 3-Pin Male XLR Wired Pin 2 + Hot, Pin 3 - Cold
Split 1 and Split 2: 3-Pin Male XLR Wired Pin 2 + Hot, Pin 3 - Cold Audio Grounds Not Connected, Pin 1 Is Floating |
| Color |
Blue
|
| Material of Construction |
Steel Chassis
|
