Description

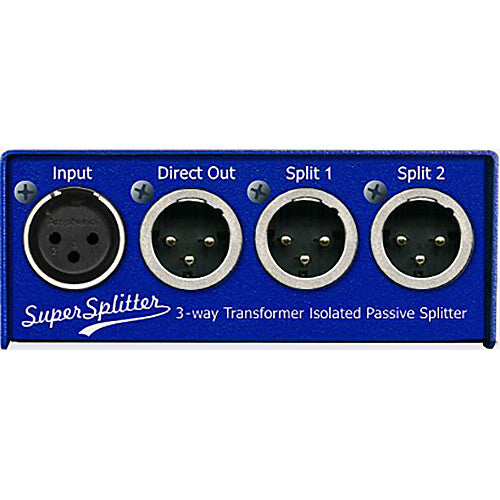

ARX SuperSplitter DUO Overview
The ARX Audibox SuperSplitter DUO is a passive, dual-channel audio splitter designed for professional applications requiring clean, noise-free signal routing with full galvanic isolation. Ideal for broadcast, live sound, and remote recording scenarios, the SuperSplitter DUO provides two independent channels of 1-in/3-out transformer-isolated signal splitting in a compact, road-ready format.
Each channel features one transformer-isolated input, one direct loop-through output, and two transformer-isolated XLR outputs. The direct outputs are internally looped from the inputs, allowing +48 VDC phantom power to pass through for condenser microphones and active DI boxes?without affecting the isolated outputs.
Built with the same broadcast-quality audio transformers found in ARX?s industry-standard MSX 48 and MSX 12 splitters, the SuperSplitter DUO ensures excellent audio performance and reliable isolation. The rugged all-steel housing uses ARX?s compact Double Header format, finished in a textured polyurethane coating and fitted with a non-slip rubber base. An optional under-table mounting bracket is available for secure installation.
- Two independent 1-in/3-out splitter channels
- Each channel includes 1 direct and 2 transformer-isolated XLR outputs
- Broadcast-grade transformer isolation eliminates ground loops and hum
- Phantom power pass-through supported on each channel via direct output
- Galvanically isolated outputs with no ground connection on XLR pin 1
- Uses the same high-performance transformers as ARX MSX series
- Durable all-steel chassis in ARX Double Header format
- Slip-resistant base and optional mounting bracket
- Hand-built in Australia
Items Included
- ARX Audibox SuperSplitter DUO Transformer-Isolated Splitter (Dual Channel)
- Limited 12-Month Manufacturer Warranty (Labor)
- Limited 24-Month Manufacturer Warranty (Parts)
Additional Resources
No additional resources available
ARX SuperSplitter DUO Specs
| Input Impedance |
300 Ohms
|
| Frequency Response |
30 Hz to 20 kHz (?1 dB)
|
| Maximum Output Level |
+20 dBm
|
| THD |
At Maximum Output Level: 0.2% (30 Hz to 20 kHz at 20 dBm)
|
| Insertion Loss |
0.5 dB at 1 kHz (600-Ohm Source and Load)
|
| Input Connectors |
2 x 3-Pin XLR Female Wired Pin 2 + Hot, Pin 3 - Cold
|
| Output Connectors |
2 x Direct Output: 3-Pin Male XLR Wired Pin 2 + Hot, Pin 3 - Cold
2 x Split 1 and Split 2: 3-Pin Male XLR Wired Pin 2 + Hot, Pin 3 - Cold Audio Grounds Not Connected, Pin 1 Is Floating |
| Color |
Blue
|
| Material of Construction |
Steel Chassis
|
