Description
RTW TMR7OEM Overview

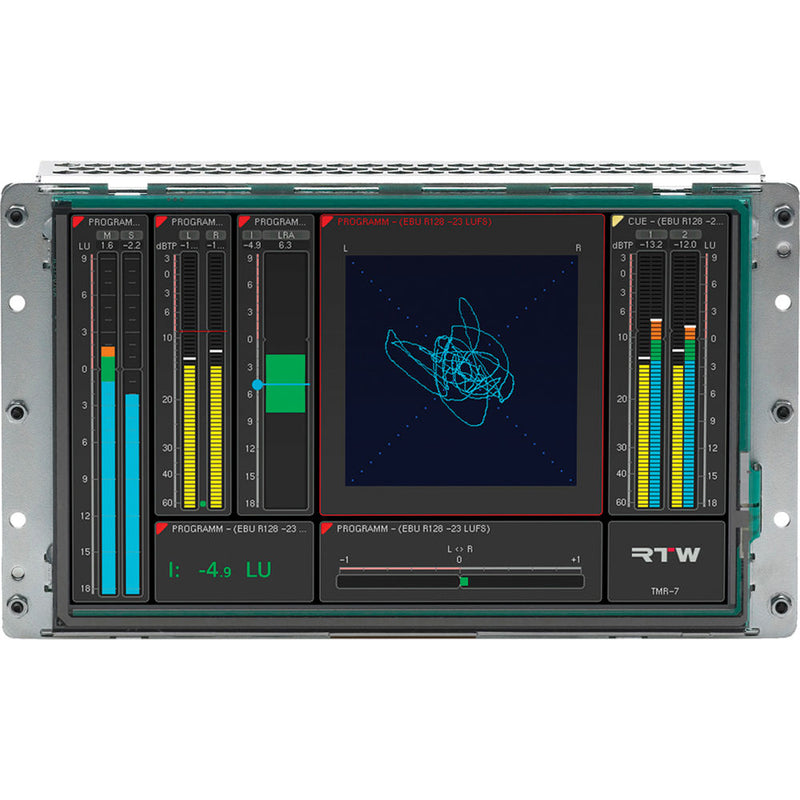

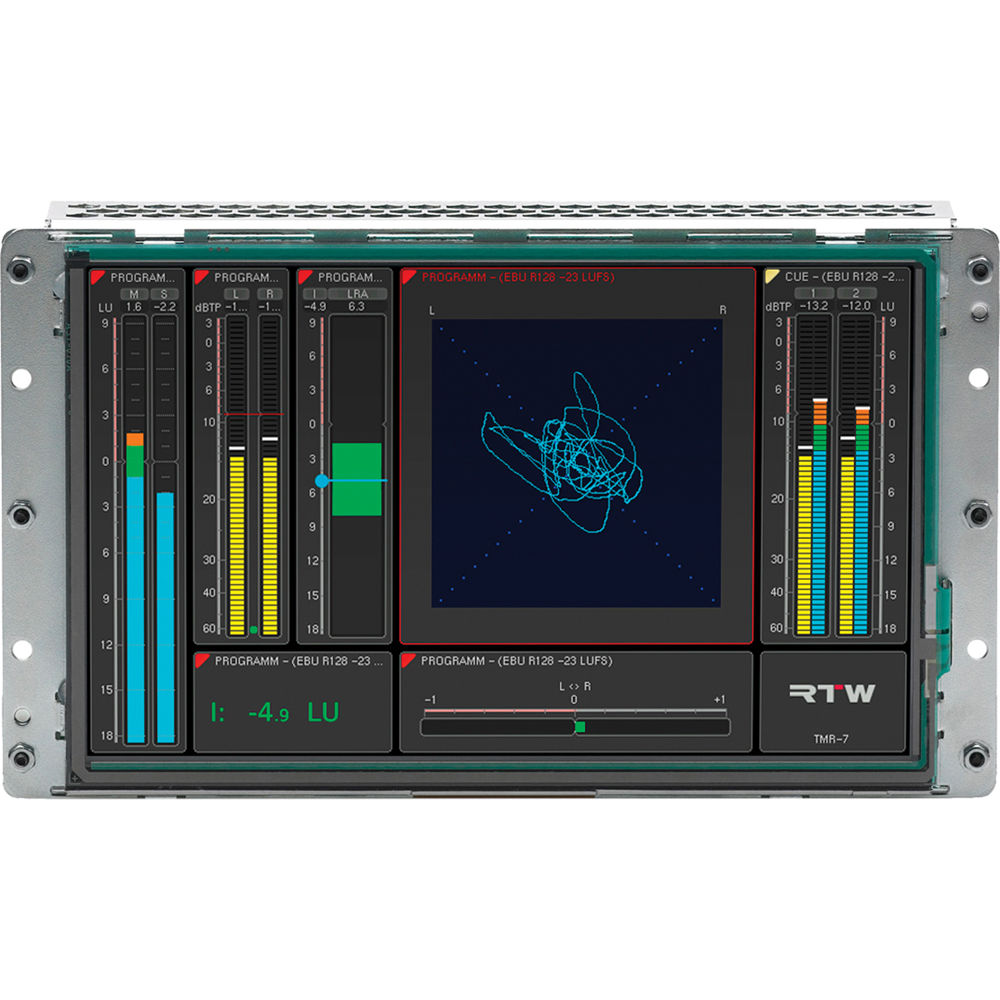

The RTW TMR7OEM TouchMonitor Audio Analyzer is a rackmountable 7" audio monitoring visual touch screen (16 : 9 TFT) which includes a panel-mount and easy-to-use (GUI) graphical interface. Connection of various signal sources is achieved through Ethernet, VGA, 2 x USB 2.0, GPIO, and 24 VDC connectors. The TouchMonitor also has a mounted 4-channel audio interface consisting of 4 digital inputs (2 x AES3 In, XLR-F) and 4 digital outputs (2 x AES3 Out, XLR-M) and is a 4-channel metering solution for broadcast environments which includes loudness, true peak, PPM, vectorscope, moving-coil instruments, RTA, and correlation.
The TouchScreen is designed to integrate all metering options required in radio broadcasting. Its two AES3 digital inputs allow for parallel monitoring of the on-air signal and a PFL source and are flexibly configurable for mono, stereo, or multichannel sources, providing separate instruments for each source. Plus, the GPIO interface for overall control, the Ethernet port, and the VGA output for external display units offer even more functionality.
Due to its versatile interfaces, the TMR7 simplifies integration into any studio environment. The TouchMonitor is designed to be intuitive in its operation and also offers a high range of flexibility. Freely scalable instruments can be moved to any position on the graphical surface, allowing you to personalize the entire screen area. Views, scaling, and metering standards are separately definable for each signal source. In addition, the convenient on-screen help function supports you during the setup whenever needed.
The hardware and software of the TMR7 TouchMonitor are specifically adjusted to radio-broadcast requirements. The standard software includes basic stereo PPM with analog scales (DIN +5, Nordic, British IIa, British IIb) and digital scales (0 to -60 dB, +3 to -60 dB TruePeak, quasi-DIN, quasi-Nordic, quasi-British IIa and IIb), peak hold, phase meter (correlator), a global keyboard, and gain reduction. Other software modules are available as options.
Items Included
- RTW TMR7OEM TouchMonitor 7" Audio Analyzer (OEM Version)
- Limited 2-Year Warranty
Additional Resources
No additional resources available
RTW TMR7OEM Specs
| Input Source |
Display via XLR audio interface (AES3)
|
| Peak Meter |
2-Channel: For the defined Stereo channel pair L/R
|
| Display |
Peak level
Peak hold Numerical value of the display |
| Function |
Gain
Peak hold on/off Memory Reset |
| Word Width |
24 Bit
|
| Scales |
TP60: +3 to -60 dB
Dig60: 0 to -60 dB DIN5: +5 to -50 dB Nordic: +12 to -42 dB BR IIa: 7 to 1, BRIIa ext: 7 to 1 BR IIb: +12 to -12 dB, BR IIb +12 to -12 dB |
| Headroom |
Adjustable in the range from 0 to -20 dB in steps of 1 dB
|
| Operation Range |
Adjustable in the range from 0 to -20 dB in steps of 1 dB
|
| Integration Time |
According to standard or 20 ms, 10 ms, 1 ms, 0.1 ms
|
| Gain |
+20 dB, +40 dB (according to standard)
|
| High Pass Filter |
Off, 5 Hz, 10 Hz, 20 Hz
|
| Peak Hold Indicator |
1 , 2 , 4 , 10 , 20 , 30 sec, Manual reset or off
|
| Over Indicator Hold Time |
1 sec or manual
|
| Over Indicator PPM |
Threshold: Full scale, full scale -1LSB, full scale -2LSB, -0.1 dBFS, -0.5 dBFS, -1 dBFS, -2 dBFS, -3 dBFS
Attack Time: 1 to 15 samples Word Width: 16 to 24 bit, selectable |
| Over Indicator True Peak |
Threshold: Adjustable
|
| AES3 Status Monitor Display |
Channel data are displayed as plain text, hex or binary
Channel selectable Audio bit activity Hardware status |
| Gain Reduction |
Display: 1 Bargraph for stereo and surround formats, up to 8 bargraphs in multi-channel mode
Input: Data stream via TCP/IP and LAN (ethernet) interface Input Routing: External featured streams selectable Marker: Adjustable threshold for the definition of upper and lower display section Colors: 32 Colors for each bargraph section |
| Power Requirements |
+24 VDC
|
| Current Drain |
1 A nominal, 2.5 A power-up current (10 ?sec)
|
| Display |
7'' TFT touch screen 16:9 (800 x 480 pixel)
|
| Connectors |
1 x 15-pin Sub-D female; VGA output

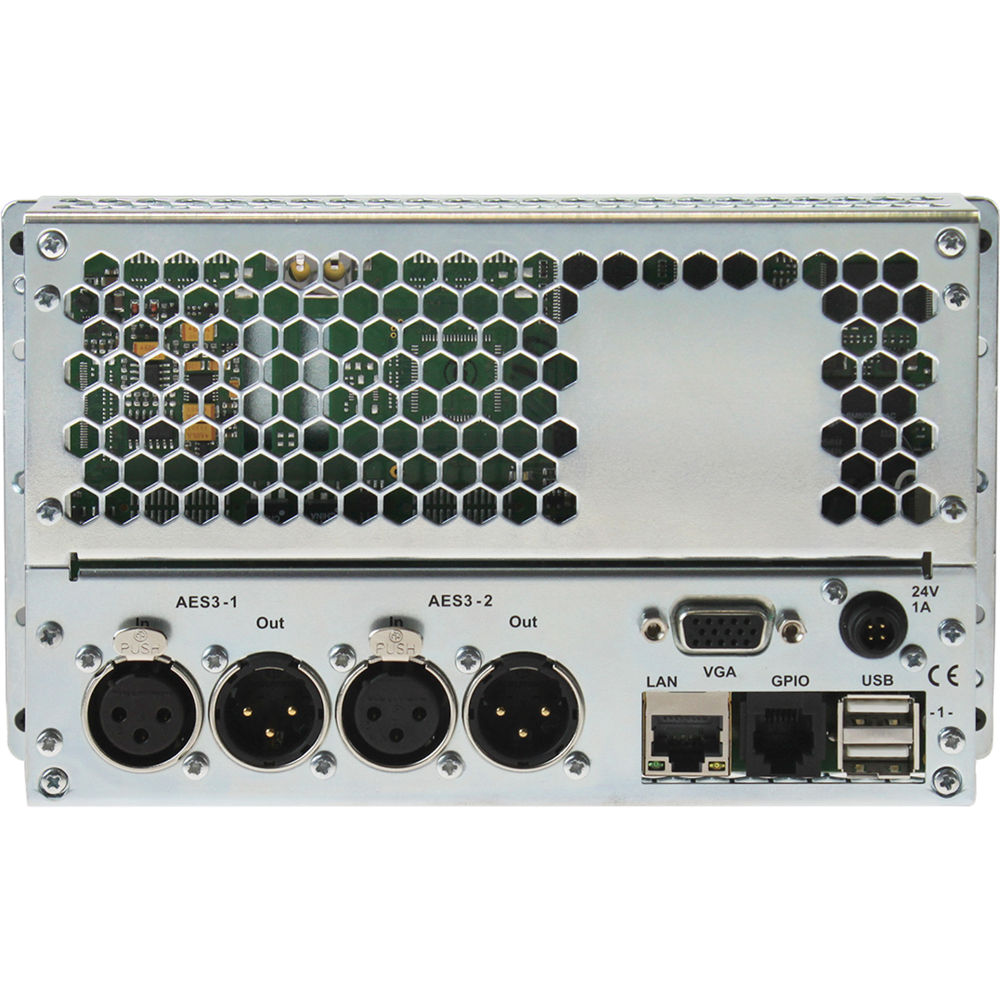

1 x 4-pin locking low voltage connector type Binder 710 (DC) 2 x USB tpe A 2.0 1 x GPIO RJ-11 1 x LAN RJ-45 2 x 25-pin Sub-D female (2 x AES3 input) 2 x 25-pin Sub-D female (2 x AES3 output) |
| Sampling Rates |
Digital Input: 44.1, 48, 96 kHz
Digital Output: Referenced to digital inputs or internal clock |
| Reference Level |
0 dBu to +10 dBu adjustable range
|
| Impedance |
> 10 k?, electronically balanced
|
| Operating temperature |
+41 to +104°F (+5 to +40°C)
|
| Dimensions |
7.4 x 4.3 x 1.8" (188 x 109 x 45 mm)
|
| Weight |
3.9 lb (1.8 kg)
|
