RTW TMR7 Overview

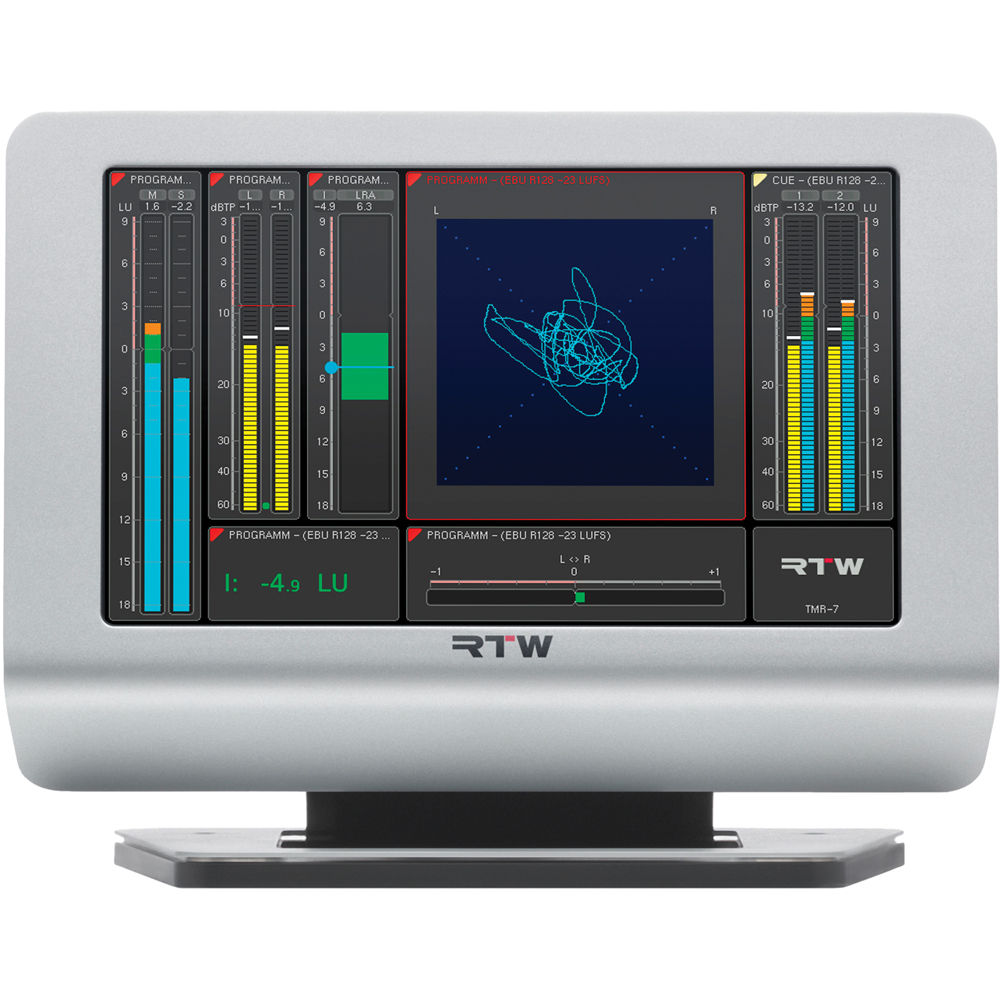

The RTW TMR7 TouchMonitor is a table-top 7" audio monitoring visual touch screen (16 : 9 TFT) which includes a moveable table-stand and a designed to be easy-to-use (GUI) graphical interface, and a mains adapter. Connection of various signal sources is achieved through Ethernet, VGA, 2 x USB 2.0, GPIO, and 24 VDC connectors. The TouchMonitor also has a mounted 4-channel audio interface consisting of 4 digital inputs (2 x AES3 In, XLR-F) and 4 digital outputs (2 x AES3 Out, XLR-M) and is a 4-channel metering solution for broadcast environments which includes loudness, true peak, PPM, vectorscope, moving-coil instruments, RTA, and correlation.
The TouchScreen is designed to integrate all metering options required in radio broadcasting. Its two AES3 digital inputs allow for parallel monitoring of the on-air signal and a PFL source and are flexibly configurable for mono, stereo, or multichannel sources, providing separate instruments for each source. Plus, the GPIO interface for overall control, the Ethernet port, and the VGA output for external display units offer even more functionality.
Due to its versatile interfaces, the TMR7 simplifies integration into any studio environment. The TouchMonitor is designed to be intuitive in its operation and also offers a high range of flexibility. Freely scalable instruments can be moved to any position on the graphical surface, allowing you to personalize the entire screen area. Views, scaling, and metering standards are separately definable for each signal source. In addition, the convenient on-screen help function supports you during the setup whenever needed.
The hardware and software of the TMR7 TouchMonitor are specifically adjusted to radio-broadcast requirements. The standard software includes basic stereo PPM with analog scales (DIN +5, Nordic, British IIa, British IIb) and digital scales (0 to -60 dB, +3 to -60 dB TruePeak, quasi-DIN, quasi-Nordic, quasi-British IIa and IIb), peak hold, phase meter (correlator), a global keyboard, and gain reduction. Other software modules are available as options.
Where space is an issue, the footprint of the TMR7 has been minimized to approx. 7.80 x 5.49 (6.42) x 1.81 (3.74)" (with table-stand).
Items Included
- RTW TMR7 TouchMonitor 7" Tabletop TouchScreen Monitor
- Movable Table-Stand
- Power Supply
- Limited 2-Year Warranty
Additional Resources
No additional resources available
RTW TMR7 Specs
| Power Requirements |
+24 VDC (external 2 A max. overcurrent protective device shall be installed!)
|
| Current Drain |
1 A nominal, 2.5 A power-up current (10 ?sec.)
|
| Power Dissipation |
approx. 8,5 W (w/o SDI), approx. 11 W (with SDI
|
| Dimensions |
Approx. with stand: 7.8 x 5.49 to 6.43 x 1.81 to 3.74"
(198 x 139.5 to 163 x 46 to 95 mm) |
| Weight |
Approx.without mains adapter: 5.95 lb (2.7 kg)
|
| Display |
7'' TFT touch screen 16:9 (800 x 480 pixel)
|
| Connections |
1 x 15-pin Sub-D-F VGA output with 800 x 480 pixel, 65.536 colors, 60 Hz

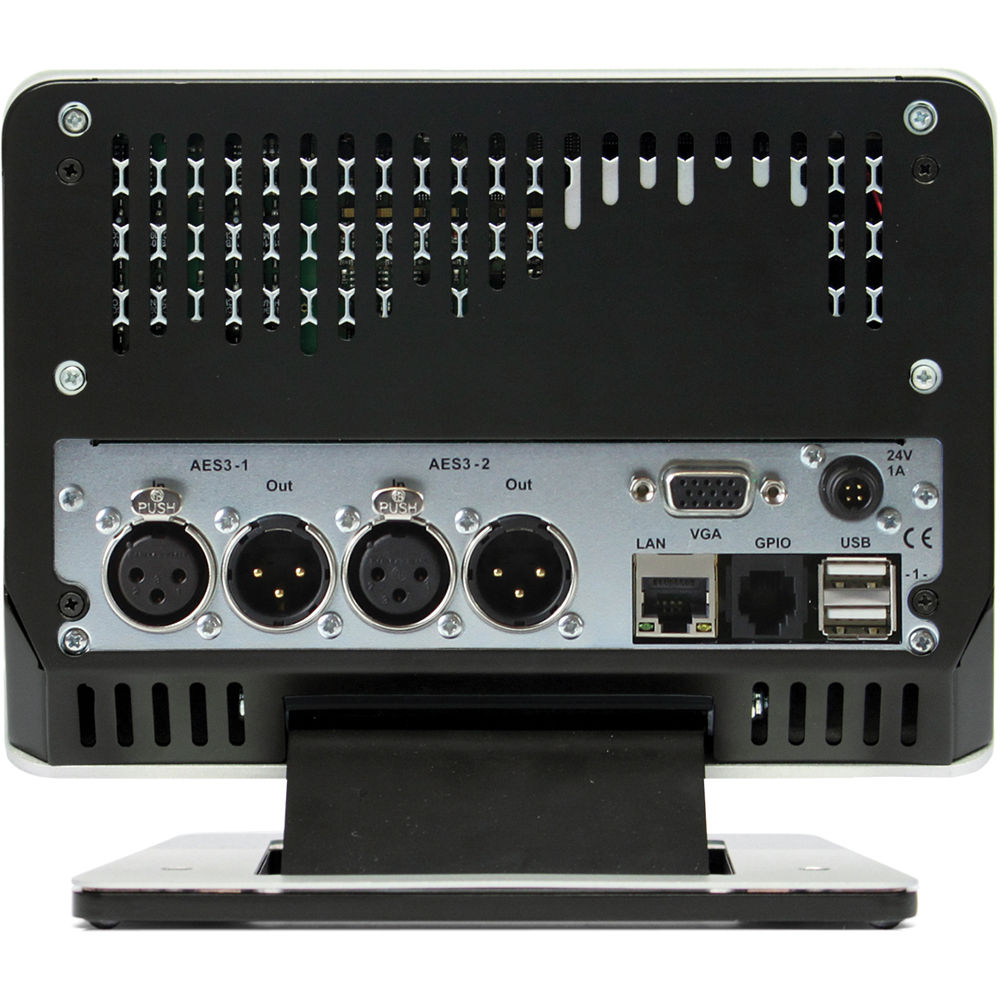

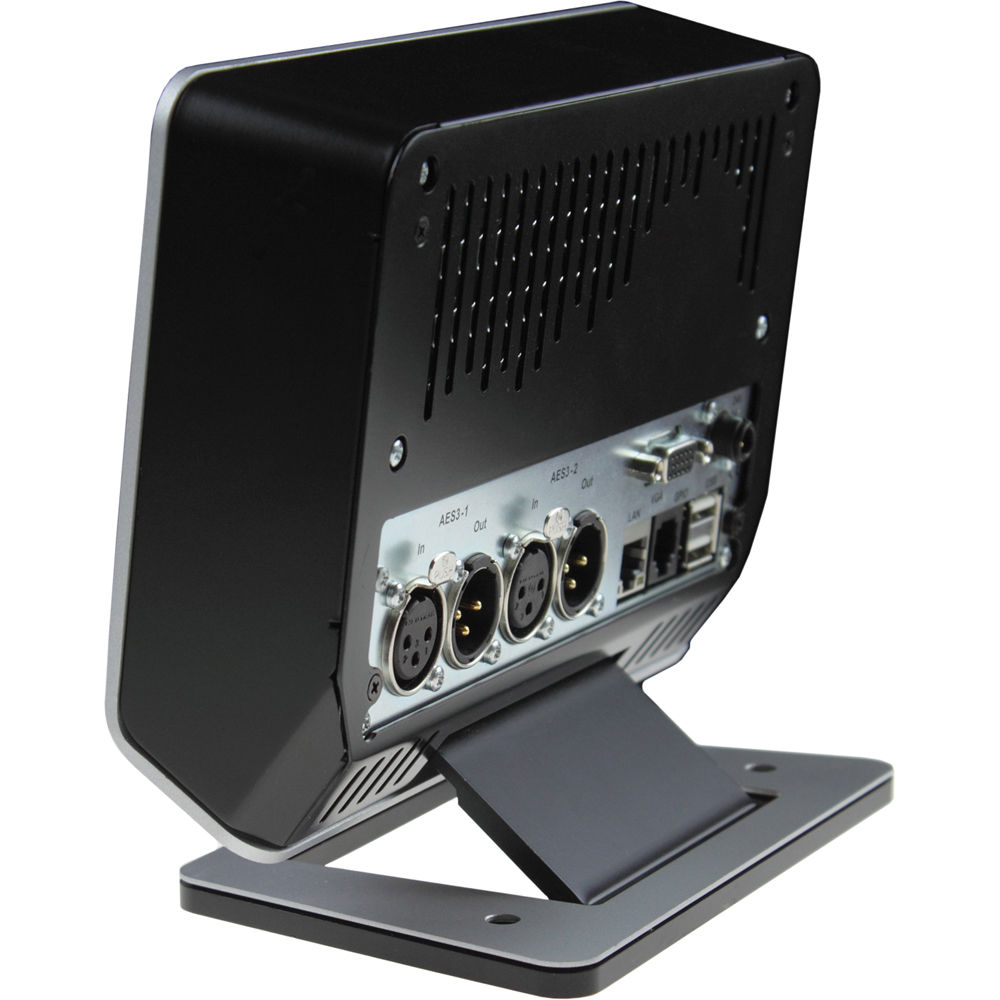

for connection of an optional external 16:9 VGA monitor, selectable 4:3 mode 1 x 4-pin locking low voltage connector type Binder 710 (DC) 2 x USB A; USB 2.0 Full Speed connectors for: � USB memory sticks (license handling, preset export and import, software updates) � external computer mouse for operating � external Wacom graphics tablet 1 x GPIO (RJ-11-6P6C) for defined functions or preset recall 1 x LAN (RJ-45) 2 x XLR-F (2 x AES3 In) 2 x XLR-M (2 x AES3 Out) |
| Operating Temperature |
41 to 104° F (5° to 40° C)
|
| Inputs |
2 x AES3 ,transformer balanced, 110 ?
2 x XLR-F connector, 3-pin |
| Sampling Rate |
44.1, 48, 96 kHz, synchronisation to digital input signal or internal clock
|
| Outputs |
2 AES3 outputs, 2 x XLR-M connector, 3-pin
|
| Sampling Rates |
referenced to digital inputs or internal clock
|
| Scale |
Basic PPM
|
| Input Source |
Digital via XLR audio interface (AES3)
|
| Peak Meter |
2-ch. Stereo, 2 x 2-ch. Stereo, single channel,
multichannel for up to 4 channels |
| Display |
� Peak level
� Peak hold � Numerical value of the display |
| Functions |
� Gain (+20 dB, +40 dB acc. to standard)
� Peak hold on/off � Memory � Reset |
| Word Length |
24-bit
|
| Digital Scaling |
� TP60: +3 .. -60 dB
� Dig60: 0 .. -60 dB � DIN5: +5 .. -50 dB � Nordic: +12 .. -42 dB � BR IIa: 7 .. 1, BRIIa ext: 7 .. 1, � BR IIb: +12 .. -12 dB, BR IIb +12 .. -12 dB, |
| Headroom |
Headroom Ref:
adjustable in the range from 0 to -20 dB in steps of 1 dB Operation field: - adjustable in the range from 0 to -20 dB insteps of 1 dB Integration time (Attack): - acc. to corresponding standard or selectable: - Sample, 20 ms, 10 ms, 1 ms, 0.1 ms - additional 150 ms for British scales |
| Gain |
+20 dB, +40 dB (acc. to standard)
|
| Peak Hold Indicator |
1 s, 2 s, 4 s, 10 s, 20 s, 30 s, manual reset or off
|
| High Pass Filter |
Off, 5 Hz, 10 Hz, 20 Hz
|
| Over indicator |
Hold time: 1 s or manual
PPM threshold: Full Scale, Full Scale -1LSB, Full Scale -2LSB, -0.1 dBFS, -0.5 dBFS, -1 dBFS, -2 dBFS, -3 dBFS PPM attack time: 1 to 15 samples PPM word width: 16 to 24 bit, selectable True peak threshold: adjustable |
| Display |
Graphical display of the Loudness Range
|
| Mode |
Selectable: LRA Bar, MagicLRA, MagicLRA + I, MagicLRA + I + Num
|
| Scale Range |
Selectable: 6 LU, 10 LU, 20 LU, 30 LU
|
| LRA Low Range |
2 LU; adjustable from 1 to 20 LU in steps of 1 LU
|
| Comfort Zone |
4 LU; adjustable from 1 to 20 LU in steps of 1 LU
|
| LRA High Range |
Depends on the selected scale range and the spread of the comfort zone
|
| Colors |
Selectable for each range
|
| Display |
� Bargraphs for each single channel (can be combined with PPM bargraphs)
� Summation bargraph |
| Reference Point |
adjustable in the range from 68 dB to 88 dB in steps of 1 dB
|
| Weighting |
Linear, A (Leq(A)), C, CCIR (Leq(M)), K
|
| Integration Time |
Fast (125 ms), Slow (1 s)
|
