RTW SW20006 Overview

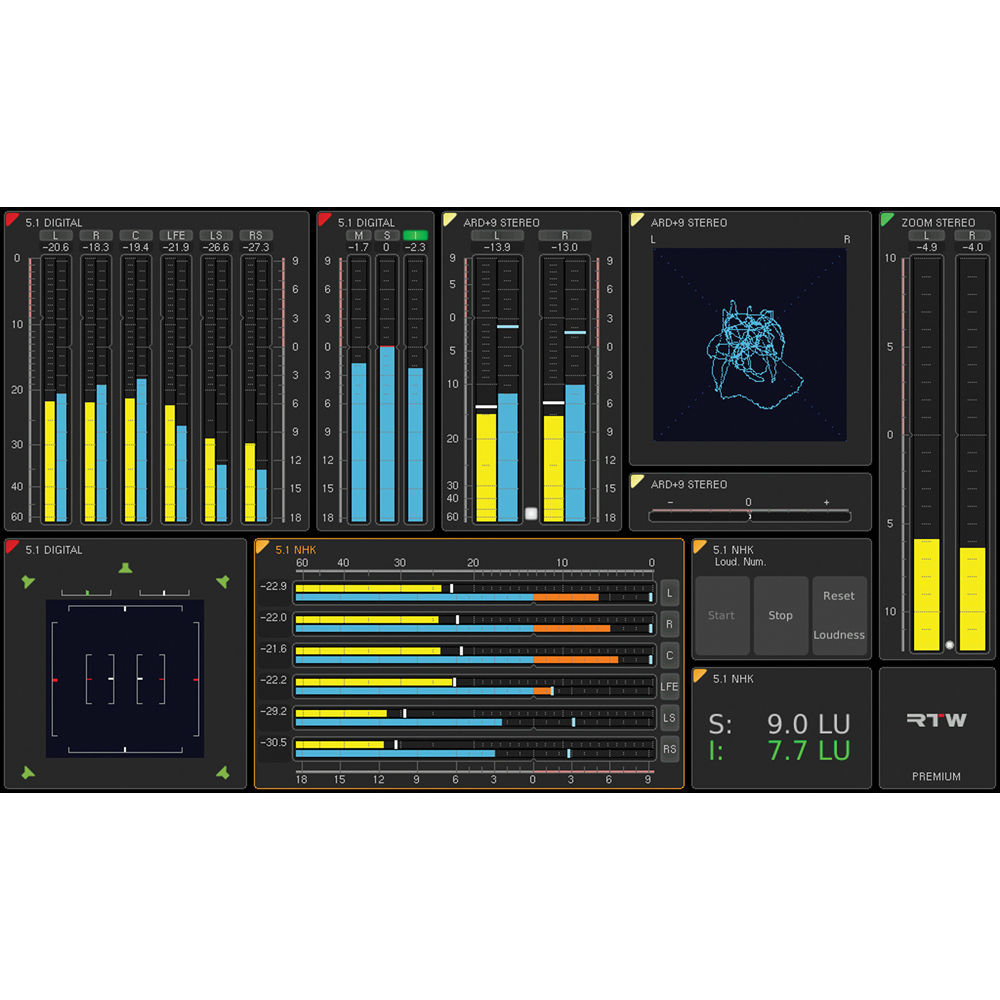

The RTW SW20006 Premium PPM Module Software is a software for the TouchMonitor TM7, TM9, and TMR7 which expands the standard Basic Stereo PPM software with additional advanced scales (such as Zoom, SMPTE, NHK, ARD+9, et al.), additional display modes (segment, classic), and moving coil instruments with different scales and functions. It also provides a 2-channel Audio Vectorscope and a separate phase meter.
With the additional installation of the SW20001 software the Multichannel PPM is extended with these functions and enhanced with the Multi-Correlator (up to 10 phase meters). The Gain Reduction is added with Multi-Channel mode.
Note: SW20002 is required for the display of Loudness.
High resolution Multi-standard PPM display with advanced scales
Additional PPM and VU moving coil instruments
Second audio vectorscope
Items Included
- RTW SW20006 Premium PPM Expansion Module
Additional Resources
No additional resources available
RTW SW20006 Specs
General
| Input Source |
Analog and/or digital, depending on selected audio interface
|
| Display |
� Peak level
� Peak hold � Numerical value of the display � Digital Over |
| Functions |
� Gain (+20 dB, +40 dB acc. to standard)
� Peak hold on/off � Memory � Reset |
Analog Peakmeter Extension
| Analog Scales |
Zoom10: +10 .. -10,
Zoom1: +1 .. -1, SMPTE24: +24 .. -30 SMPTE20: +20 .. -40 NHK |
| Integration Time |
According to standard or 20 ms, 10 ms, 1 ms, 0,1 ms
|
| Peak Hold Indicator |
1, 2, 4, 10, 20, 30 s, manual reset or off
|
Digital Peakmeter Extension
| Word Width |
24 bit
|
| Digital Scaling |
TP20: +3 .. -20 dB
Dig20: 0 .. -20 dB Dig0: +18 .. 0 dB Dig18: +18 .. -18 dB Dig40: +20 .. -40 dB ARD9: +9 .. -60 dB DIN10: +10 .. -50 dB, Zoom10: +10 .. -10, Zoom1: +1 .. -1, |
| Headroom |
Adjustable from 0 to -20 dB in steps of 1 dB
|
| Operation Field |
Adjustable from 0 to -20 dB in steps of 1 dB
|
| Integration Time |
According to Corresponding Standard or Selectable:
Sample, 20 ms, 10 ms, 1 ms, 0.1 ms |
| Gain |
+20 dB, +40 dB (according to standard)
|
| High-Pass Filter |
Off, 5 Hz, 10 Hz, 20 Hz
|
| Peak Hold Indicator |
1 s, 2 s, 4 s, 10 s, 20 s, 30 s, manual reset or off
|
| Over indicator |
Hold Time: 1 s or manual
PPM Threshold: Full Scale, Full Scale -1LSB, Full Scale -2LSB, -0.1 dBFS, -0.5 dBFS, -1 dBFS, -2 dBFS,-3 dBFS Attack Time: 1 to 15 samples Word Width: 16 to 24 bit, selectable True Peak Threshold: Adjustable |
Audio Vectorscope
| Note |
Dual Vectorscope mode available in Surround mode (if available)
|
| Surround Format |
Display Modes:
� 2-channel � 4-channel (fixed: L-R above, LS-RS below) Inputs: in 2-channel mode selectable, selection depends on selected format; e. g. for 5.1:L/R, LS/RS, L/C, C/R, L/LS, R/RS AGC: fast/slow |
| 2-Channel Stereo Mode |
Inputs: L-R
AGC: fast/slow Grid: L/R or M/S |
Moving Coil Instrument
| Note |
Available in stereo mode only
|
| Type |
PPM (L/R), PPM (M/S), VU, Loudness, PPM + Loudness (L/R; M, S, or I), selectable
|
| PPM |
Ch. Arrangement:
Dual, Dual + M/S horizontal, Dual + M/S vertical, Stereo horizontal, Stereo vertical Scales: � BR IIa: 7. .1, BR IIa ext: 7. .1 � BR IIb: +12. .-12 dB, BR IIb ext: +12. .-12 dB Integration Time: Sample (digital only), 0.1 ms, 1 ms, 10 ms, 20 ms, 150 ms Headroom Ref: available with digital sources only: -9 dB; adjustable from 0 to -20 dB in steps of 1 dB S Mode: only available, if M/S type is selected: M3, M6 Peak Indicator: Off, Peak, True Peak, BR Peak BR Peak Threshold: 6 dB, BR IIa: adjustable from 4 to 7 dB in steps of 1 dB BR IIb: adjustable from 0 to 12 dB in steps of 1 dB |
| VU Meter |
Ch. Arrangement:
Stereo horizontal, Stereo vertical Scale Analog: VU (-20 to +3 dB) Scale Digital: VU Digital (-20 to + 3 dB) Lead: 0 dB, adjustable from 0 to 12 dB in steps of 1 dB Peak Indicator: Off, Peak, True Peak |
| Loudness |
Ch. Arrangement:
Dual, Stereo horizontal, Stereo vertical Scales: according to Loudness settings Integration Time: according to standard Peak Indicator: Off, no selectable option available |
| PPM + Loudness |
Ch. Arrangement:
Dual-PPM (as described above) with additional Loudness display (BBC mode) for M, S, or I (selectable) in one instrument Scales: � PPM: see above � Loudness: +9 to -9 LU fixed (mid of scale corresponds to Target Level) |
| Numerical Display |
Switchable
|
Multi-Correlator
| Surround Format |
Software operates in stereo mode by default even if surround signal is present. If SW20001 module is installed, the software will then present multichannel and Surround Sound images on the screen
� For each channel pair of 3.1, 5.0, 5.1, 7.1 formats � LFE mode with 5.1, 7.1 formats to display the correlation between each single channel and LFE channel Display: Red: negative range, white: "0" range, Green: positive range Filter: Low pass filter switchable (300 Hz) |
