Description
RTW SW20013 Overview
The RTW BLITS module is a software option for the TouchMonitor TM7 and TM9 and is a tool that allows you to generate digital line test signals according to EBU 3304, GLITS and BLITS definitions as well as automatic and significant analyzing of channel allocation, level, phase and delay, and polarity of received BLITS 5.1 test signals.
RTW created this software instrument not only to generate a BLITS test signal, but also to use the BLITS sequence for a user-friendly and more comprehensive analysis and display of level, channel allocation, phase, delay and polarity of incoming digital audio signals in 5.1 mode. Adjustable limits complement the analyzer, and the sequence can be accessed from any digital input of the TouchMonitor.
In addition to the analyzer, the BLITS instrument features a signal generator. This feature is capable of generating not only the 5.1 sequence, but also a stereo ident sequence either in EBU 3304 format or as the widely known GLITS tone. A user can choose to place an identification header, similar to a station ident, in front of the test sequence. The signal will then be output through the AES 3 or AES3id output feeds.
Note: Previous installation of the SW20001 software is required.
Optional intro from stored WAV file

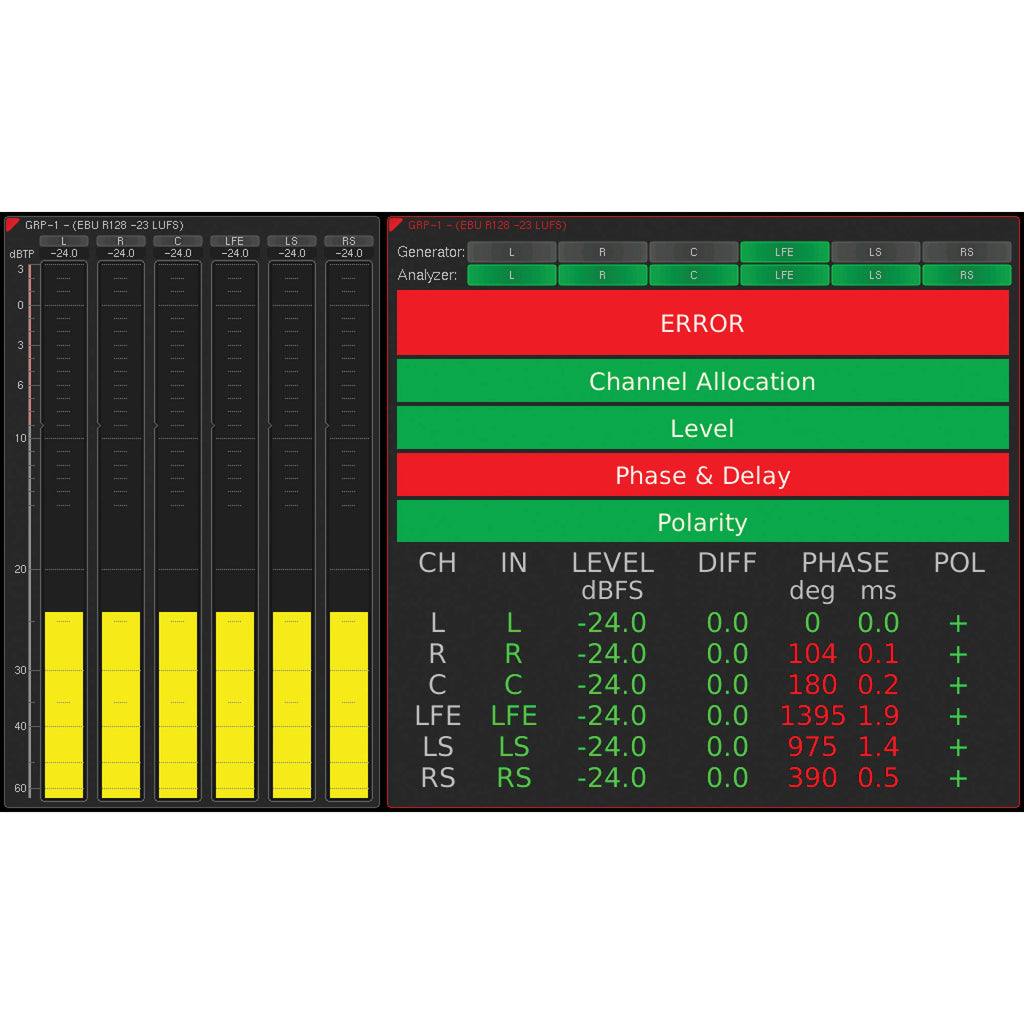

-State/Alarm: Bars for fast and easy recognition of
� General signal state
� Channel allocation
� Level
� Phase and Delay
� Polarity
In cases of error the bars will be displayed in red
- Report: Schedule showing values for
� Incoming channels
� Channel allocation
� Measured level in dBFS
� Detected differences in dB
� Phase and Delay in deg and ms
� Polarity
Values showing differences or errors will be displayed in red
Items Included
- RTW BLITS Instrument Software Option for the TM7 and TM9 Touchmonitors
Additional Resources
No additional resources available
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
