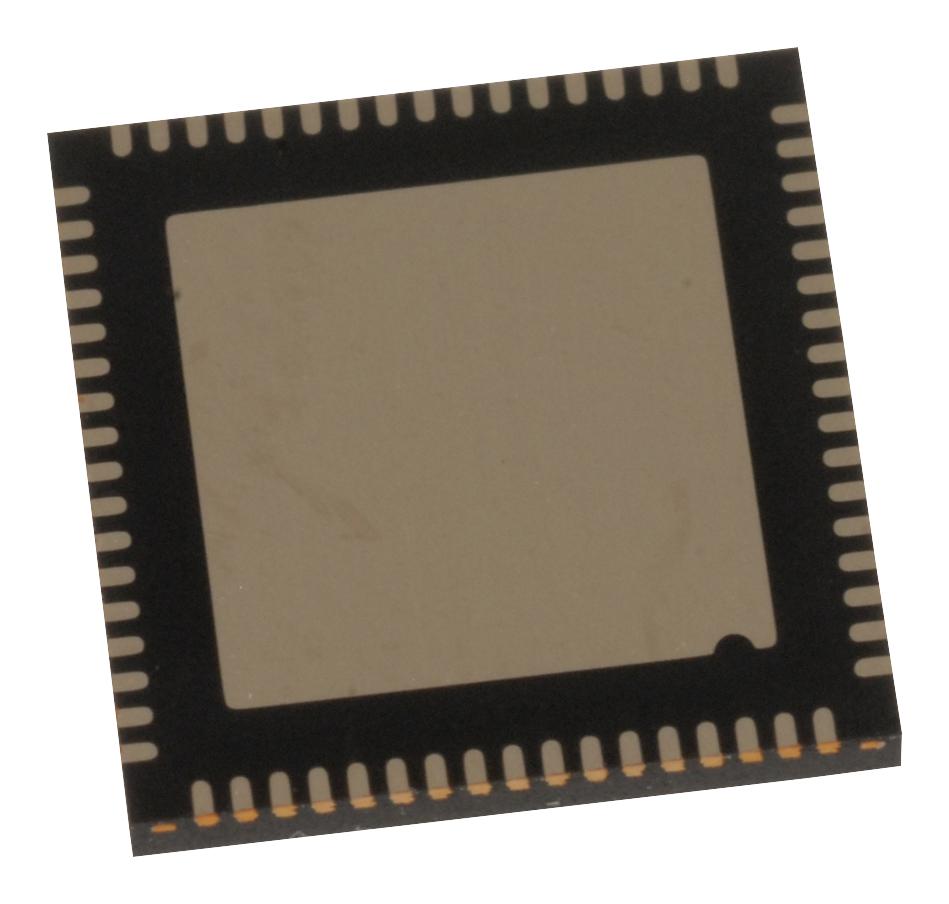

INFINEON CYUSB3302-68LTXC USB Interface, USB Hub Controller, USB 3.0, 3 V, 3.6 V, QFN-EP, 68 Pins SP005657107, CYUSB3302-68LTXC

CYUSB3302-68LTXC is a HX3 USB 3.0 hub controller that is compliant with the USB 3.0 specification revision 1.0. HX3 supports SuperSpeed (SS), Hi-Speed (HS), Full-Speed (FS), and Low-Speed (LS) on all the ports. It has integrated termination, pull-up, and pull-down resistors, and supports configuration options through pin-straps to reduce the overall BOM of the system. HX3 includes the Cypress-proprietary features: Shared Link�: Enables extra downstream (DS) ports for on-board connections in embedded applications, Ghost Charge�: Enables charging of devices connected to the DS ports when no host is connected on the upstream (US) port HX3 USB 3.0 Hub.

• Supports up to four USB 3.0-compliant DS ports, SS and USB 2.0 link power management (LPM)
• Dedicated hi-speed transaction translators (Multi-TT), LED status indicators
• Shared Link� for embedded applications, enables up to eight device connections
• Each DS port complies with the USB battery charging v1.2 (BC v1.2) specification
• Enhanced battery charging, apple charging supported on all DS ports
• Integrated ARM® Cortex�-M0 CPU, 16KB RAM, 32KB ROM
• Configure GPIOs for overcurrent protection, power enable, and LEDs
• Firmware upgrade of an external ASSP connected to HX3 through USB
• Extensive configuration support, charging support for each DS port
• 68-pin QFN package, 0°C to 70°C temperature range
