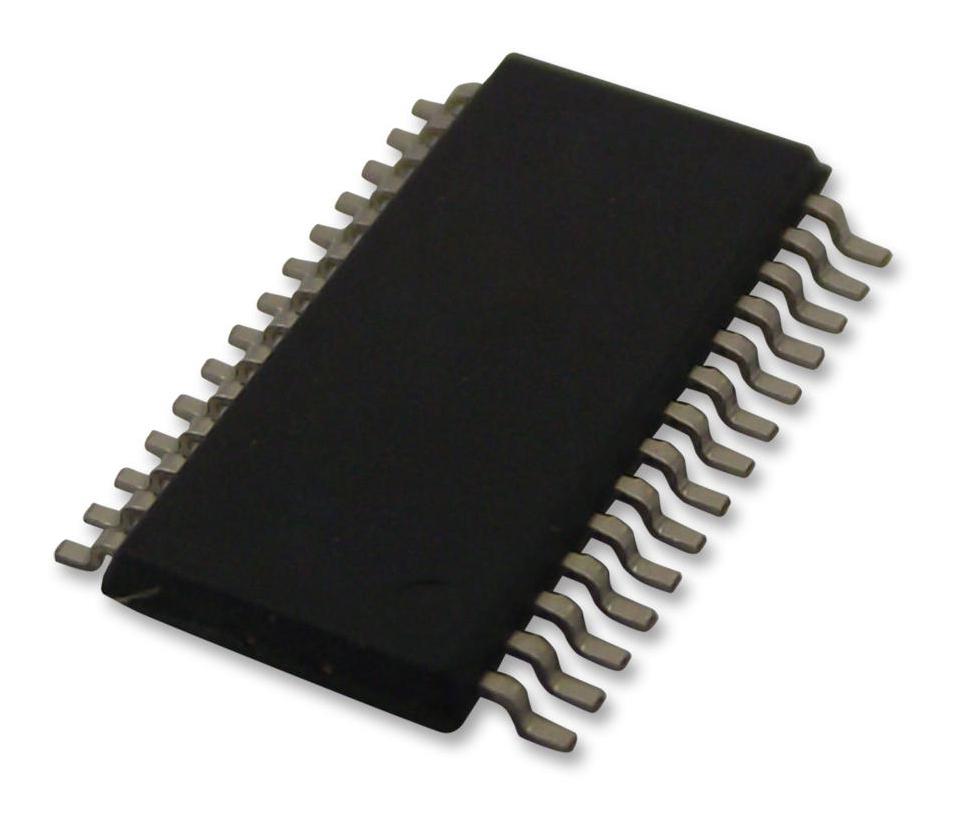

INFINEON CY7C65213A-28PVXI Interface Bridges, USB to UART, 1.71 V, 5.5 V, SSOP, 28 Pins, -40 °C SP005641961, CY7C65213A-28PVXI

CY7C65213A-28PVXI is a USB-UART LP bridge controller. It provides a simple method to upgrade UART-based device to USB with a minimal number of components. It also includes UART transceiver, an internal regulator, an internal oscillator. The internal flash is used to store custom-specific USB descriptors and GPIO configuration. This is done in-system using a configuration utility that communicates over the USB interface. This USB-UART LP bridge controller is widely used in blood glucose meter, battery-operated devices, USB-to-UART cables, enables USB connectivity in legacy peripherals with UART, point-of-sale (POS) terminals industrial and T&M (test and measurement) devices etc.

• Supports communication driver class (CDC), personal healthcare device class (PHDC)
• Integrated USB termination resistors, charger detection
• Data rates upto 3Mbps, 256 bytes for each transmit and receive buffer
• Supports parity, overrun, and framing errors, RS-485 supported
• Supports UART break signal, general-purpose input/output (GPIO) is 8 pins
• 512-byte flash for storing configuration parameters
• Clocking integrated to 48MHz clock oscillator
• Operating voltage is 1.71V to 5.50V, 65USB hubs, CMOS technology code
• Operating temperature is -40°C to 85°C, no of GPIO is 8 pins
• Packaging style is 28pin SSOP (10 × 7.5 × 1.65mm, 0.65mm pitch)
