Description
Product Overview
BD62018BFS-E2 is a 3-phase brushless fan motor controller. This controller synthesizes the optimal driving signal from hall sensor signals and outputs the synthesized signal to control the external power transistor. The replacement is also easy because of its pin compatibility with BD62012BFS. This controller provides optimum motor drive for a wide variety of applications and enables motor unit standardization. Applications include air conditioners; air purifiers; water pumps; dishwashers; washing machines.
- 180° sinusoidal commutation logic
- PWM control (upper and lower arm switching)
- Phase control supported from 0° to +40° at 1° intervals
- Rotational direction switch
- FG signal output with pulse number switch (4 or 12), VREG output (5V/30mA)
- Protection circuits provided: OCP, TSD, UVLO, MLP and the external fault input
- Duty control voltage range from 2.1V to 5.4V
- Supply current is 3mA typ at (VCC=15V and Tj=25°C)
- Dimension W(Typ) x D(Typ) x H(Max) is 10.0 x 7.8 x 2.1mm

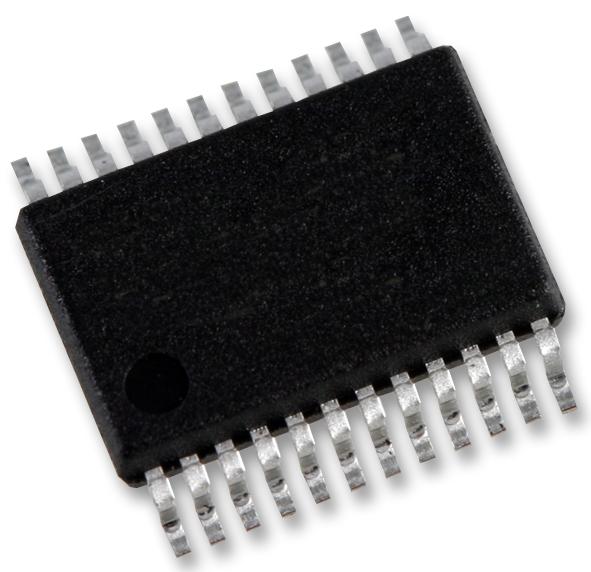

- Maximum junction temperature is +150°C, SSOP-A24 package
Product details
Other details
| Brand | ROHM |
| Part Number | BD62018BFS-E2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
