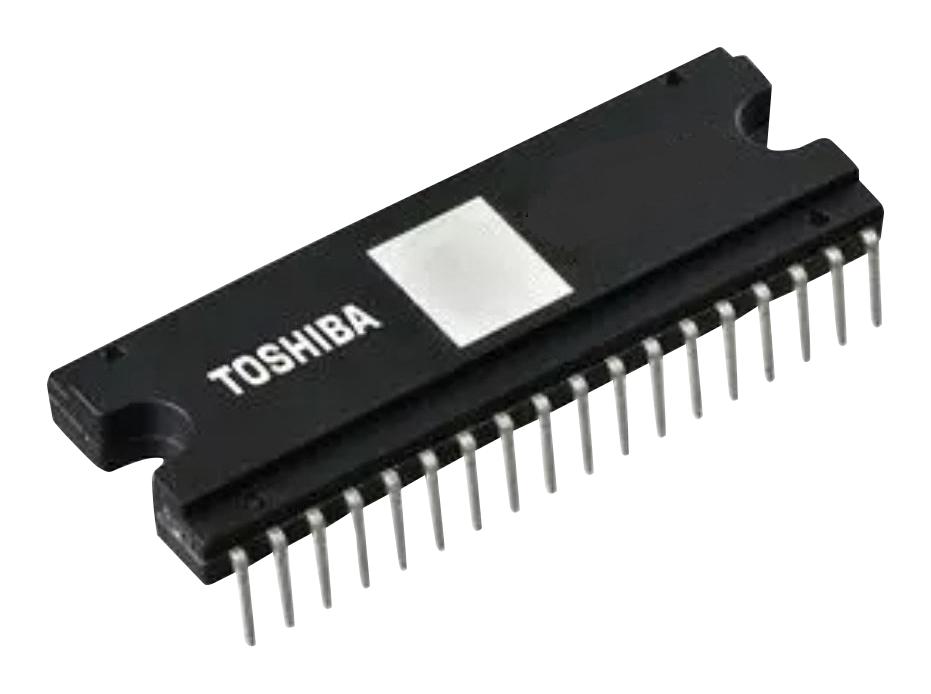

TOSHIBA TPD4163K,F(S Motor Driver, DC Brushless, 1 Outputs, 13.5 to 16.5V Supply, 1A Out, -40 to 135 °C, HDIP-30

TPD4163K,F(S is a high-voltage monolithic silicon power IC. It is a DC brushless motor driver using high-voltage PWM control. It is fabricated by high voltage SOI process. It is a three-shunt resistor circuit for current sensing. It contains level shift high-side driver, low-side driver, IGBT outputs, FRDs and protective functions for overcurrent circuits and under voltage protection circuits and thermal shutdown circuits. It is easy to control a DC brushless motor by just putting logic inputs from an MCU or motor controller to the TPD4163K. It includes a shutdown function controlled by SD pin, and thermal shutdown. Ideal for DC brushless motor driver IC.

• High voltage power side and low voltage signal side terminal are separated
• Best for current sensing in three shunt resistance
• Bootstrap circuit gives simple high-side supply
• Built in bootstrap diodes
• A dead time can be set as a minimum of 1?s, and it is suitable for a sine-wave from drive
• 3-phase bridge output using IGBTs
• Regulator voltage range from 4.5 to 5.5V (VCC = 15V, IREG = 30mA)
• Operating power supply voltage range from 50 to 450VBB, 13.5 to 16.5VCC (Ta = 25°C)
• Power dissipation is 27W (IGBT 1-phase (Tc = 25°C)
• 30-pin DIP package, operating junction temperature range from -40 to 135°C
