Description

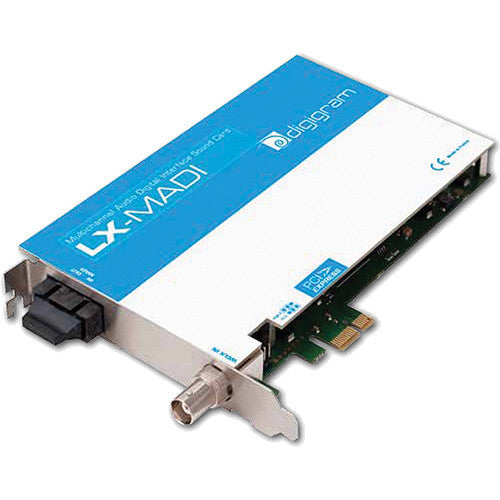

The LX-MADI PCIe MADI Sound Card from Digigram is designed for use in high-density audio production and automation applications. This sound card enables you to use PC-based digital audio workstations with automation systems and legacy synchronous AES10 standard MADI audio. It features a MADI optical port for 64 input / 64 output simultaneous channels and has a low latency of down to 1.2 ms for a round trip.
- MADI optical port for 64 input / 64 output simultaneous channels
- Low latency down to 1.2 ms round trip
- Performance unaffected by other applications running on the host system
- Applications include distribution between studios and production, connection with venue / event installations, and use in live sound & fixed installations, central facilities, production studios, mobile studios / OB vans, and more
In the Box
Digigram LX-MADI PCIe MADI Sound Card
- Limited 1-Year Warranty
| Bus | 1 x PCIe |
| Connectors | 1 x Optical, MADI in/out 1 x BNC, word clock in/out |
| MADI | 64/64 inputs/outputs, mono, @ 48 kHz 56/56 inputs/outputs @ 48 kHz 32/32 inputs/outputs @ 96 kHz |
| Word Clock I/O | TTL input, 75 ohms/HighZ, selectable by jumper TTL output, 75 ohms, max. 5 Vpp |
| Clock Sources | Internal, word clock, or MADI input Local Clock Precision: > 10 ppm |
| Sampling Frequencies | From Local Clock: 44.1, 48, or 96 kHz From Word Clock: 44.1, 48, or 96 kHz From MADI: 44.1, 48, or 96 kHz |
| Latency | 1.2 ms, round trip |
| Supported Operating Systems | Windows 10, 8, and 7 (32/64 bits) Windows server 2003/2008 Linux |
| Drivers | ASIO, WASAPI / low latency WDM DirectSound, ALSA |
| Operating Temperature | 32 to 122�F / 0 to 50�C |
| Storage Temperature | 23 to 158�F / -5 to 70�C |
| Humidity (Non-condensing) | Operating: 5 / 90% Storage: 0 / 95% |
| Power Requirements | @ +3.3 VDC: 0.4 A @ +12 VDC: 0.12 A |
| Dimensions | 6.7 x 3.9 x 0.8" / 169 x 99 x 20 mm |
| Packaging Info | |
|---|---|
| Box Dimensions (LxWxH) | 9.0 x 6.0 x 2.0" |
