Description

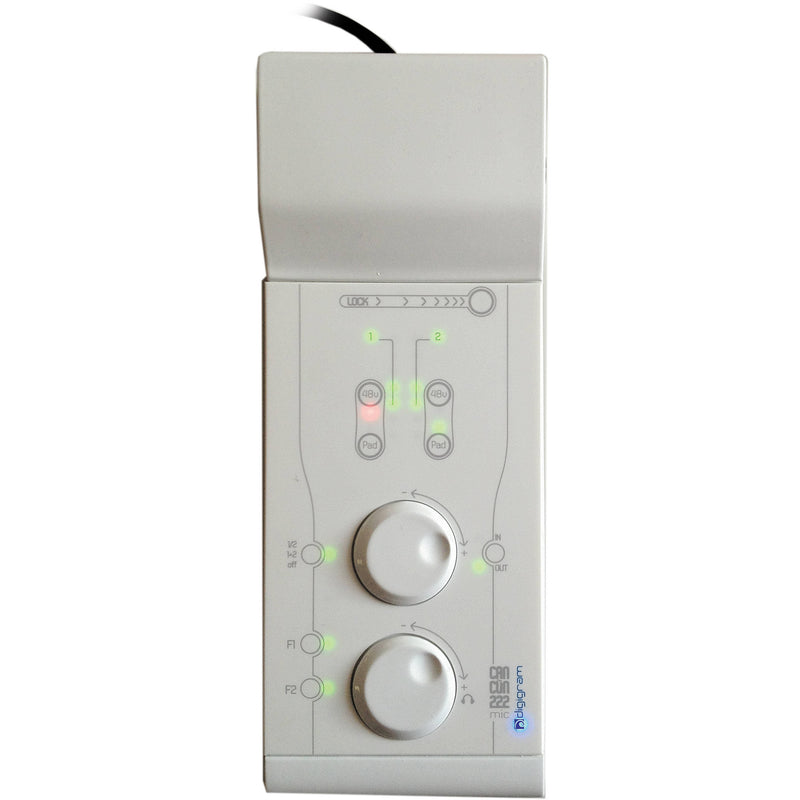

The Digigram CANCUN 222-Mic USB 2.0 Audio Interface is a high-quality, compact unit designed to meet the needs of reporters and mobile audio professionals. It delivers up to 24-bit, 192 kHz audio with low latency and high headroom.
Digigram designed the CANCUN 222-Mic with an ergonomically advanced user interface, featuring an LED-lighted touch panel that makes setup fast. You get up to 2 simultaneous balanced mic/line mono analog inputs along with 1 stereo pair of AES/EBU I/O inputs. Also provided are 2 balanced line outs and 1 AES/EBU stereo output pair. The mic preamps are excellent quality, providing 55dB of gain, and headroom is an impressive +25dBu.
A breakout cable featuring 6 Neutrik XLR connectors is included, and all the analog and digital connections are available on a 25-point D-Sub connector, allowing users to create custom cables to suit their applications. MIDI I/O is offered on the D-Sub, as well.
The CANCUN 222-Mic features USB 2.0 connectivity, and features three connectors: 2 Type A and 1 Mini B. Its latency can be as low as 3.4 mS on Windows systems and 3.8 mS on Mac systems.
- 2 simultaneous analog & AES I/Os in a compact form factor (10 x 3.8 x 1.4", [254 x 96 x 36mm])
- Mic preamps offer low noise and high gain: 55dB gain, 100 dB THD+N, and -126 dB EIN.
- Analog headroom of +24 dBu
- Low latency (4 mS) on both Windows and Mac OSX platforms
- Ergonomically advanced user interface for quick setup and efficient monitoring on both Windows and Mac OSX platforms. Intuitive hardware controls with LED-lighted touch panel
- Neutrik XLR connectivity via breakout cable with 6 jacks.
- 1-Year Warranty
| Audio Capabilities | |
|---|---|
| Converters | 24-bit - Frequency : 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz |
| Audio Formats Support | PCM 8, 16, 20, and 24 bits, Full Duplex |
| Latency | 3.4 mS Analog-to-PC or PC-to-Analog (Windows 7 / 64 bits) 3.8 mS Analog-to-MAC or MAC-to-Analog (Mac OS X 10.6.8) |
| Inputs | |
|---|---|
| Analog Inputs | 2 Balanced Combo XLR/1/4" Mic/Line Inputs |
| Digital Inputs | 1 AES/EBU (AES3-2003) Compliant |
| Phantom Power | Switchable 48V: 7 mA Max on each input USB slots may be necessary on certain hosts |
| Input Gain | Analog: From 0 to 55 dB by 1 dB Steps; Switchable Pad 30.0 dB |
| Input Sensitivity | 0 dBfs adjustable from -30 dBu to +25 dBu (Line) and -60 dBu to -5 dBu (mic) |
| Maximum Input Level | Line: +25 dBu / >3.5 k?; Mic: -5 dBu / >2 k? |
| Frequency Response | @ 48 kHz : 20 Hz to 20 kHz +0/-0.5 dB @ 96 kHz : 20 Hz to 40 kHz +0/-0.6 dB @ 192 kHz : 20 Hz to 80 kHz +0/-2.0 dB |
| Signal to Noise Ratio | 108 dB Unweighted and 111 dBA @48 kHz (Analog Input, Typical) |
| THD + N | -105 dB Unweighted and -107 dBA / 20 Hz to 20 kHz, @48 to 192 kHz ref 1 kHz at -3 dBfs |
| Mic Input Noise (E.I.N.) | -128 dB / Zsource = 40?; Pad Off; Gain 55 dB |
| Outputs | |
|---|---|
| Analog Outputs | 2 x Balanced Line (mono) |
| Digital Outputs | 1x AES/EBU (AES3-2003) compliant (stereo) |
| Maximum Output Level | At 48 kHz: +10 dBu / 2 x 33? |
| Frequency Response | @ 48 kHz: 10 Hz-20 kHz +0/-0.1 dB @ 96 kHz: 10 Hz-40 kHz +0/-0.3 dB @ 192 kHz:10 Hz-80 kHz +0/-1.3 dB |
| Signal to Noise Ratio | 111 dB Unweighted @48 kHz (analog output/typical) |
| THD + N | -98 dB Unweighted / 20 Hz-24 kHz @48 kHz to 192 kHz, ref 1 kHz at -3 dBfs (analog output/typical) |
| Headphone Output | Dedicated Output Stage, >10 mW from 32 to 600? 10 Hz-20 kHz +-0.1 dB; Dynamic Range : 93 dB @32?, Typical (stereo) |
| I/O Connections | |
|---|---|
| Audio | 1 x XLR Female for Left Input Channel 25 pts (D-Sub) for all Analog and Digital I/Os 1 x 1/4" TRS Stereo Headphone Output 6 x Neutrik XLR on Breakout Cable (included) |
| MIDI I/O | Available on 25 D-Sub connector |
| USB | Standard, Includes Two A-Type on PC side, One Mini on Card Side |
| Operating System | |
|---|---|
| Operating System Support | Windows 7, 32 and 64 bits; Windows XP; Mac OS X; Linux (available by software upgrade during roadmap development, 2012) |
| Management | Depending on the host operating system's implementation of the USB Audio 2.0 specification: DirectSound, Core Audio, WASAPI Digigram np SDK through Virtual PCX Third-party ASIO driver |
| USB | USB 2.0 / Compliant with the USB 2.0 Audio specification |
| Physical | |
|---|---|
| Operating Temperature / Humidity | 32 to 122� F (0 to +50�C ) / 0 to 90 % (non condensing) |
| Dimensions | 10 x 3.8 x 1.4" (254 x 96 x 36 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 2.75 lb |
| Box Dimensions (LxWxH) | 12.5 x 6.7 x 4.2" |
