Description
American DJ EVS3 FLEX45 Overview

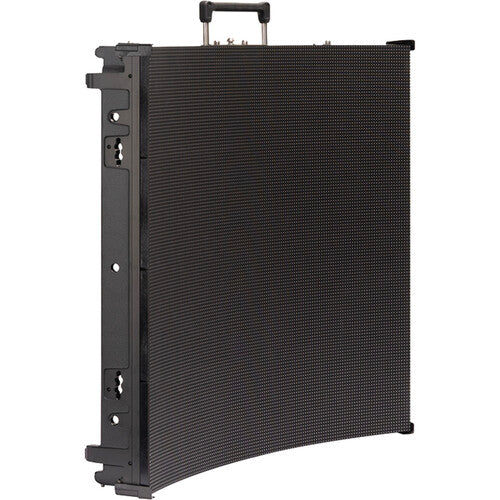

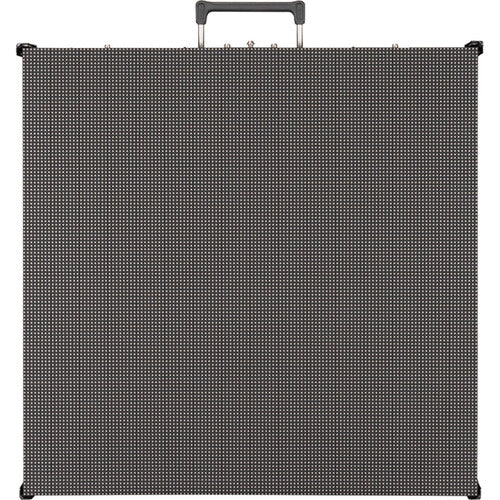

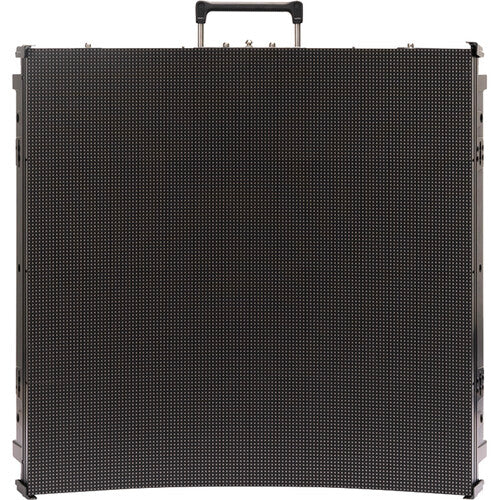

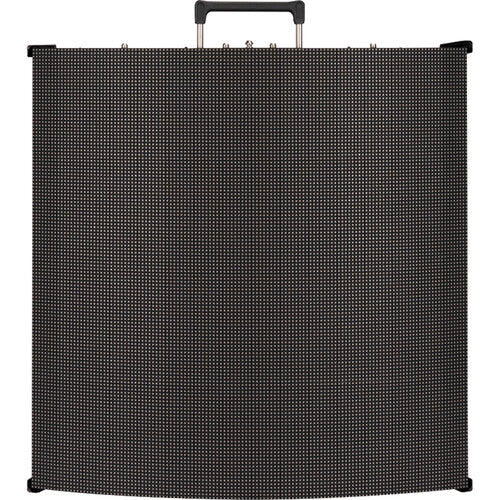

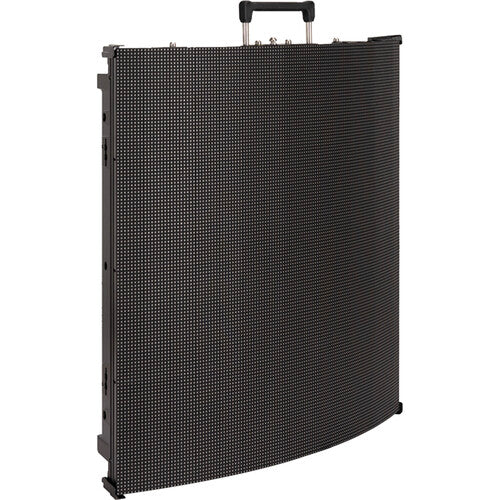

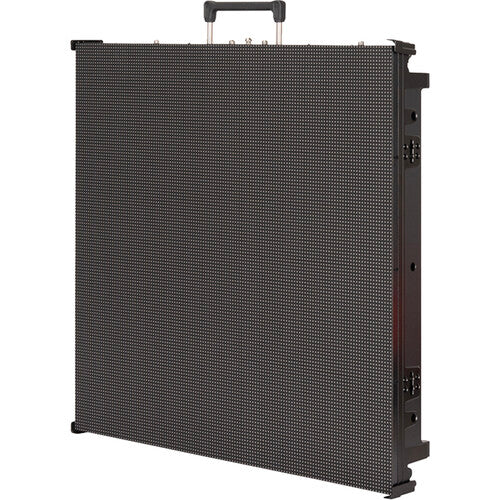

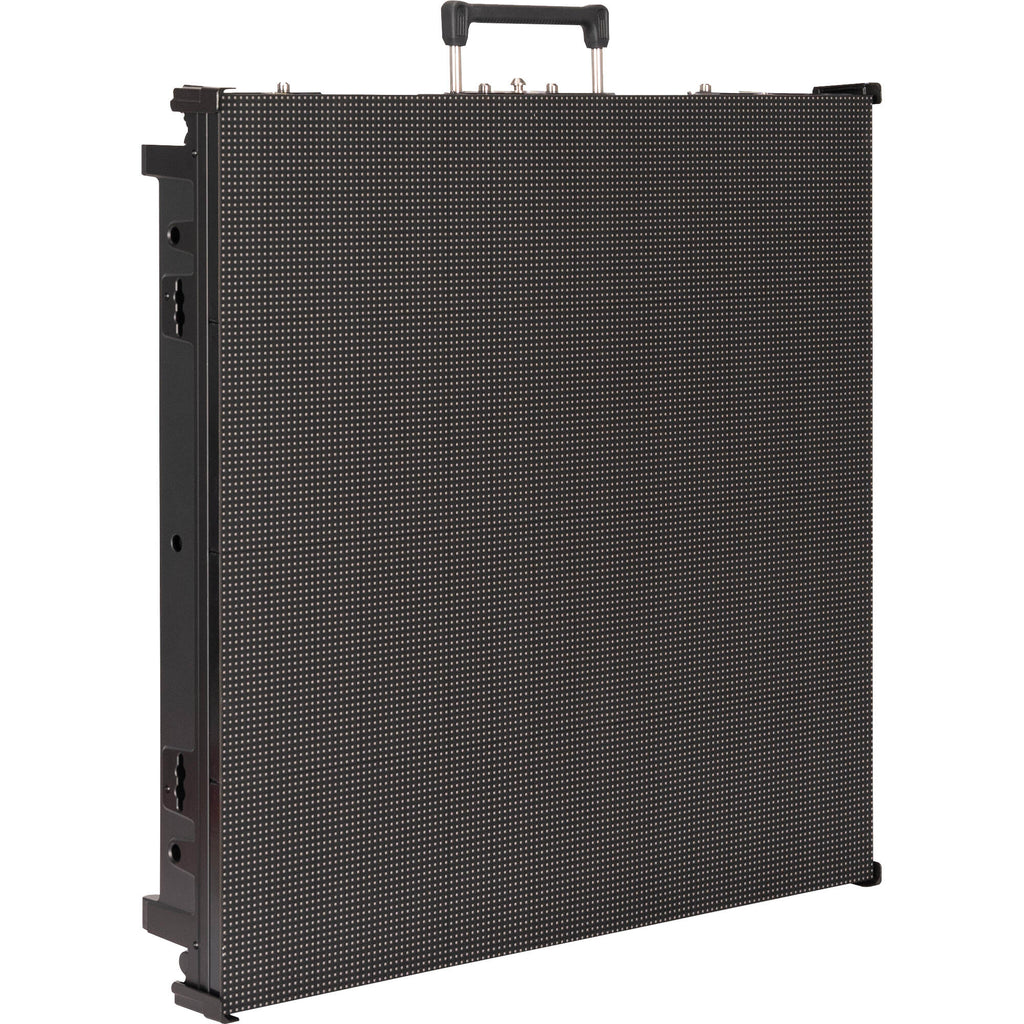

Create large, curved LED video wall displays with the American DJ EVS3 Flex45 LED Video Wall Panel. The EVS3 Flex45 features a 3.91mm pixel pitch and the ability to flex up to a 45° concave or convex shape. These panels are sold individually and are compatible with Novastar video processors.
Designed for temporary use, the EVS3 Flex45 includes four individual modules and rear serviceability. Conveniently, up to eight panels can snugly fit within the VSFC8 flight case (sold separately). Additionally, the FLEX45RB rigging bar (sold separately) enables the hanging of up to twenty EVS3 Flex45 panels vertically.
Additional Features
- Kinglight Copper, 3-in-1 SMD 2121 LEDs
- 128 x 128 panel resolution
- Power and Data in and out
- IP20 dust protection (front and back)
UPC: 810087373702
Items Included
- American DJ EVS3 Flex45 3.91mm Pixel Pitch Curved LED Video Wall Panel
- Limited 2-Year Manufacturer Warranty
Additional Resources
American DJ EVS3 FLEX45 Specs
Key Specs
| Display Size |
27.84"
|
| Native Resolution |
128 x 128
|
| Maximum Brightness |
800 nits / cd/m2
|
| Inputs |
No
|
| Outputs |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
Display
| Display Size |
27.84"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
1:1
|
| Native Resolution |
128 x 128
|
| Maximum Brightness |
800 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
5000:1
|
| Refresh Rate |
60 Hz
|
| Color Support |
Grayscale
|
| Viewing Angle (H x V) |
160 x 140°
|
Connectivity
| Inputs |
No
|
| Outputs |
No
|
| HDCP Support |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2x RJ45
|
| Other I/O |
No
|
Speaker
| Built-In Speakers |
No
|
Hardware
| Smart TV |
No
|
| OS Compatibility |
Windows / Linux
|
Electrical
| Power Consumption |
Maximum: 120.0 W
Typical: 48.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
-4 to 104°F / -20 to 40°C at 10 to 90% Humidity
|
| Storage Conditions |
-40 to 176°F / -40 to 80°C at 10 to 90% Humidity
|
| Certifications |
cETLus
|
| VESA Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Bezel Thickness |
Bezel Less
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
19.7 x 19.7 x 3" / 500 x 500 x 75 mm
|
| Weight |
15.56 lb / 7.06 kg
|
