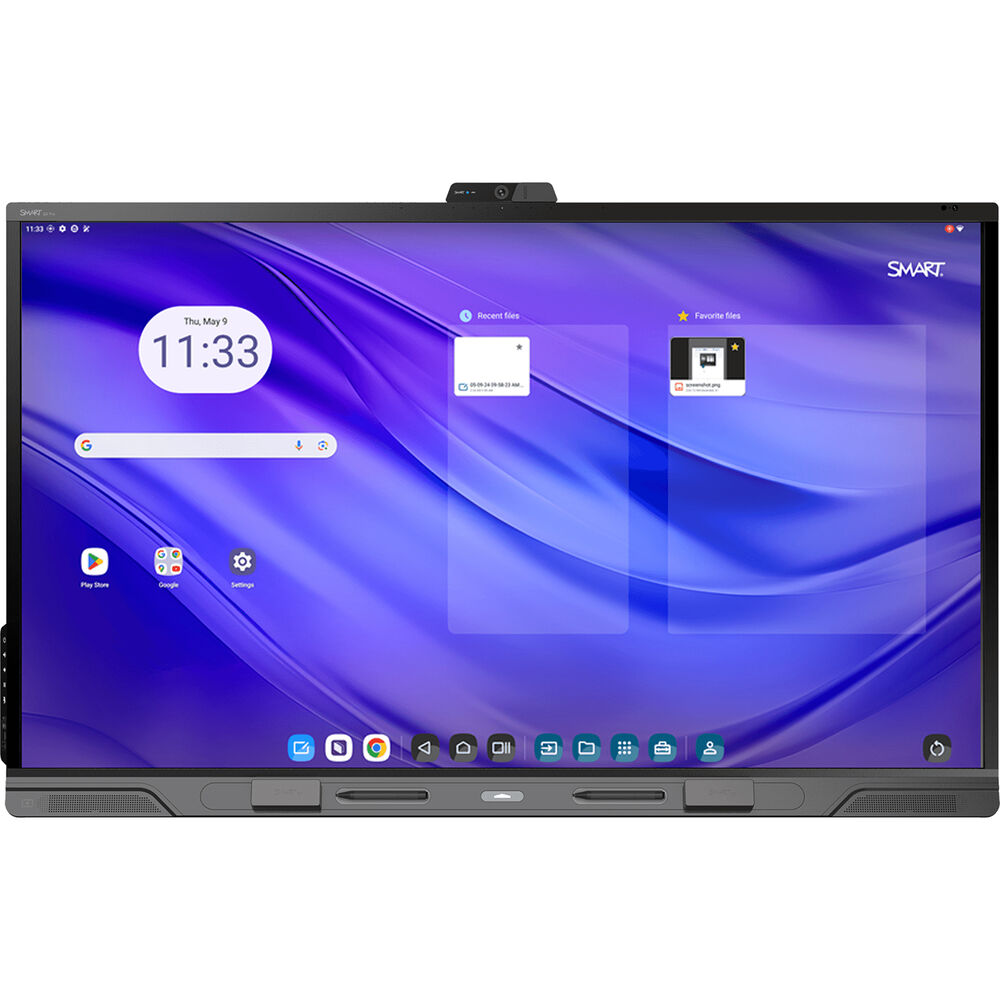

SMART Technologies QX275-V2-P 75" UHD 4K Touchscreen Commercial Monitor

Flexible Connectivity

The SMART Board QX (V2) Pro series features a full suite of inputs to connect your computers, video players, mobile devices, and peripherals. In addition to the hard-wired connections, the QX (V2) Pro includes integrated Wi-Fi 6e as well as two-way Bluetooth 5.2 wireless.

For walk-up-and-use convenience, the front panel has an HDMI 2.1 input, a USB-C alt DisplayPort input with power output to charge your laptop or tablet while you use it, two USB-A inputs for connecting USB drives or other peripherals, and a USB-B for touch control.

The back panel hosts three more HDMI 2.1 inputs, along with VGA plus 3.5mm audio. Another full-function USB-C port is available, along with two more USB-A and three USB-B connections. The QX Pro series also has an OPS slot for SMART module expansion and a MicroSD slot with a security cover.

SMART UHD Camera 120

Included with this model is the SMART Ultra HD Camera 120. This is a 4K Ultra-HD camera with ePTZ and 120° horizontal field of view. Easily install the camera on the top of the display with the included mount and cable. The camera can automatically frame people meeting in a boardroom.

Integrated Sensors

The QX (V2) Pro series comes equipped with a variety of sensors to monitor the display and the environment in order to optimize safety and efficiency. They include sensors for proximity, ambient light, infrared, room temperature, humidity, volatile organic compound (VOC), and Particulate Matter (PM2.5). Additionally, you can quickly log in with the tap of an RFID or CCID-enabled card through the integrated NFC reader.

Please note: the display�s environmental sensors are not life safety rated sensors; they provide general information only.

Touch Features

Featuring HyPr Touch with Advanced IR on optically bonded glass, the QX Pro series offers a smooth and accurate touchscreen experience. The system is capable of up to 40 points of touch with Windows, 32 with Android, 20 with Mac, or 10 points with ChromeOS. Two interactive pens with unique IDs are included.

HyPr Touch with Advanced IR includes the following features:

• Simultaneous tool differentiation
• Object awareness
• Pen ID
• Silktouch
• Pressure sensitive ink
• Palm rejection
• Tool Explorer v2

SMART Software and Licenses

The following software licenses are available natively with the QX Pro series:

• SMART Ink and SMART Product Drivers, Included
• SMART Meeting Pro Room License, Included
• SMART Meeting Pro Personal Licenses (x10), Included
• SMART TeamWorks Room License, Optional

Additional Details

• Customizable home screen
• Split screen
• Interactive widgets
• Native and app-based screen sharing
• Digital whiteboard
• Templates, graphic organizers, and manipulatives
• File and app libraries
• Environmental sensors dashboard
• Web browser
• Ink anywhere on any file type

SMART Technologies QX275-V2-P Specs

Display Size	75"
Native Resolution	3840 x 2160
Maximum Brightness	490 nits / cd/m2
Touchscreen	Yes, Infrared (IR)
Inputs	Front 1x HDMI 2.1 Rear 3x HDMI 2.1 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio)
Outputs	Rear 1x HDMI 2.1 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio)
Wireless	Wi-Fi 6E (802.11ax) / Bluetooth 5.2
USB I/O	Front 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 1x USB-C (Unspecified Version) (Charging) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 3x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control)
Ethernet I/O	Rear: 2x RJ45 Gigabit Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input
Built-In Speakers	Yes, 3
Media Card Reader	1x microSD (Unspecified Type)
Webcam	User-Facing: 8.3 MP (4K)

Display Size	75"
Panel Type	LCD
Aspect Ratio	16:9
Display Orientation	Landscape
Native Resolution	3840 x 2160
Maximum Brightness	490 nits / cd/m2
HDR Support	No
Response Time	< 8 ms
Refresh Rate	60 Hz
Viewing Angle (H x V)	178 x 178°
Finish	Anti-Glare / Matte, Anti-Friction

Touchscreen	Yes, Infrared (IR)
Multi-Touch Points	40

TV Tuner

No

Inputs	Front 1x HDMI 2.1 Rear 3x HDMI 2.1 1x DE-15/DB-15 (VGA) 1x 1/8" / 3.5 mm (Analog Audio)
Outputs	Rear 1x HDMI 2.1 1x 1/8" / 3.5 mm (Analog Audio) 1x TOSLINK Optical (Digital Audio)
HDCP Support	Yes, Version 2.3
Wireless	Wi-Fi 6E (802.11ax) / Bluetooth 5.2
NFC	Yes
USB I/O	Front 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 2x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control) Rear 1x USB-C 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Video/Touchscreen Control/DisplayPort Alt Mode) 1x USB-C (Unspecified Version) (Charging) 1x USB-A 2.0 2x USB-A 3.0 / 3.1/3.2 Gen 1 3x USB-B 3.0 / 3.1/3.2 Gen 1 (Touchscreen Control)
Ethernet I/O	Rear: 2x RJ45 Gigabit Ethernet
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Control Input
Number of OPS/Expansion Slots	1
Ambient Light Sensor	Yes
Multi-Input Support (PIP/PBP)	Yes, Picture-by-Picture (PBP)

Built-In Speakers	Yes, 3
Speaker Configuration	2.1-Channel

Smart TV	Yes, Android 13
CPU	8-Core:
Storage	64 GB
RAM	8 GB DDR4
OS Compatibility	Computer: Windows / macOS / Linux / Chrome OS Mobile: Android/iOS
Media Card Reader	1x microSD (Unspecified Type)
Built-In Mic	Yes

Webcam

User-Facing: 8.3 MP (4K)

Power Consumption	Typical: 105.0 W Standby: < 0.5 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

Operating Conditions	41 to 95°F / 5 to 35°C at 5 to 80% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C
Certifications	CB, CE, ENERGY STAR, FCC, RCM, REACH, RoHS, UKCA, UL, WEEE
VESA Mounting-Hole Pattern	800 x 400 mm
Lighting Lifespan	50000 Hours
Impact Resistance	No
Dimensions	68.7 x 42.4 x 4.3" / 174.6 x 107.8 x 10.9 cm 68.7 x 43.9 x 4.3" / 174.6 x 111.6 x 10.9 cm (with Camera)
Weight	123.5 lb / 56 kg

Package Weight	158 lb
Box Dimensions (LxWxH)	73 x 45 x 7"
